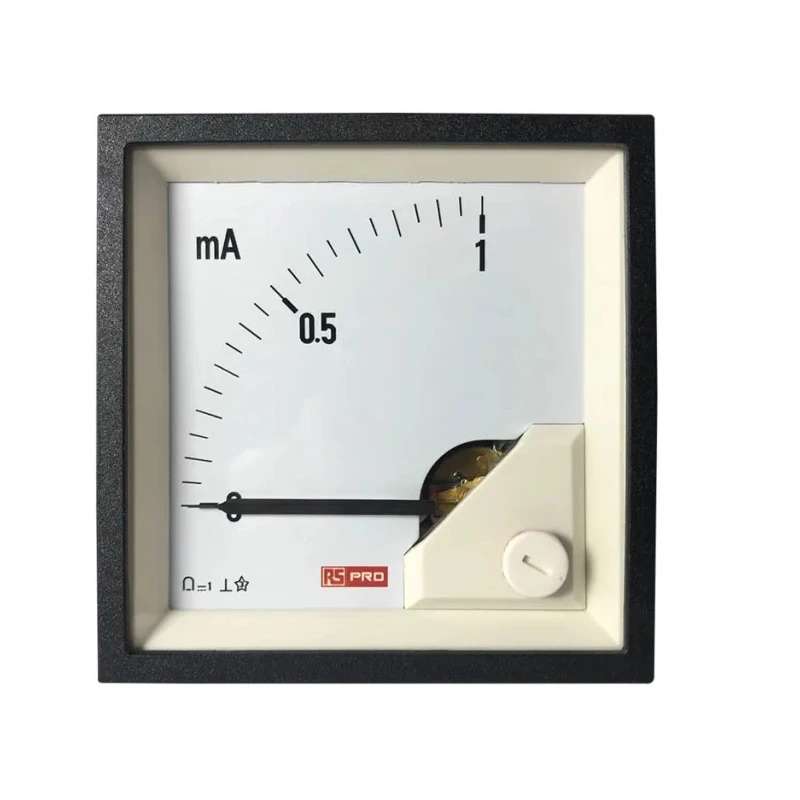

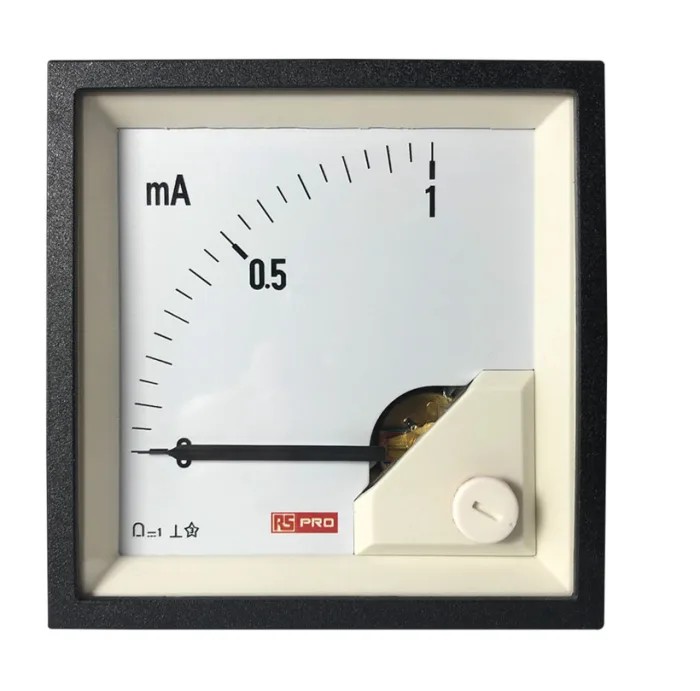

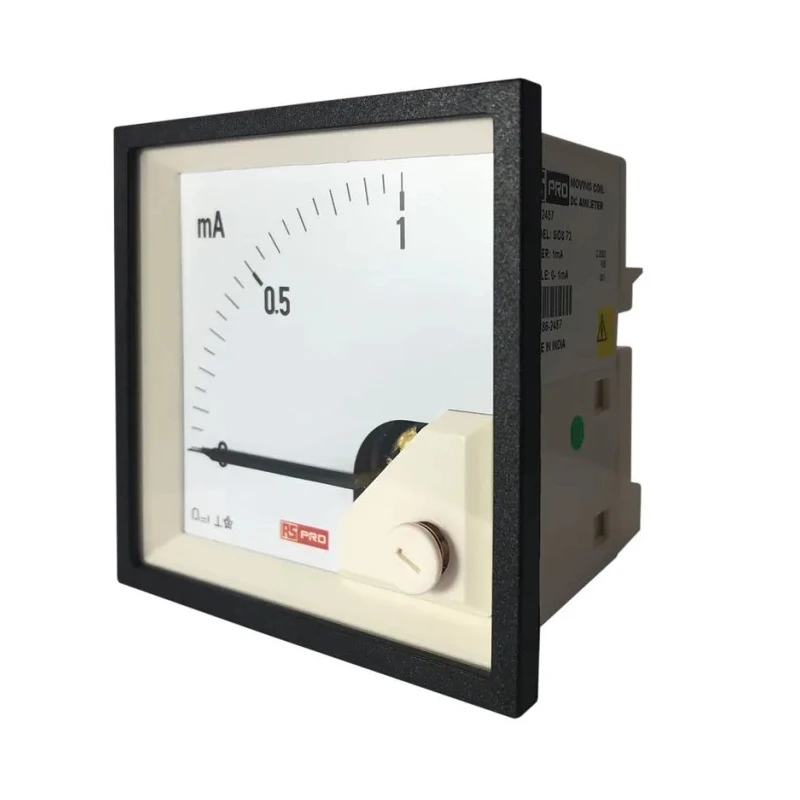

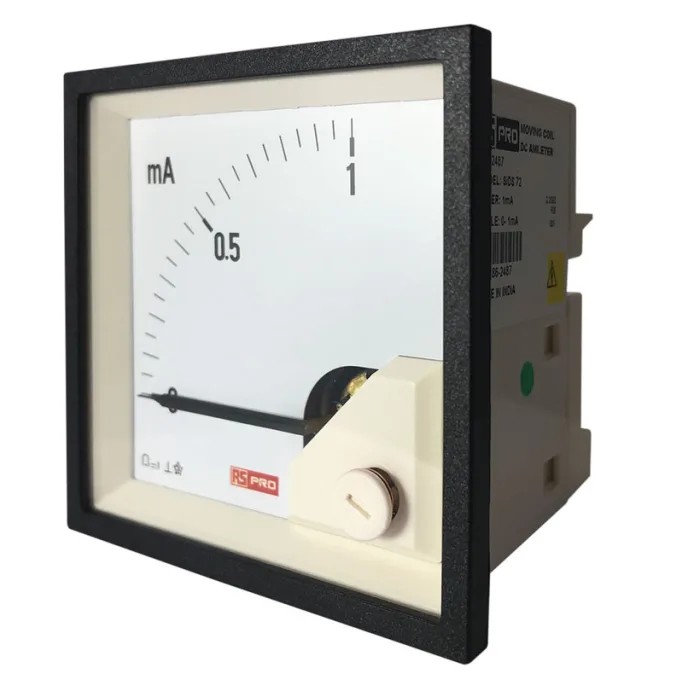

RS PRO Analogue Panel Ammeter 1 mA DC, 68 mm x 68 mm, 1 % Moving Coil 186-2487
Specifications
| Country of Origin | India |
|---|---|
| Relative Humidity | Less than 75% annual average (noncondensing) |
| Brand | RS PRO |
| Model | 186-2487 |
| Depth | 54mm |
| Maximum Operating Temperature | 65°C |
| Current Type | DC |
| Pointer | Knife-edge type |
| Meter Accuracy | 1 % |
| Minimum Operating Temperature | -10°C |
| Shock Resistance | 15g for pulse duration 11 milliseconds |
| Overload | 1.2 times nominal current (continuous) |
| Standards/Approvals | DIN IEC 61554, DIN 43718, ISO 20653:2006-08, VDE / VDI 3540, 93/68/EEC, DIN 43807, VDE 0100-410:2018-10, IEC51/DINEN60051, 2014/35/EC, 2014/30/EC, DIN 46200/46282, IEC 61010, DIN 43802, EN 61010, IEC 529, UL 94 V-0, DIN 43701 |
| Cutout Height | 68mm |
| Cutout Width | 68mm |
| Maximum Measurement | 1000 V ac, 600 V dc |
| Moving Element | Moving Coil |
| Maximum Ampere Value | 1 mA |
| Pointer deflection | 0° to 90° |
| VDE 0100-410 | 2018-10 approved |
| ISO 20653 | 2006-08 |
| Nominal range of use | 15uA to 100A |
| Standards/ApprovalsDIN IEC 61554, DIN 43718, ISO 20653 | 2006-08, VDE / VDI 3540, 93/68/EEC, DIN 43807, VDE 0100-410:2018-10, IEC51/DINEN60051, 2014/35/EC, 2014/30/EC, DIN 46200/46282, IEC 61010, DIN 43802, EN 61010, IEC 529, UL 94 V-0, DIN 43701 |
Key Features
- Features a moving coil mechanism for accurate analog current display.
- Meter accuracy is 1%, ensuring reliable readings.
- Cutout dimensions of 68 mm height and 68 mm width fit standard panel mounts.
- Operating temperature range from -10°C to 65°C supports diverse industrial applications.
- Knife-edge type pointer deflection spans 0° to 90° for clear reading.
- Designed for shock resistance of 15g with 11 ms pulse duration.
- Overload capacity supports continuous 1.2 times nominal current.
- The moulded square case is suitable for control and switchgear panels.
Product Description
RS PRO 186-2487 Analogue Panel Ammeter is a highly accurate 1 mA DC panel meter designed for industrial automation and control applications. Compact with a cutout size of 68 mm x 68 mm and a depth of 54 mm, it fits seamlessly into control panels and machinery consoles.
Featuring a moving coil movement, the meter provides linear and calibrated scale readings for precise current monitoring. Its robust design includes a molded polycarbonate square case suitable for panel mounting and shock resistance up to 15g for reliable operation in harsh environments.
The instrument is capable of measuring currents ranging nominally from 15 µA up to 100 A using external shunts, offers a meter accuracy of 1%, and operates reliably over a temperature range of -10°C to 65°C. The knife-edge pointer allows smooth deflection from 0° to 90°, enhancing the readability of measurements.
This ammeter complies with multiple international standards such as DIN IEC 61554, IEC 61010, and VDE 0100-410, and it is UL 94 V-0 approved for flame resistance. The device also features IP52 protection, making it suitable for applications where dust and water exposure is a concern.
Applications span across industrial manufacturing, electrical control panels, HVAC systems, laboratory instrumentation, and process control environments requiring precise DC current measurements.
Features a moving coil mechanism for accurate analog current display. Meter accuracy is 1%, ensuring reliable readings. Cutout dimensions of 68 mm height and 68 mm width fit standard panel mounts. Operating temperature range from -10°C to 65°C supports diverse industrial applications.
Knife-edge type pointer deflection spans 0° to 90° for clear reading. Designed for shock resistance of 15g with 11 ms pulse duration. Overload capacity supports continuous 1.2 times nominal current. The moulded square case is suitable for control and switchgear panels.
Complies with multiple international standards including DIN IEC 61554 and IEC 61010. IP52 rating offers protection against dust and dripping water.
This product is proudly made in India, ensuring quality and reliability in every unit. Explore more reliable and precise panel meters and electrical automation components at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can measure currents ranging from 15 µA to 100 A when used with external shunts.
The cutout dimensions for this ammeter are 68 mm in height and 68 mm in width, suitable for standard panel mounts.
It has a meter accuracy of 1%, ensuring reliable readings for current measurements.
The operating temperature range is from -10°C to 65°C, making it suitable for various industrial applications.
The knife-edge type pointer deflection spans from 0° to 90°, providing clear visibility of the measurements.
It is designed to withstand shock resistance of 15g with a pulse duration of 11 milliseconds.
The ammeter supports continuous overload capacity of 1.2 times the nominal current.
The ammeter features a moulded polycarbonate square case, suitable for panel mounting in control and switchgear applications.
It complies with multiple standards including DIN IEC 61554, IEC 61010, and is UL 94 V-0 approved for flame resistance.
The maximum operating voltage is 1000 V AC and 600 V DC, allowing for versatile applications.
The relative humidity tolerance is less than 75% annual average (non-condensing).
This product is proudly made in India, ensuring quality and reliability in every unit.
