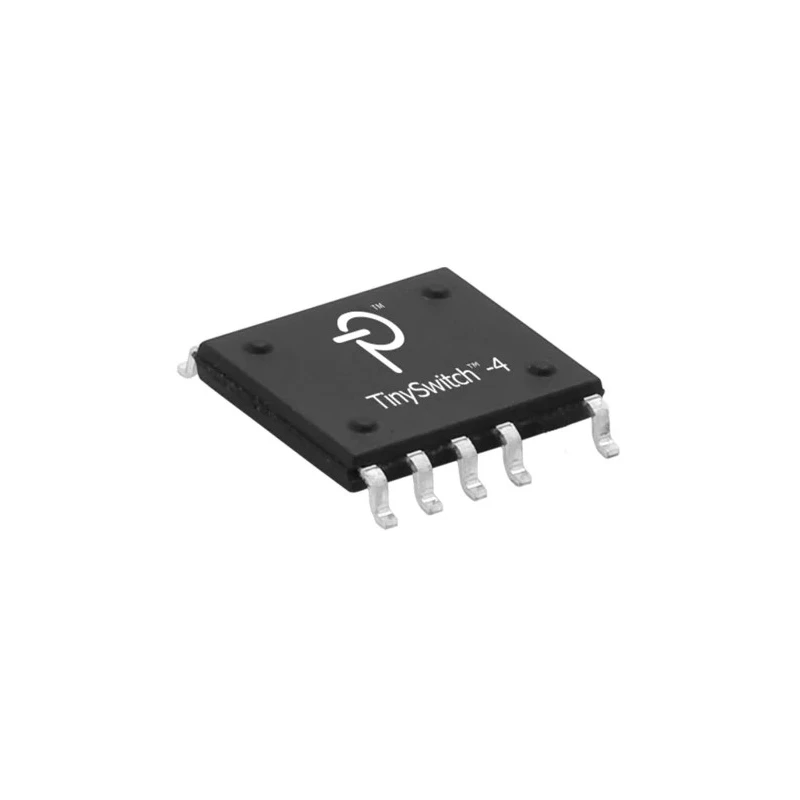

Power Integrations AC/DC Converter 750 mA 50 V 11-Pin eSOP-12B TNY284KG-TL

Power Integrations TNY284KG-TL is an advanced AC/DC Converter rated for 750 mA output current and 50 V minimum output voltage presented in an 11-pin eSOP-12B surface mount package. It is ideally suited for low power applications such as PC standby power supplies, auxiliary supplies, DVD/PVR equipment, and set top box decoders.

This integrated device features a power MOSFET, oscillator, high-voltage switched current source and thermal shutdown circuit. The flyback topology design provides high energy efficiency with a maximum output power of 5 W and a duty cycle capped at 67%.

Operating reliably in extreme environments, the converter supports input voltage ranging from 85 V to a maximum of 265 V and can function in temperatures from -40°C up to 150°C. Its compact dimensions (10.83 mm length, 11.68 mm width, and 2.49 mm height) allow space-saving PCB layouts while its 400 μA supply current optimizes power consumption.

The TinySwitch-4 series device offers tight I2F parameter tolerance, minimizing overall system cost and component count. The eSOP-12B package type enhances ease of integration for surface mount technology designs.

Supports maximum input voltage of 265 V for robust operation. Provides 5 W output power with flyback topology for efficient power conversion. Operates within temperature range from -40°C to 150°C. Compact dimensions with 10.83 mm length, 11.68 mm width, and 2.49 mm height.

Includes built-in power MOSFET and thermal shutdown circuitry enhancing reliability. Consumes low supply current of 400 μA minimizing power losses. Designed for PC standby, auxiliary power supplies, DVD/PVR devices, and set top decoders.

Has a maximum duty cycle of 67% enabling stable switching performance. Package type eSOP-12B ensures easy surface mount assembly and space saving on PCB. Series belongs to TinySwitch-4 providing tight I2F parameter tolerance reducing system cost.

This product is suited for industrial and electronic applications requiring compact, energy-efficient AC/DC power conversion. It supports design simplification and reduces component count and space on printed circuit boards.
