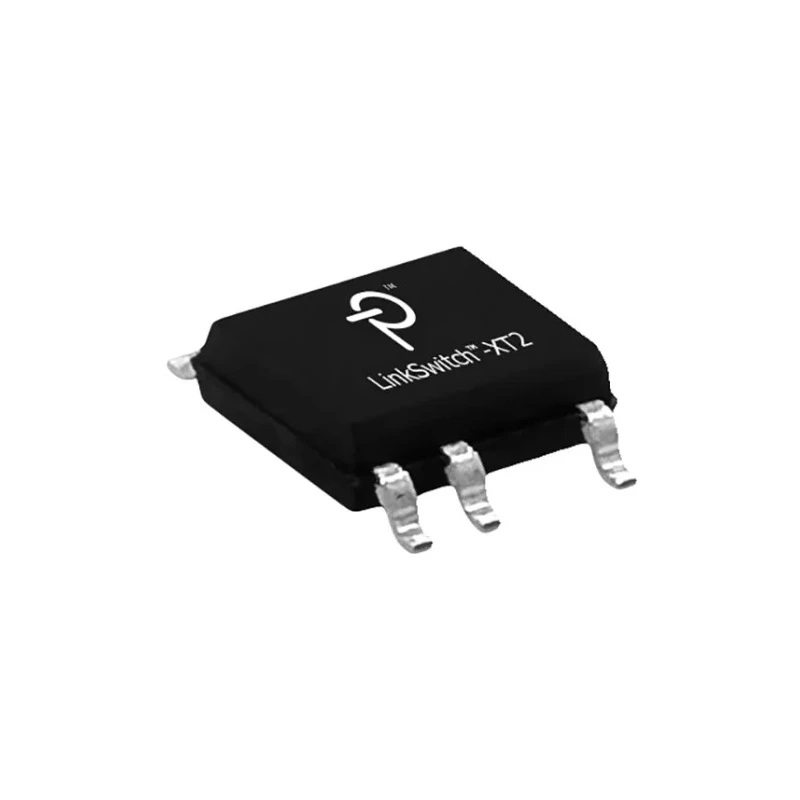

Power Integrations AC/DC Converter 1.23 A 5V AC 50 V 8-Pin Surface Mount LNK3696P

Power Integrations LNK3696P AC/DC Converter is a highly integrated, low-component-count surface mount device designed for efficient power management in electronic systems. It supports wide input voltage ranges from 85V AC to 265V AC and provides a regulated output voltage of 5V AC with a maximum output current of 1.23A. The device employs flyback topology, which enhances compactness and reliability while simplifying PCB heat sinking with its 8-pin surface mount package.

This converter effectively reduces electromagnetic interference through frequency jittering and meets global RoHS compliance standards, making it environmentally friendly and suitable for diverse industrial and commercial electronic applications. The operating temperature range from -40°C to 150°C permits use in harsh conditions, including HVAC systems and industrial automation.

The LNK3696P features built-in auto-restart for short circuit and open loop protection, along with output overvoltage and input overvoltage line protection, ensuring system safety and longevity. Extended creepage distances improve field reliability and compliance with safety standards. It also benefits from a 725 V MOSFET rating capable of withstanding surge conditions, providing additional robustness.

Its compact dimensions (9.83 mm length, 6.6 mm width, and 3.68 mm height) allow for efficient design integration in dense electronic assemblies. The frequency jittering feature also minimizes EMI, facilitating compliance with electromagnetic compatibility requirements.

This device supports maximum input voltage of 265V AC and minimum input voltage of 85V AC. Output power rating is 6.1 W with a maximum output current of 1.23 A. It operates at a switching frequency of 132 kHz and offers selectable device current limit.

Includes integrated auto-restart protection for short-circuit and open-loop events. Overvoltage protection and improved creepage distances enhance device durability and safety. Suitable for industrial, laboratory, and commercial power management applications.

Meets RoHS environmental compliance standards.

This product is ideal for engineers and designers requiring a compact, reliable AC/DC power converter solution with built-in safety and efficiency features. Browse EnvMart AC/DC Converters category for more Power Integrations products and related semiconductor power management components.
