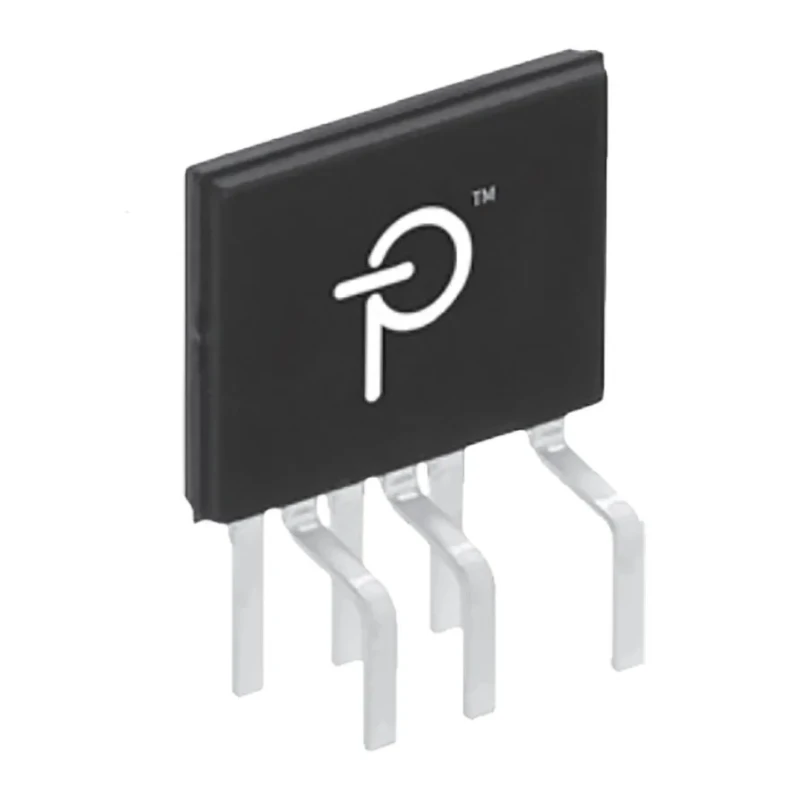

Power Integrations AC/DC Converter 7A 5V dc 6-Pin eSIP-7C TOP268EG

Power Integrations TOP268EG is a high-performance AC/DC converter designed to deliver up to 7A output current with a regulated 5V DC output voltage. Packaged in a 6-pin eSIP-7C form factor, it integrates a high voltage power MOSFET, switched current source, multi-mode PWM controller, oscillator, and protection circuitry within a compact through-hole mount package.

This converter supports a wide input voltage range from 85V AC minimum to 265V AC maximum, making it adaptable for numerous power line conditions globally. It achieves a maximum output power of 43W using a flyback topology and operates at a switching frequency of 132kHz, enabling efficient energy conversion and compact external component design.

The device operates under harsh temperature conditions from -40°C up to 150°C, suitable for demanding industrial and power management applications. Its maximum duty cycle of 83% assists in achieving consistent output performance. With a supply current of just 1mA during operation, it is optimized for low power consumption in no-load conditions.

The TOPSwitch-JX series, to which this model belongs, is recognized for offering cost-effective, high integration, and simplified offline AC-DC converter solutions. The compact package dimensions of 10.24mm length, 8.25mm height, and 2.06mm width facilitate easy integration on printed circuit boards with limited space.

Typical applications include industrial electronic components, power management ICs, and various electronic devices requiring stable 5V DC power from AC mains. This product lacks automotive certification but provides robust and energy-efficient power conversion for commercial and industrial electronic designs.

Supports input voltage range from 85V AC to 265V AC. Delivers output power of up to 43W with flyback topology. Features high switching frequency of 132kHz for efficient operation. Compact 6-pin eSIP-7C through-hole package.

Wide operating temperature from -40°C to 150°C. Integrated high-voltage MOSFET and multi-mode PWM controller. Low supply current of 1mA reduces power consumption. Maximum duty cycle of 83% ensures stable output. Suitable for industrial and power management applications.

Part of the TOPSwitch-JX series known for cost-effective AC-DC solutions. Explore more Power Integrations AC/DC Converters and power management solutions on EnvMart for enhanced industrial and electronic component design efficiency.
