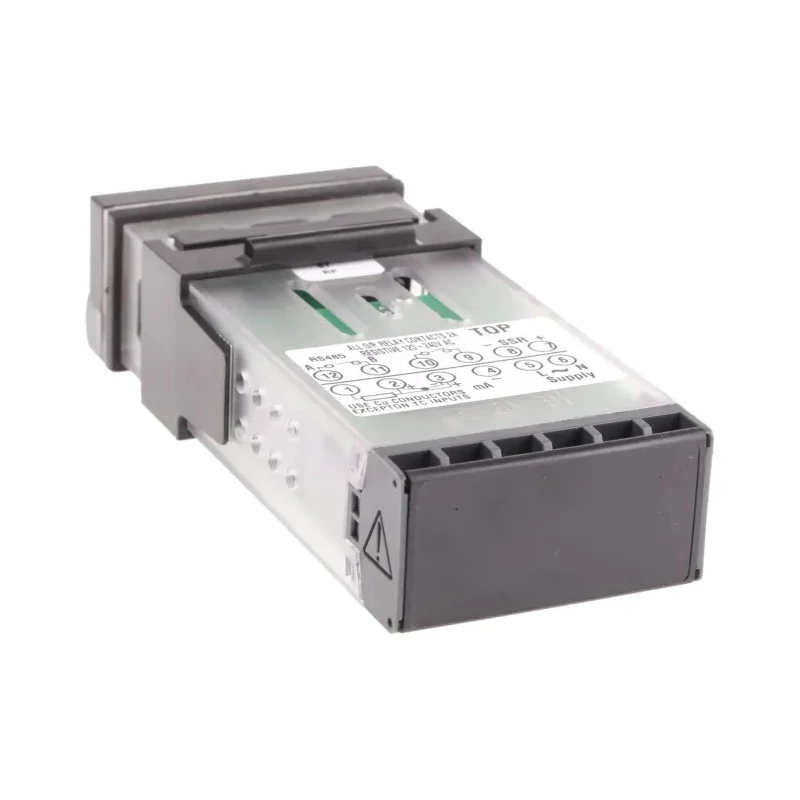

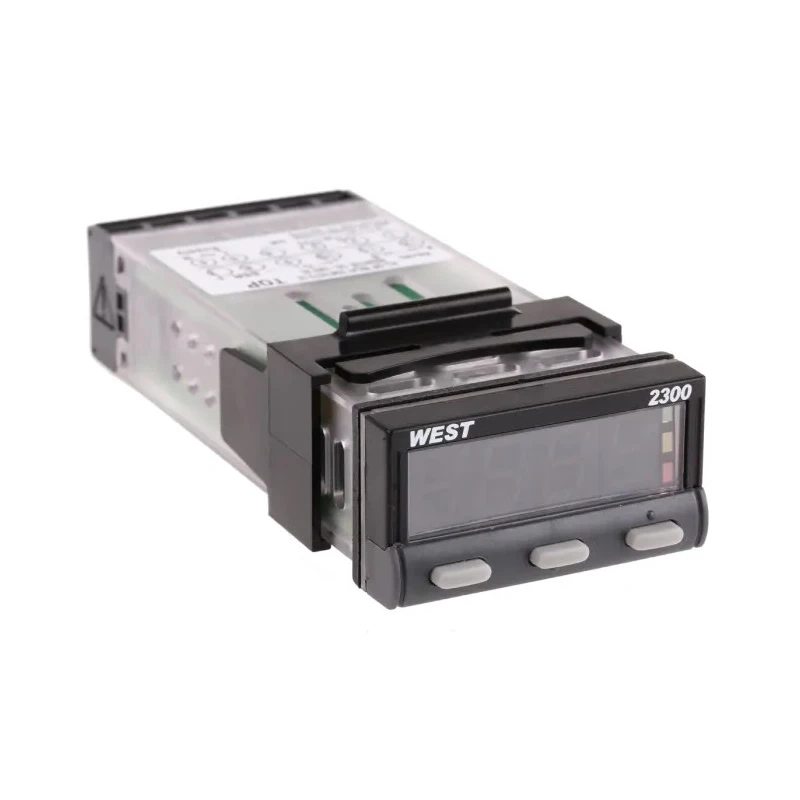

West Instruments N2300 Panel PID Temperature Controller 1 Input, 2 Output Relay SSR 240V AC On-Off N2300Y1210

West Instruments N2300Y1210 Panel PID Temperature Controller is a high-precision control device designed for industrial and process automation applications requiring accurate temperature regulation. It features a single 3-wire PT100 temperature sensor input and dual outputs which can be configured as relay or solid-state relay (SSR), rated up to 2A maximum current. The device operates on a 100 to 240VAC supply voltage and includes advanced PID control with a hands-free tuning algorithm that continuously adjusts parameters to optimize temperature control. This functionality is complemented by the option for manual tuning to accommodate specialized applications.

The controller is equipped with a bright LED display showcasing large green digits for easy readability, supported by three additional multi-colour LEDs indicating process status, alarms, and configuration modes. User interaction is enhanced via large tactile rubberized keys providing a practical and ergonomic interface. Designed for panel mounting, it measures 24mm in width, 48mm in length, and fits within a panel depth of 110mm.

Robustness is assured with IP66 and IP20 ingress protection ratings, allowing installation in environments where dust or water ingress may occur. The operating temperature range from 0°C to 55°C enables reliable performance across various industrial conditions. Integration with digital control systems is facilitated by RS485 communication protocol support.

This controller's typical industrial applications include baking, curing of rubber, drying or evaporating solvents from painted surfaces, and heat treatment of metals, ensuring tight process control in demanding settings. It is manufactured to meet stringent compliance requirements including UL, CE, and ULC approvals, guaranteeing safety and reliability.

Hands-free easy tune PID algorithm ensures precise temperature regulation. Single 3-wire PT100 input and dual output relays or SSR for versatile control. Large green LED digital display with multi-colour LEDs for process and alarm status.

Compact panel mount form factor with IP66 and IP20 ratings for environmental protection. Supports RS485 digital communication for integration into automation networks. Operates on 100 to 240VAC supply voltage with maximum 2A current load.

Suitable for industrial thermal processing such as baking and curing. Provided with tactile rubberized keys for enhanced user interaction. Certified by UL, CE, and ULC standards for quality assurance.

This West Instruments temperature controller is ideal for electronics, automation, manufacturing, HVAC, and laboratory environments requiring reliable and accurate temperature regulation. Explore EnvMart's comprehensive temperature controller category for more advanced process control instruments and solutions to optimize your industrial workflows.
