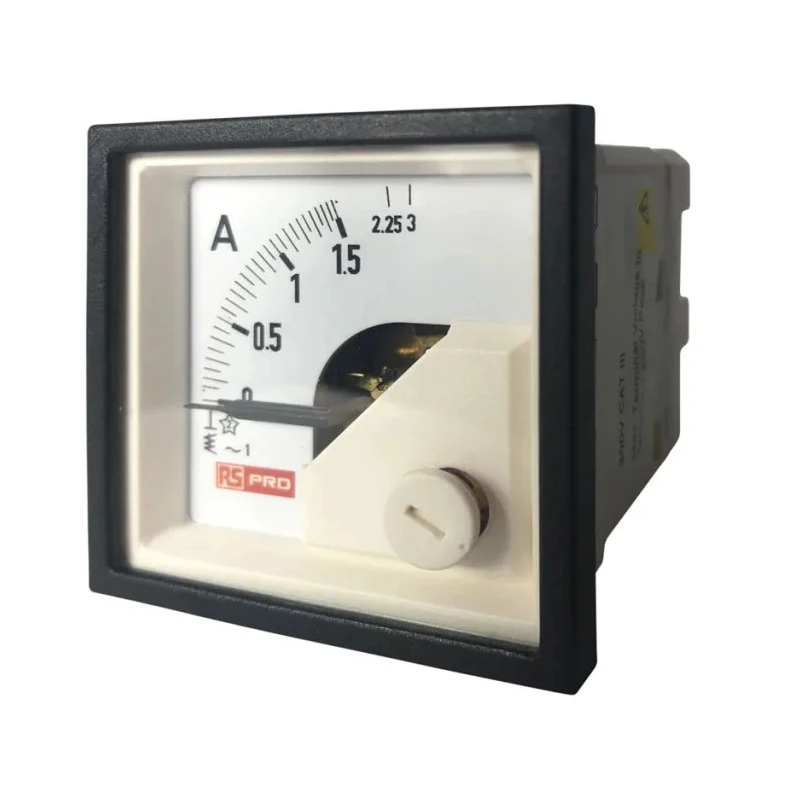

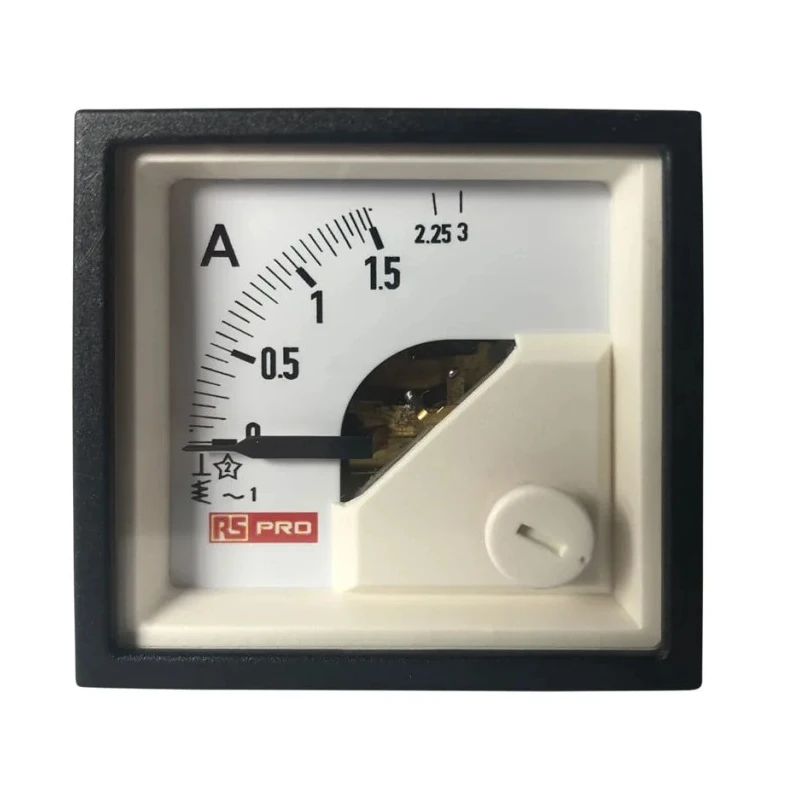

RS PRO Analogue Panel Ammeter 3 A AC, 45 mm x 45 mm, 1% Accuracy Moving Iron 186-2417

RS PRO 186-2417 Analogue Panel Ammeter is a precision measuring instrument designed for the accurate monitoring of AC current up to 3 A. Featuring a moving iron moving element, this Analogue Panel Ammeter delivers 1% meter accuracy with a knife-edge pointer that sweeps from 0° to 90°, allowing easy and clear reading of true RMS values. It is engineered for robustness with a moulded polycarbonate square case fitting a standard 45 mm x 45 mm cut-out, making it ideal for control panels and switchgear in diverse industrial equipment.

This ammeter operates reliably over a temperature range of -10°C to 65°C and is capable of measuring AC current in a frequency range of 15Hz to 400Hz. Its overload capacity supports 2 times the nominal current continuously, making it suitable for applications subject to motor inrush currents. Designed to withstand shock loads up to 15 g for 11 milliseconds pulse durations, this instrument maintains stable operations in challenging industrial conditions.

The instrument meets a wide array of international standards such as DIN 43718, IEC 529, IEC 61010, UL 94 V-0, CE marking, VDE 0100-410, ISO 20653 for ingress protection among others, assuring compliance with safety and electromagnetic compatibility regulations. Its relative humidity tolerance of less than 75% (noncondensing) further supports long term durability in industrial environments.

This RS PRO ammeter is perfectly suited for industrial, manufacturing, automation, HVAC, and laboratory settings requiring accurate AC current measurement. The compact size and robust design allow for easy integration into control panels, machinery consoles, and monitoring systems, facilitating real-time process control and preventative maintenance.

Measures AC current from 0A up to 3A with 1% accuracy. Compact 45 mm x 45 mm cut-out size suitable for panel mounting. Robust moulded polycarbonate case provides durability in harsh industrial environments. Operating temperature range from -10°C to 65°C ensures reliable performance.

Knife-edge pointer offers precise needle deflection between 0° to 90°. Supports frequency range from 15 Hz to 400 Hz for versatile AC current monitoring. Overload capacity of 2 times nominal current continuous operation protects the meter.

Shock resistance up to 15g enhances durability against mechanical impacts. Relative humidity tolerance less than 75% annual average, noncondensing. Certified to international standards including UL 94 V-0, IEC, VDE, CE, and ISO.
