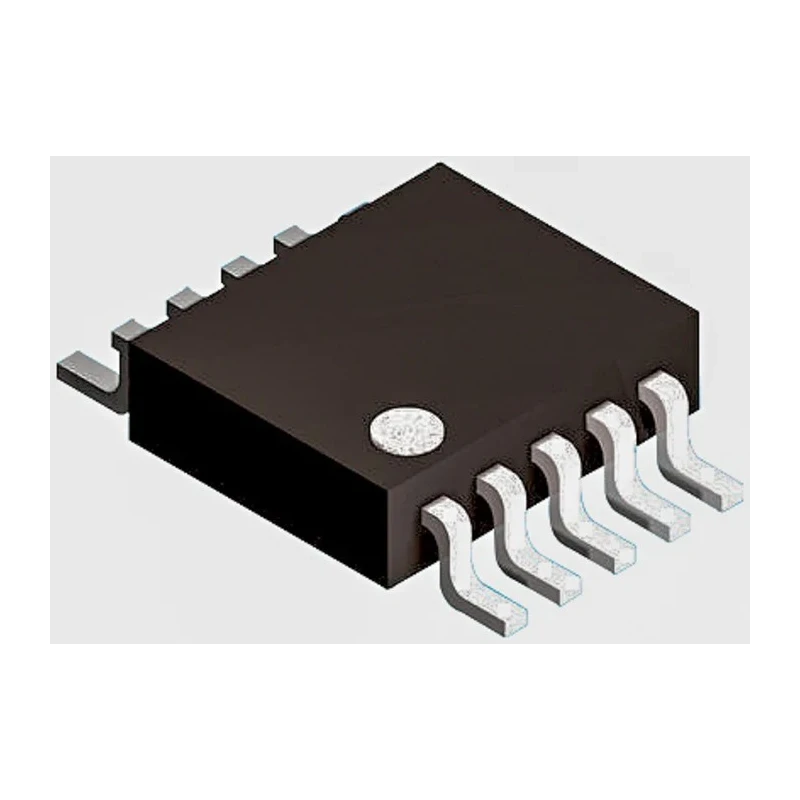

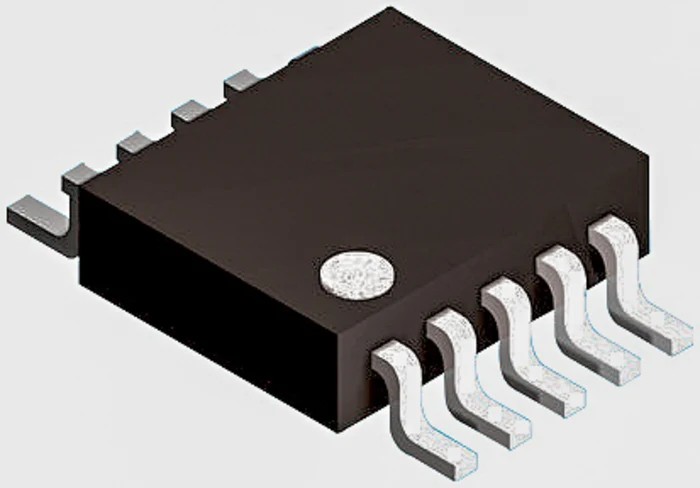

STMicroelectronics AC/DC Converter 5V 10-Pin SSOP VIPER013XSTR
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.5mm |
| Length | 5mm |
| Model | VIPER013XSTR |
| Width | 4mm |
| Output Power | 8.6mW |
| Mount Type | Surface |
| Maximum Duty Cycle | 80% |
| Series | VIPER01 |
| Topology | Flyback |
| Maximum Operating Temperature | 150°C |
| Package Type | SSOP |
| Minimum Operating Temperature | -40°C |
| Switching Frequency | 120kHz |
| Maximum Input Voltage | 30V |
| Maximum Output Voltage | 5V |
| Minimum Input Voltage | 4.5V |
| Pin Count | 10 |
| Supply Current | 1.25mA |
| Protections with automatic restart | overload/short-circuit (OLP), line or output OVP, max. duty cycle counter, VCC clamp |
Key Features
- Operates with maximum input voltage of 30V and output voltage of 5V.
- Output power rated at 8.6mW with surface mount type installation.
- Contains 10 pins in an SSOP package ensuring compact size with dimensions 5mm length, 4mm width, and 1.5mm height.
- Features a switching frequency of 120kHz and flyback topology for reliable performance.
- Suitable for operating temperatures from -40°C to 150°C ensuring wide application range.
- Includes protection features such as overload and short-circuit automatic restart and pulse-skip protection.
- Low supply current of 1.25mA supports energy-efficient designs.
- Compliance with standard industrial specifications, no automotive certification.
Product Description
STMicroelectronics VIPER013XSTR is a high-voltage AC/DC converter designed with an integrated 800V avalanche-rugged MOSFET and a leading edge PWM controller.
This device is optimized for efficient switched-mode power supply (SMPS) applications up to 7W with ultra-low standby power consumption suitable for energy-saving regulatory compliance.
The 10-pin SSOP package measures 5mm in length, 4mm in width, and 1.5mm in height, making it compact for modern electronic circuits requiring surface mount assemblies. The converter operates with a maximum input voltage of 30V and delivers a regulated 5V output at 8.6mW power with a switching frequency of 120kHz using flyback topology.
Designed for robustness, it features protections including overload, short-circuit with automatic restart, output overvoltage, max duty cycle counter, and thermal shutdown for enhanced reliability.
Maximum input voltage: 30V. Maximum output voltage: 5V. Output power: 8.6mW. Package type: 10-pin SSOP. Switching frequency: 120kHz. Operating temperature range: -40°C to 150°C. Supply current: 1.25mA. This AC/DC converter finds applications in industrial, electronics manufacturing, and power management circuits where compact size and energy efficiency are critical.
Its embedded protections and soft-start functionality improve system reliability in challenging electrical environments. Use STMicroelectronics VIPER013XSTR AC/DC Converter for designing next-generation power supplies that demand low standby consumption, high efficiency, and thermal resilience.
Explore a range of power management ICs at EnvMart to find components suited for diverse industrial and semiconductor applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input voltage for this model is 30V.
It delivers a regulated output voltage of 5V.
The output power is rated at 8.6mW.
The switching frequency is 120kHz.
The package dimensions are 5mm in length, 4mm in width, and 1.5mm in height.
It operates within a temperature range of -40°C to 150°C.
It includes overload and short-circuit protection with automatic restart, output overvoltage protection, and thermal shutdown.
The supply current is 1.25mA, supporting energy-efficient designs.
This model uses flyback topology for its operation.
The minimum input voltage is 4.5V.
The maximum duty cycle is 80%.
It is suitable for applications in industrial, electronics manufacturing, and power management circuits.
