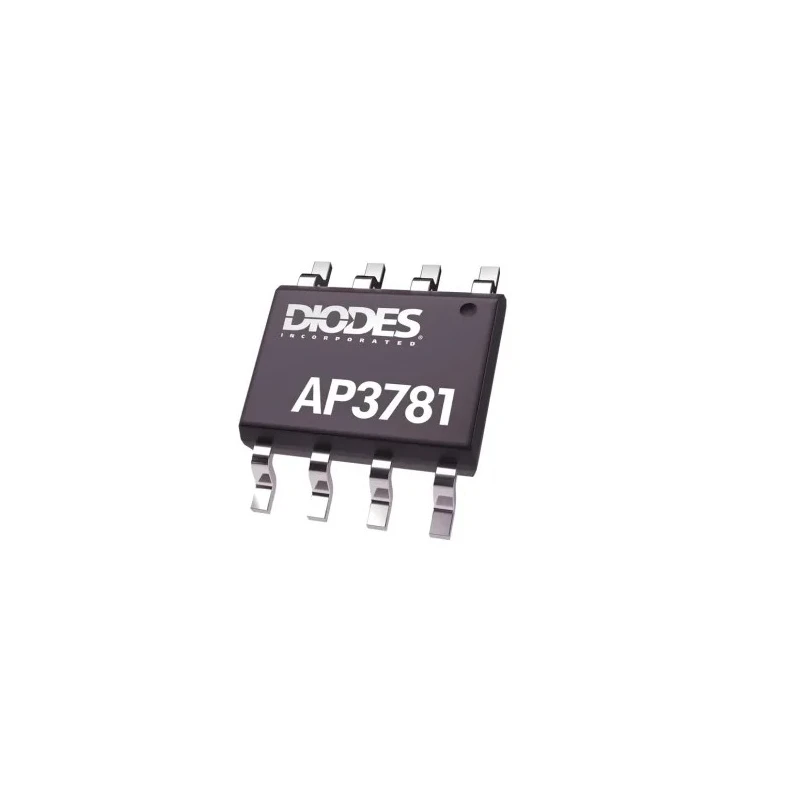

DiodesZetex Power Supply Controller 5-Channel 8-Pin Surface Mount SO-8 20kHz Switching Frequency AP3781S-13
Specifications
| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Height | 1.45mm |
| Length | 4.9mm |
| Model | AP3781S-13 |
| Mount Type | Surface |
| Series | AP3781 |
| Maximum Operating Temperature | 150°C |
| Package Type | SO-8 |
| Sub Type | Power supply Controller |
| Minimum Operating Temperature | -40°C |
| Switching Frequency | 20kHz |
| Maximum Input Voltage | 8V |
| Minimum Input Voltage | -0.3V |
| Pin Count | 8 |
Key Features
- The controller regulates output voltage and current using pulse frequency modulation.
- Suitable for battery charger and adapter power supply designs.
- Offers external adjustable over temperature protection for enhanced safety.
- Compact SO-8 surface mount package measuring 4.9mm length and 1.45mm height.
- Operates reliably from -40°C to 150°C ambient temperature range.
- Supports maximum input voltage of 8V and minimum input voltage of -0.3V.
- Surface mount technology allows for automated PCB assembly.
- Designed for primary side control eliminating the need for opto-coupler.
Product Description
DiodesZetex AP3781S-13 is a high-performance power supply controller IC designed for AC/DC power supply management in battery charger and adapter circuits. This device offers precise regulation of output voltage and current on the primary side through pulse frequency modulation in discontinuous conduction mode.
The controller comes in an 8-pin SO-8 surface mount package, with a compact length of 4.9mm and height of 1.45mm, enabling space-saving PCB layouts suitable for manufacturing and industrial electronic designs. It operates with a switching frequency of 20kHz, ensuring efficient power conversion and minimal noise generation.
Engineered to operate over a wide temperature range of -40°C to 150°C, the AP3781S-13 is suitable for challenging industrial and commercial environments. Its voltage input range spans from -0.3V to a maximum of 8V, facilitating versatile power management applications.
This controller implements primary side regulation eliminating the need for an opto-coupler, which enhances reliability and reduces component count. Additionally, it supports external adjustable over-temperature protection, safeguarding device and system integrity during fault conditions.
Typical use cases include industrial power supply systems, battery chargers, and electronic adapters for consumer and commercial products. The device’s compact form factor and surface mount compatibility make it ideal for modern electronics manufacturing and design.
The controller regulates output voltage and current using pulse frequency modulation. Suitable for battery charger and adapter power supply designs. Offers external adjustable over temperature protection for enhanced safety.
Compact SO-8 surface mount package measuring 4.9mm length and 1.45mm height. Operates reliably from -40°C to 150°C ambient temperature range. Supports maximum input voltage of 8V and minimum input voltage of -0.3V. Surface mount technology allows for automated PCB assembly.
Designed for primary side control eliminating the need for opto-coupler. Explore more in the Power Management ICs category on EnvMart for advanced solutions in voltage control and power regulation.
Explore more products in our Voltage Controller category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input voltage supported by this model is 8V.
It operates reliably at a minimum temperature of -40°C.
The switching frequency for this unit is 20kHz.
This model has a length of 4.9mm and a height of 1.45mm.
It utilizes surface mount technology, which allows for automated PCB assembly.
This controller operates within an ambient temperature range of -40°C to 150°C.
No, it is designed for primary side control, eliminating the need for an opto-coupler.
It is suitable for battery charger and adapter power supply designs, as well as industrial power supply systems.
This model has a pin count of 8.
It provides external adjustable over-temperature protection for enhanced safety.
This model is part of the AP3781 series.
The country of origin for this product is India.
