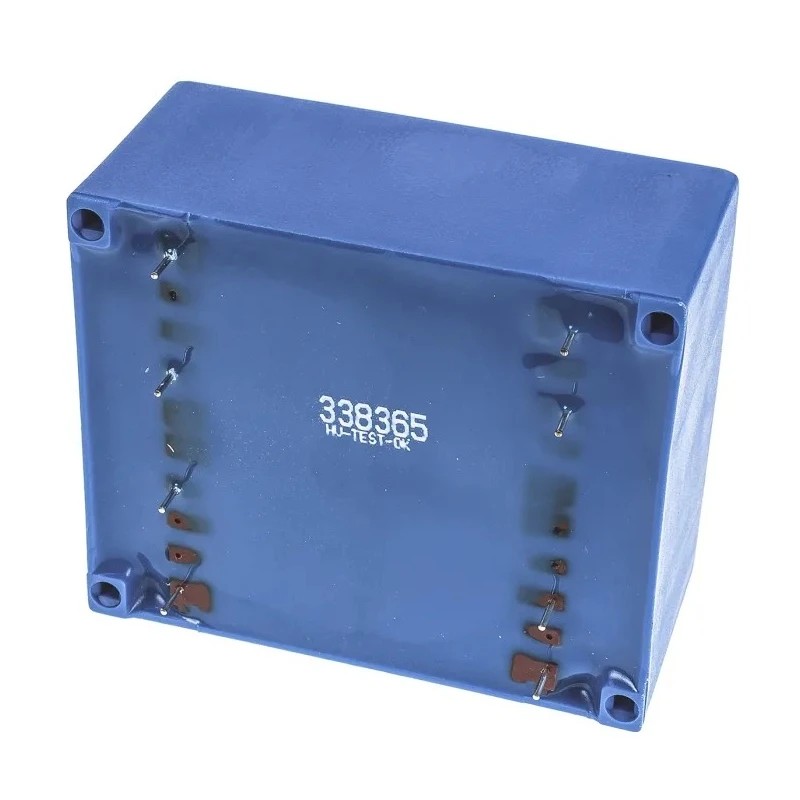

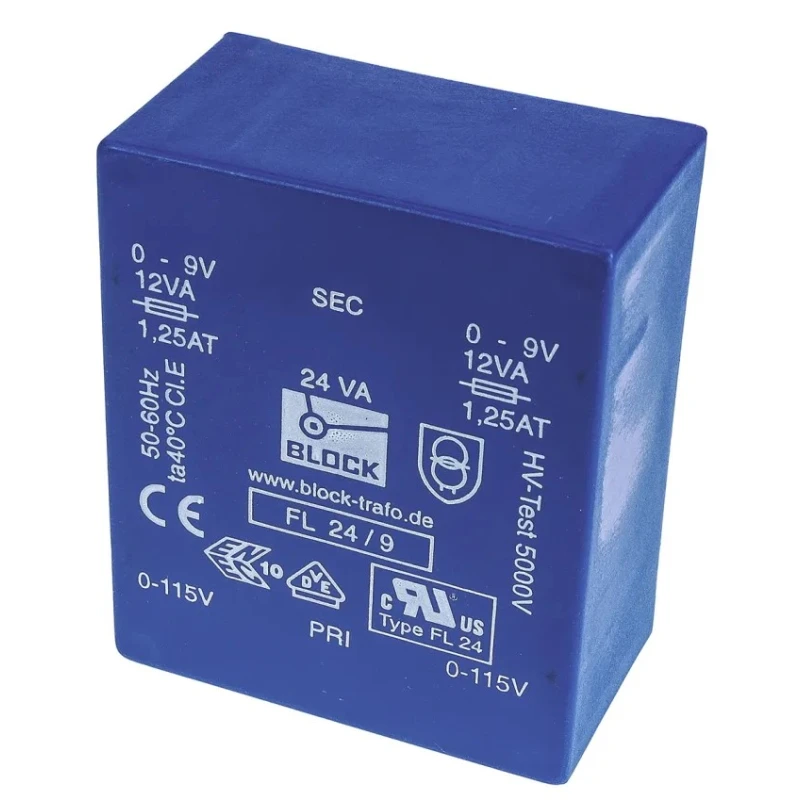

Block 9 V AC 2 Output Pin PCB Transformer, Dual Secondary Winding, 24VA, FL 24/9

Free Delivery in India | Lowest Global Shipping Charges

Block 9 V AC 2 Output Pin PCB Transformer, Dual Secondary Winding, 24VA, FL 24/9

Name: Block 9 V AC 2 Output Pin PCB Transformer, Dual Secondary Winding, 24VA, FL 24/9
Brand: Block
SKU: 163878
Price: 36.81 USD
Availability: InStock



Category PCB Transformer Brand Block Condition New

Specifications

Country of Origin	Germany
Brand	Block
Length	68mm
Model	FL 24/9
Depth	57mm
Gross Weight	980g
Width	31.4mm
Mount Type	Pin
Standard	EN60742, VDE 0551, IEC 61558
Series	FL
Maximum Operating Temperature	40°C
Number of outputs	2
Winding Type	Dual Secondary
Standards/Approvals	IEC 61558-2-1, VDE 0570 Teil 2-6, IEC 61558-2-4, ENEC 10 (VDE), UL 94 V-0, DIN EN 61558-2-6, DIN EN 61558-2-4, VDE 0570 Teil 2-1, IEC 61558-2-6, C-UL-US, DIN EN 61558-2-1, VDE 0570 Teil 2-4
Primary Voltage	115 V ac, 230 V ac
Secondary Voltage	9 V ac
Minimum Operating Frequency	50Hz
Maximum Operating Frequency	60Hz
RS PRO 2 x 9V ac 2 Output PCB Mount PCB Transformer, 24VABrand	RS PRO
Block 9 V ac 2 Output Through Hole PCB Transformer, UL, VDE 30 VABrand	Block

Key Features

Features twin 115 V AC primary windings for series or parallel connection at 50 to 60 Hz frequency.
Includes two secondary outputs with 9 V AC voltage each for flexible power supply configurations.
Compact low-profile design measuring 68 mm × 31.4 mm × 57 mm for efficient PCB mounting.
Constructed with vacuum epoxy resin moulded bobbins rated UL 94 V-0 for fire resistance and durability.
Certified to IEC 61558-2-1, VDE 0570 Teil 2-6, IEC 61558-2-4, and ENEC 10 standards ensuring safety and quality.
Operates reliably up to 40°C maximum temperature in industrial and commercial environments.
Low inter-winding capacitance and low radiated noise for stable electronic performance.
Ideal for use in electronic components, power supplies, and transformer applications requiring isolation and AC voltage conversion.

Product Description

Block FL 24/9 model PCB Transformer offers a dual secondary winding design with 2 outputs delivering 9 V AC each and a power capacity of 24VA. This dual winding transformer supports twin 115 V AC primary windings, enabling series or parallel connection suitable for both 115 V AC and 230 V AC mains supplies operating at 50 to 60 Hz.

The compact low profile transformer is designed for PCB mounting with precise dimensions of 68 mm length, 31.4 mm width, and 57 mm depth. Its vacuum epoxy resin moulded bobbins meet the UL 94 V-0 fire safety standard, combining electrical safety and durability. The transformer includes double section glass fibre reinforced polyamide bobbins ensuring robust construction with low inter-winding capacitance, providing minimal noise and superior electrical isolation.

Certified to meet rigorous standards including IEC 61558-2-1, VDE 0570 Teil 2-6, IEC 61558-2-4, ENEC 10, and UL 94 V-0, this transformer is engineered for dependable use in industrial, commercial, and laboratory power supply circuits.

Twin 115V AC primary windings for series or parallel connection. Dual 9 V AC secondary outputs with pin mount type. 24 VA power rating and low-profile design. Epoxy resin moulded UL 94 V-0 bobbins for fire resistance. Conforms to IEC, VDE, ENEC, and UL standards.

Compact dimensions facilitate efficient PCB integration. Certified and tested for electrical and flash safety. Low inter-winding capacitance for noise reduction.

This transformer is ideal for electronic components manufacturing, power supplies, and other electrical equipment requiring reliable AC voltage conversion and isolation. Its design supports robust industrial use in control panels, measurement instruments, and commercial electronic applications.
