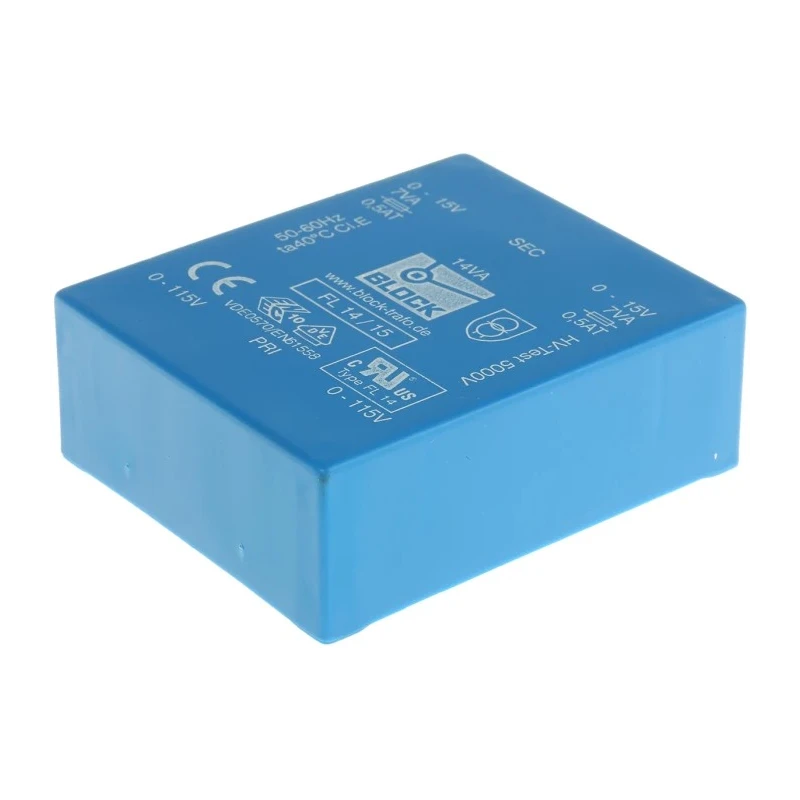

Block PCB Transformer Dual Secondary 15 V ac 2 Output Pin 115/230 V ac, 5000V Isolation FL 14/15

Block FL 14/15 is a meticulously designed PCB Transformer featuring dual secondary 15 V ac outputs and pin mount type ideal for low profile printed circuit board applications. It supports primary voltages of 115 V ac or 230 V ac with a frequency range of 50 to 60 Hz, making it versatile for various power supply configurations.

The transformer is encapsulated in vacuum epoxy resin, achieving the UL94-V0 flame retardant rating to ensure high safety standards. The double section glass fibre reinforced polyamide bobbins add to mechanical robustness and electrical insulation. Its construction allows for series or parallel connection of the twin secondary windings, providing design flexibility.

This unit undergoes thorough electrical and flash testing to guarantee reliability and safety in industrial, electronic components, and power distribution systems. With an isolation voltage of 5000 V and a maximum operating temperature of 40°C, it meets strict IEC and VDE standards including IEC 61558-2-1, DIN EN 61558-2-1, and VDE 0570 Teil 2-4 among others.

Additional features include low inter-winding capacitance which reduces noise interference and extra fixing holes for secure mounting on the PCB. Its compact size (68 mm length, 24.4 mm width, 57 mm depth) and weight (980 g) make it suitable for embedded transformer applications in electronic assemblies.

Equipped with dual secondary windings for series or parallel connection. Vacuum epoxy resin molding meets UL94-V0 flame retardant standards. Double section glass fibre reinforced polyamide bobbins ensure durability. Low inter-winding capacitance and radiated noise enhance performance.

Isolation voltage rating of 5000 V for enhanced safety. Suitable for operation between 50 Hz to 60 Hz frequencies. Maximum operating temperature rated at 40°C. Compact and low profile design optimized for PCB mounting. Compliant with IEC 61558-2-1, DIN EN 61558, VDE certifications, and UL standards.

Includes extra fixing holes for secure mounting onto electronic circuit boards.

This PCB Transformer is ideal for applications in electronics manufacturing, industrial power supplies, and specialized low voltage circuit requirements. It offers reliable performance, electrical safety, and ease of installation meeting international standards.
