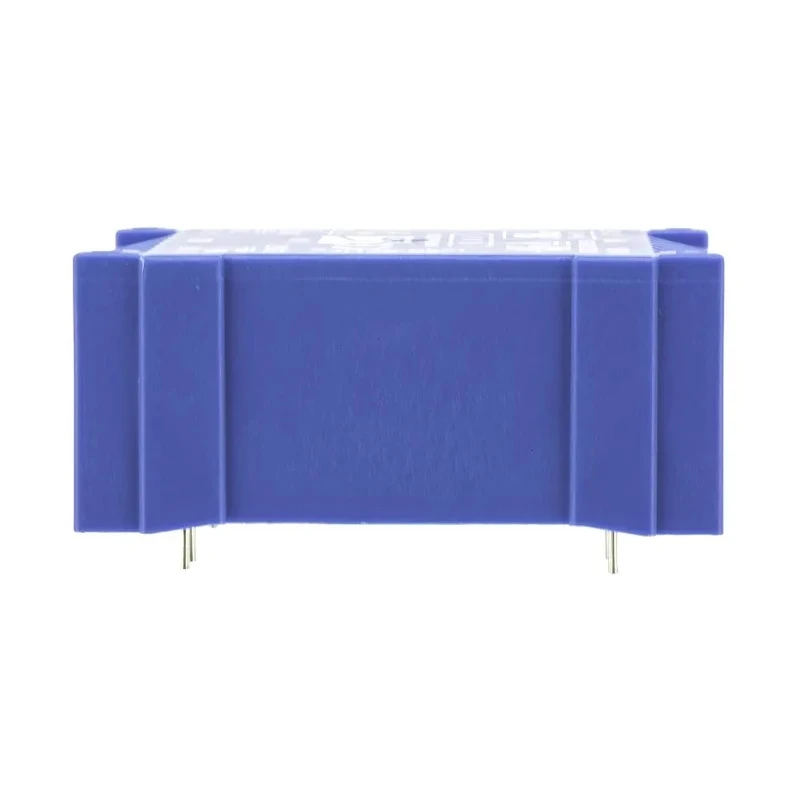

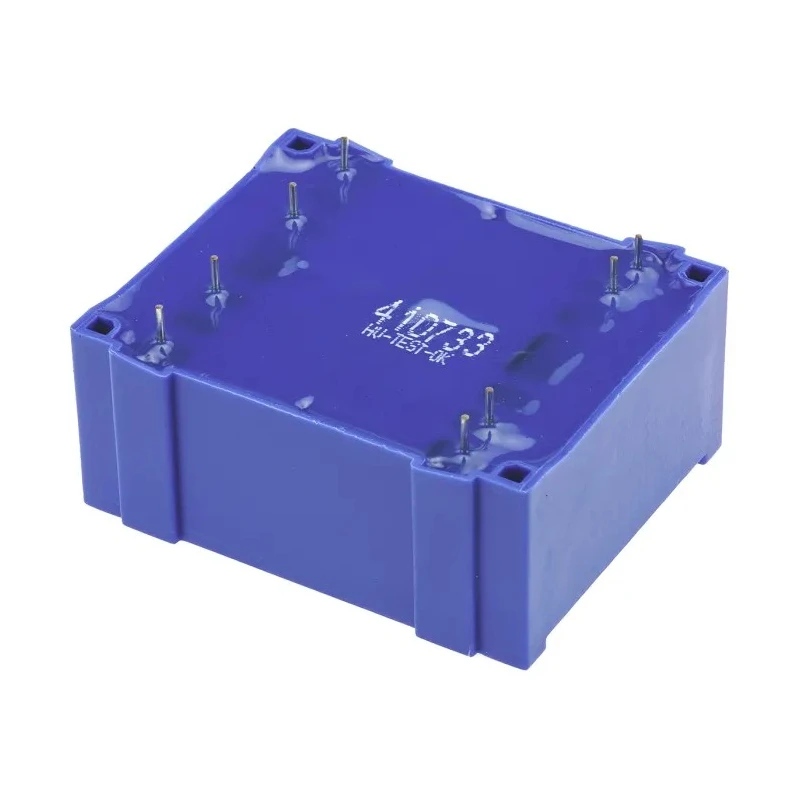

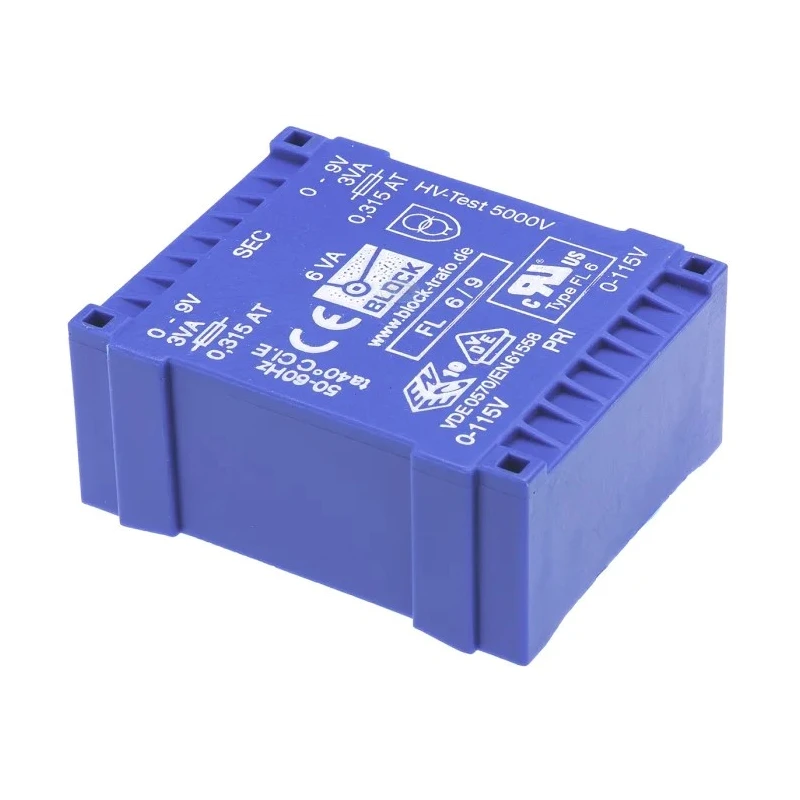

Block 9 V AC 2 Output Pin PCB Transformer, Dual Secondary Windings, Isolation Voltage 5000V, Compact Pin Mount Design FL 6/9

Block FL 6/9 is a 9 V AC 2 output pin PCB transformer engineered for industrial electronic applications requiring reliable power isolation and conversion. Featuring dual secondary windings, this low profile transformer supports primary inputs of 115 V AC or 230 V AC at frequencies from 50 to 60 Hz, allowing for flexible integration in diverse circuits.

The transformer’s compact construction utilizes vacuum epoxy resin moulding rated to UL94-V0 for enhanced flame retardancy, and double section glass fibre reinforced polyamide bobbins provide mechanical robustness. This ensures durability and long service life even in demanding environments. Operating temperature is rated up to 40°C, maintaining stability under typical industrial conditions.

Certified to international safety standards such as DIN EN 61558-2-4, VDE 0570 Teil 2-6, IEC 61558-2-6, and UL approvals, the Block FL 6/9 ensures compliance and trustworthy performance within manufacturing, automation, electronic assembly, and laboratory equipment. Its 5000 V isolation voltage offers excellent electrical separation to protect sensitive components and maintain circuit integrity.

Additional features include low inter-winding capacitance, which reduces electrical noise and improves signal clarity. The transformer is vacuum encapsulated for protection against moisture and contaminants. The extra fixing holes enable secure mounting to PCBs, vital for vibration resistant and reliable installations.

The FL series delivers efficient isolation and reliable secondary outputs to electronic devices requiring stable low voltage AC inputs. The transformer offers a secondary voltage of 9 V AC with two output pins. It supports primary voltages of 115 V AC and 230 V AC compatible with 50 to 60 Hz frequency.

Constructed with vacuum epoxy resin moulding providing UL94-V0 flame retardant rating. Designed to operate safely up to a maximum temperature of 40°C for reliable performance. Complies with multiple international standards including DIN EN 61558-2-4, VDE 0570 Teil 2-6, IEC 61558-2-6, and UL approvals.

Low inter-winding capacitance reduces electrical noise and interference during operation. Double section glass fibre reinforced polyamide bobbins enhance mechanical strength and durability. Includes extra fixing holes to ensure secure mounting on the PCB for industrial reliability.

Isolation voltage rating of 5000 V ensures electrical safety and performance integrity. Explore the extensive range of PCB Transformers available in the Electronics & Electrical category at EnvMart for your industrial and laboratory power requirements.
