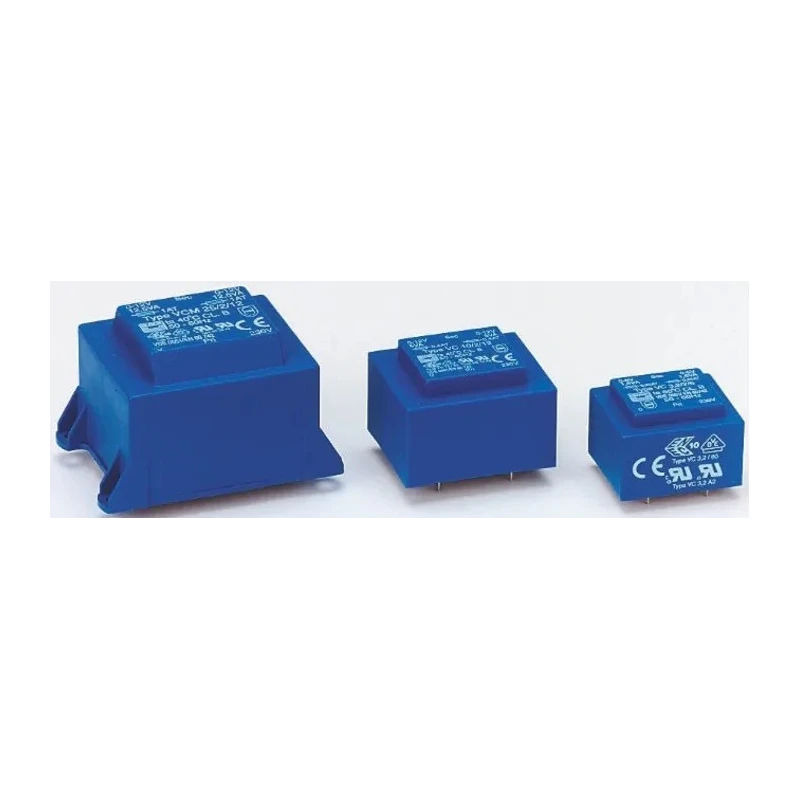

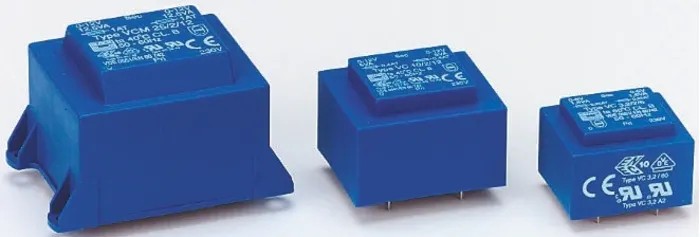

Block 2 x 6 V AC 2 Output Pin PCB Transformer, 230 V AC Primary, 5 VA Power, Pin Mount, VC 5/2/6

Block VC 5/2/6 is a high quality 2 output pin PCB transformer designed for industrial and electronic applications requiring dual secondary voltages of 6 V AC each. This PCB mount transformer operates with a 230 V AC primary voltage and delivers 5 VA power, making it ideal for power supply and distribution needs in various devices and control systems.

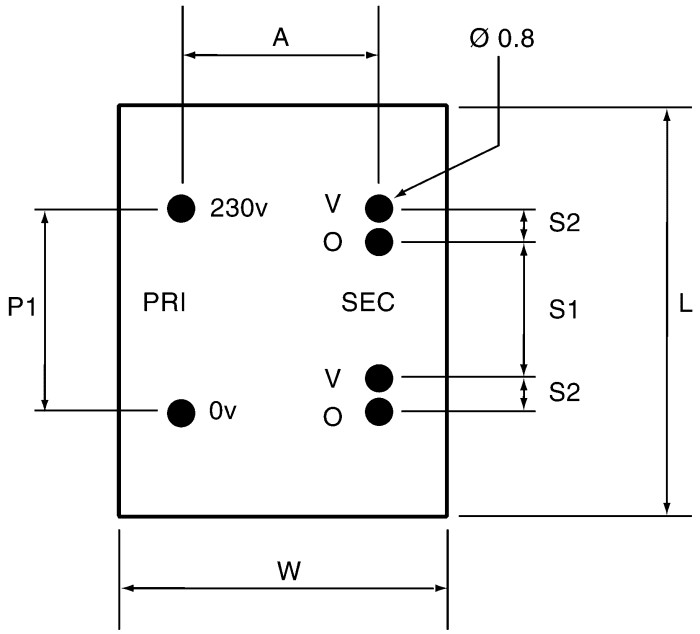

The transformer dimensions are 44mm in length, 33mm in width, and 37mm in depth, providing a compact form factor that facilitates ease of installation on standard printed circuit boards. Its pin mount type ensures secure and stable attachment to the board with additional fixing points for enhanced mechanical resilience.

Manufactured in Germany, the VC 5/2/6 model complies with multiple international safety and performance standards including CSA 22.2 No.66, VDE, UL 5085-1/-2, and DIN EN 61558-2-6, IEC 61558-2-6, and EN 61558-2-6. This adherence guarantees top level safety, reliability, and broad compatibility with global industry requirements.

Key features include vacuum resin moulding to a UL94-V0 flammability rating, resulting in excellent electrical insulation and thermal stability. The transformer exhibits low inter-winding capacitance and minimal radiated noise, thus maintaining signal integrity within sensitive electronic circuits.

The product is designed to operate at a frequency range of 50 Hz to 60 Hz and withstands operating temperatures up to 50°C. Its efficiency rating of 68% ensures effective energy usage in power conversion applications.

This PCB transformer is 100% electrically and flash tested to confirm functional integrity and durability for demanding industrial, laboratory, manufacturing, and commercial equipment where stable dual output AC voltages are crucial.

Its robust design and adherence to international standards make the Block VC 5/2/6 suitable for integration in power supplies, measurement instruments, control panels, and other electromechanical assemblies requiring reliable AC voltage transformation on PCB mounts.

Offers dual 6 V AC outputs for flexible configuration. Compact design with 44mm length, 33mm width, and 37mm depth. Constructed to meet CSA 22.2 No.66, VDE, UL 5085-1/-2, and DIN EN 61558 standards. Mounts securely on PCB using pin type mounting.

Operates efficiently with a 68% efficiency rating under standard conditions. Rated for maximum operating temperature of 50°C and frequency range of 50 to 60 Hz. Manufactured in Germany with vacuum resin moulding for UL94-V0 rating and low inter-winding capacitance.

Low radiated noise and 100% electrical and flash tested for reliability. Extra fixing points ensure secure board mounting for enhanced durability. Explore the full range of PCB Transformers and electronic power components on EnvMart for industrial and laboratory applications.
