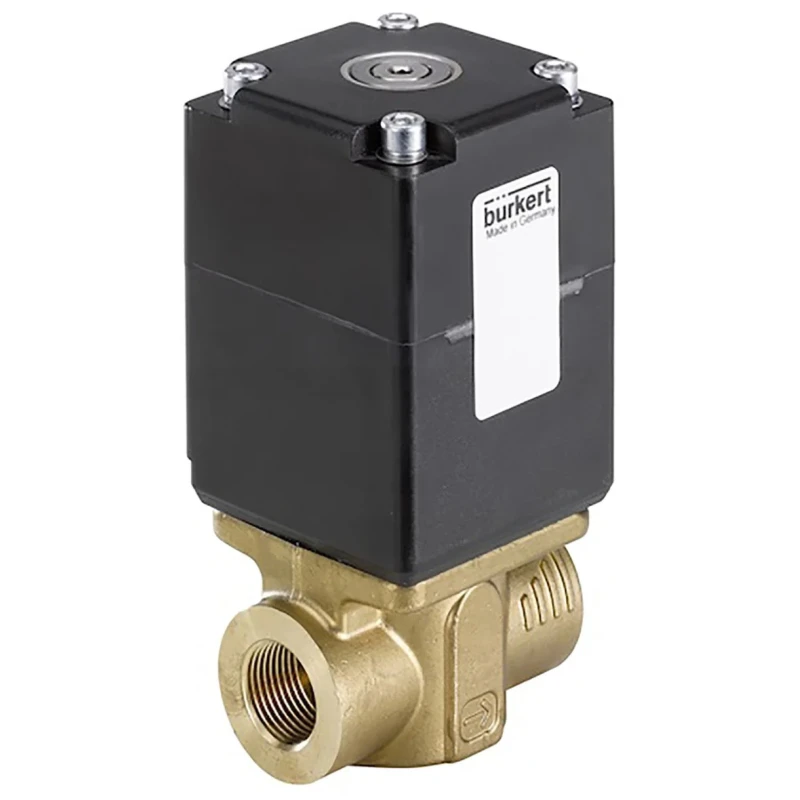

Burkert Proportional Solenoid Valve 2 Port NC 24V DC Brass Body 6mm Orifice 239090
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Burkert |
| Body Material | Brass |
| Maximum Operating Pressure | 4 bar |
| Model | 239090 |
| Series | 2875 |
| Number Of Ports | 2 |
| Minimum Operating Temperature | 55°C |
| Orifice Diameter | 6mm |
| Supply Voltage | 24V dc |
| Standards/Approvals | UL 429, ATEX, IECEX |
| Inlet Port Size | 12.7 mm |
| Default Valve Position | NC |
| Inlet Port Gender | Female |
| Maximum Opening Time | 25ms |
| Flow Factor Kv | 0.8m³/h |
Key Features
- Provides continuously adjustable flow control using PWM technology.
- Constructed with durable brass body material ensuring reliability.
- Features a 6mm orifice diameter for controlled fluid passage.
- Designed with a response time of 25 milliseconds and IP65 rating for protection.
- Suitable for liquids and neutral gases with 4 bar maximum operating pressure.
- Operates with 0.8 m³/h flow factor and tight elastomeric seating.
- Compact inlet and outlet ports sized 12.7 mm with female gender connections.
- Complies with UL 429, ATEX, and IECEX standards for safety and quality.
Product Description
Burkert 239090 proportional solenoid valve is a precision 2-port, normally closed (NC) valve designed for fluid flow control in demanding applications. Operating at 24V DC voltage and constructed with a robust brass body, it offers reliable performance and durability.
This 2875 series valve provides continuously adjustable and smooth control over fluid flow from 0 to 100 percent using PWM (pulse width modulation). Unlike traditional on/off solenoid valves, it allows fine adjustment with a frictionless valve plunger for exceptional accuracy and a tight-sealing elastomeric seat for leak prevention.
The valve features a 6mm orifice diameter, 12.7 mm inlet and outlet female ports, and supports a maximum operating pressure of 4 bar. It operates efficiently with a flow factor Kv of 0.8 m³/h and a maximum opening time of 25 milliseconds. The valve actuator has an IP65 protection rating and draws 16 W power, performing at 900Hz PWM frequency with a 100% continuously rated duty cycle.
This product has achieved UL 429, ATEX, and IECEX approvals, ensuring compliance with safety and quality requirements, although it is not certified for hazardous areas. Its temperature operating range includes a minimum and maximum of 55°C maintaining stable performance within controlled environments.
Ideal for precise fluid flow regulation in industrial manufacturing, laboratory instrumentation, process automation, and HVAC systems. The compact design and direct-acting operation simplify integration into automated control circuits.
Continuously adjustable flow control from 0 to 100% via PWM. Brass body construction for durability and corrosion resistance. Fast response time of 25 ms for dynamic applications. IP65 rated actuator for dust and water protection.
Tight elastomeric sealing seat ensures leak-free operation. Conforms to UL 429, ATEX, and IECEX safety standards. Suitable for liquid and neutral gas applications. Compact dimensions with 12.7 mm inlet and outlet ports. Reliable performance at up to 4 bar pressure.
Set contains 1 proportional solenoid valve unit. Explore more from our comprehensive range of industrial Solenoid Valves and control modules at EnvMart for advanced fluid control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure for this model is 4 bar.
This solenoid valve features a 6mm orifice diameter for controlled fluid passage.
It operates at a supply voltage of 24V DC.
The response time for this valve is 25 milliseconds.
It is suitable for liquids and neutral gases.
The inlet and outlet ports are sized at 12.7 mm with female connections.
It complies with UL 429, ATEX, and IECEX standards for safety and quality.
The flow factor Kv for this model is 0.8 m³/h.
The default valve position for this model is normally closed (NC).
The minimum operating temperature is 55°C.
The actuator has an IP65 protection rating, providing dust and water protection.
It provides continuously adjustable flow control from 0 to 100% using PWM technology.
