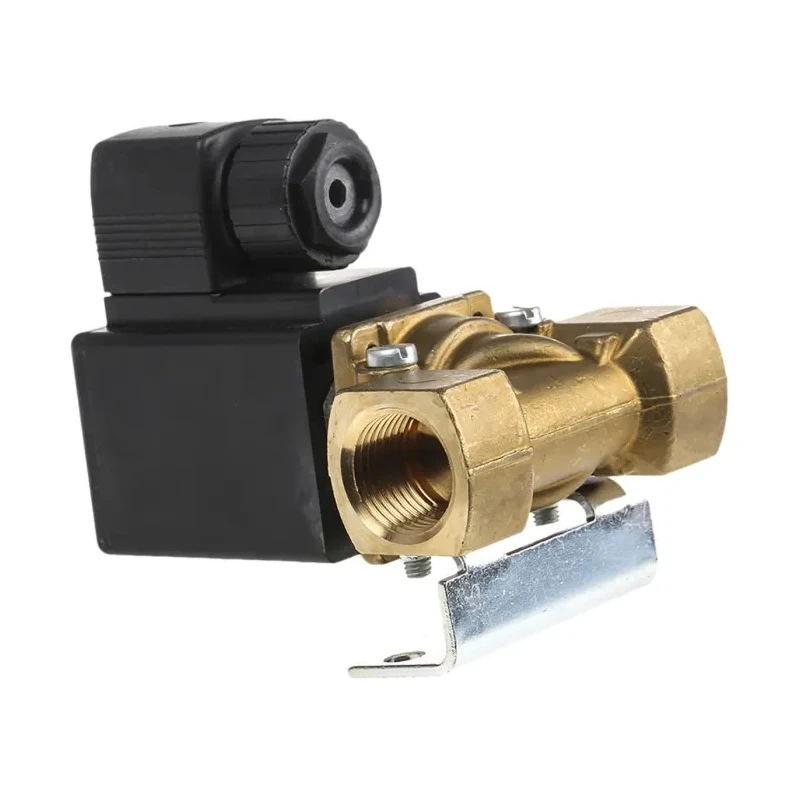

Burkert 0255 Series 2 Port Normally Closed Solenoid Valve, 110V AC, Brass Body, 1/2 in G Thread, 12.7 mm Outlet, Model 089403

Burkert 089403 is a 2 port normally closed solenoid valve from the 0255 series, designed for industrial and commercial fluid power applications. The valve is powered by 110V AC and features a brass body construction with threaded inlet and outlet connections sized at 1/2 inch G and 12.7 mm respectively. It is compatible with a broad range of media including water, steam, air, gases, hot oil, hydrocarbons, and alkaline washing agents, making it versatile for a variety of industrial fluid handling needs.

The valve operates reliably under maximum pressure of 12 bar, with an operational temperature range from -40°C to 55°C. A heat-resistant slip-over epoxy encapsulated coil ensures long service life and consistent performance. The rapid response times of 20 milliseconds (opening) and 30 milliseconds (closing) enable precise flow control in demanding applications.

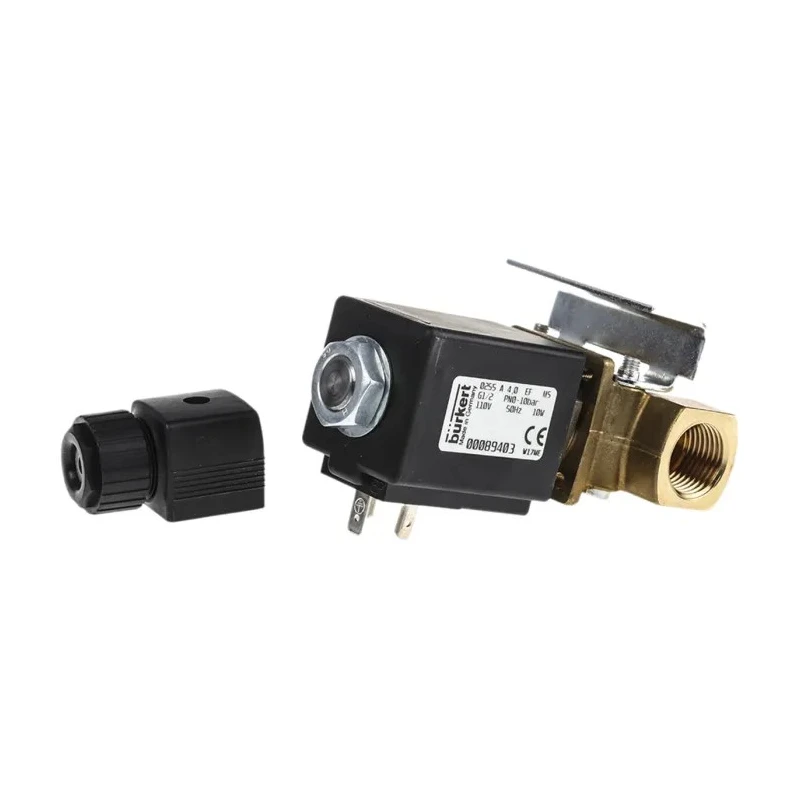

The design includes a 3-pin DIN connector that can be rotated 360° in 90° increments, providing flexible installation options. The brass body coupled with a PTFE seal provides excellent resistance against chemical corrosion and wear. The push-over solenoid system enhances the reliability of valve operation. With an IP65 rating, the valve is protected against dust ingress and low-pressure water jets, suitable for harsh industrial environments.

This valve supports industrial, water treatment, HVAC, manufacturing, and laboratory applications where dependable solenoid valve performance is critical. Its flow factor (Kv) of 0.5 m³/h aids in controlled fluid flow to meet system requirements.

Package Contents: 1 Pc Burkert 0255 Series Solenoid Valve Model 089403, 2 Port, NC, 110V AC, Brass Body, 1/2 in G Thread, 12.7 mm Outlet. Discover our full range of industrial Solenoid Valves and components at EnvMart for your fluid control needs.

The valve operates with a maximum pressure of 12 bar and temperature range from -40°C to 55°C. Equipped with a heat-resistant slip-over epoxy encapsulated coil ensuring durability. The valve has a rapid response with maximum opening and closing times of 20ms and 30ms respectively.

Flow factor (Kv) of 0.5 m³/h facilitates controlled fluid and gas handling. Suitable for use with water, steam, air, gases, hot oil, hydrocarbons, and alkaline washing agents. Coil connector can be positioned 360 degrees in 90 degree increments for installation flexibility.

Constructed with a brass body and PTFE seal for reliability and chemical resistance. Push-over solenoid system design offers effective valve control. IP65 rating for protection against dust and water ingress.
