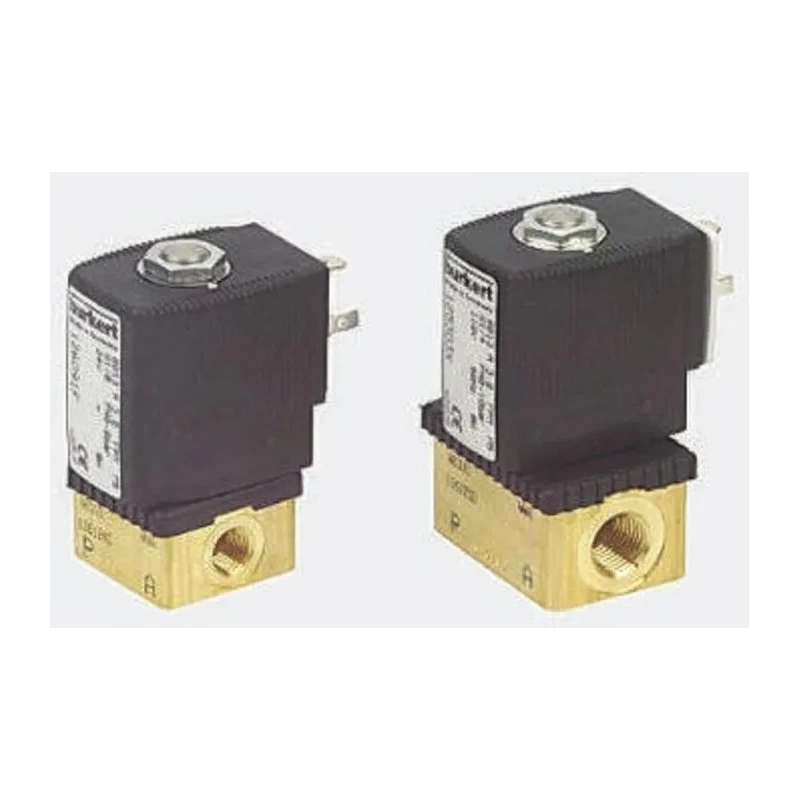

Burkert 2 Port NC Brass Body Solenoid Valve 110V AC 3mm Orifice Diameter 10 bar Max Pressure 126093
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Burkert |
| Body Material | Brass |
| Maximum Operating Pressure | 10 bar |
| Outlet Connection Type | Threaded |
| Model | 126093 |
| Series | 6013 |
| Number Of Ports | 2 |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -10°C |
| Orifice Diameter | 3mm |
| Supply Voltage | 110V ac |
| Inlet Port Size | 1/8 in G |
| Default Valve Position | NC |
| Inlet Thread Standard | G |
| Maximum Opening Time | 20ms |
| Flow Factor Kv | 0.23m³/h |
| Maximum Closing Time | 30ms |
Key Features
- Operates at 110V AC supply voltage with 3mm orifice diameter.
- Compact two-way valve designed for fluid control with maximum 10 bar operating pressure.
- Brass body housing with polyamide coil ensures durability and reliability.
- Suitable for applications involving compressed air, natural gas, water, and hydraulic oil.
- Maximum operating temperature of 55°C and minimum of -10°C.
- Valve coil is replaceable and can be locked in four positions at 90° intervals.
- Power consumption is 8W DC and 24VA inrush with 17VA hold in AC operation.
- Protection rating IP65 with cable plug DIN 43650C enhances operational safety.
Product Description
Burkert 126093 is a premium two-way solenoid valve featuring a compact brass body, designed for high precision fluid and gas control in industrial applications.
This valve operates on 110V AC and offers a nominal orifice diameter of 3mm, supporting a maximum operating pressure of 10 bar. Its normally closed (NC) position ensures safety and control when power is not supplied.
The solenoid coil is made of polyamide, easily replaceable with the valve in place, and can be locked in four 90° positions for flexible installation. Power consumption specifications include 8W for DC and 24VA inrush with 17VA hold for AC operation.
Its brass body is robust and suitable for handling liquids and neutral gases such as compressed air, natural gas, water, and hydraulic oil, with an operating temperature range from -10°C to 55°C. The unit is protected to IP65 standard with a DIN 43650C cable plug, ensuring resistance to dust and water ingress.
The valve's flow factor Kv of 0.23 m³/h allows for accurate flow regulation. The fast opening and closing times (20ms opening, 30ms closing) facilitate efficient operational performance.
Manufactured in Germany, this solenoid valve is engineered for durability and reliable service in diverse industrial, laboratory, HVAC, and manufacturing environments. It is an excellent choice for pneumatic, liquid, and gas control applications requiring a precise, modular direct-acting solenoid valve system.
Operates on 110V AC supply with 3mm orifice diameter. Brass body with polyamide coil enhances durability and ease of coil replacement. Suitable for compressed air, natural gas, water, and hydraulic oil. Maximum operating pressure 10 bar with temperature range -10°C to 55°C.
Protection rating IP65 with DIN 43650C cable plug ensures longevity. Fast response with maximum opening time of 20ms and closing time of 30ms. Flow factor Kv of 0.23 m³/h for precise fluid control. Coil configurable in four 90° locked positions for installation flexibility.
Compact modular design supports efficient integration in systems. Manufactured in Germany with high quality standards.
Explore further Solenoid Valves and industrial valves and fittings in our extensive EnvMart catalog for fluid power and plumbing pipelines to find the solution matching your technical needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this model is 10 bar.
This solenoid valve features a nominal orifice diameter of 3mm.
It operates on a supply voltage of 110V AC.
The operating temperature range for this unit is from -10°C to 55°C.
The body of the valve is made of brass, and the coil is made of polyamide.
The maximum opening time is 20ms, while the maximum closing time is 30ms.
The flow factor Kv for this model is 0.23 m³/h, allowing for precise fluid control.
The valve features a threaded outlet connection type with an inlet port size of 1/8 in G.
Yes, the solenoid coil is replaceable and can be locked in four positions at 90° intervals for flexible installation.
The default valve position for this unit is normally closed (NC).
This model has a protection rating of IP65, ensuring resistance to dust and water ingress.
This solenoid valve is manufactured in Germany.
