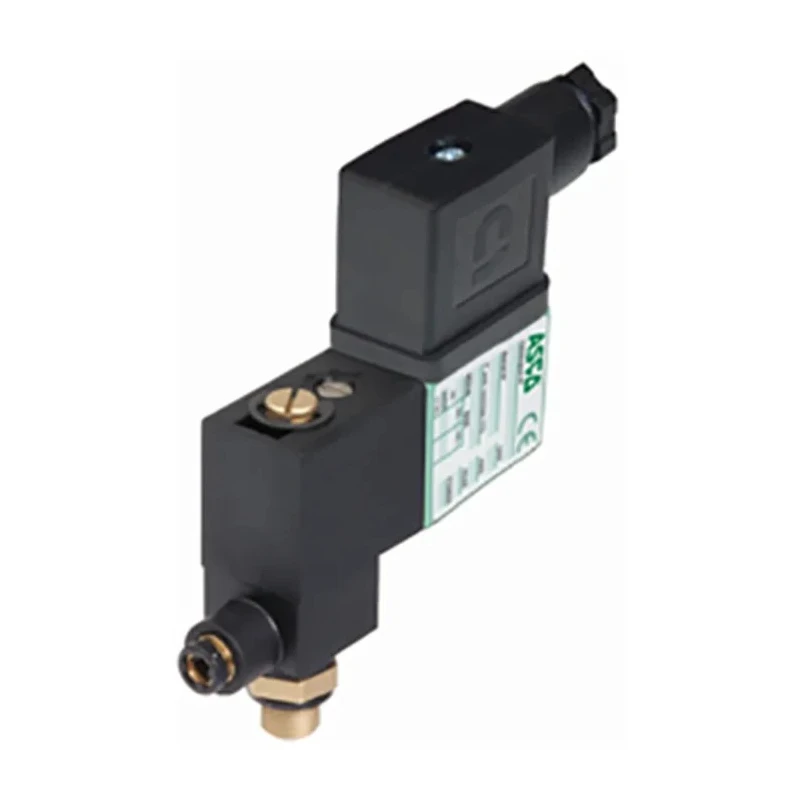

EMERSON ? ASCO Solenoid Valve 3 Port Normally Closed NC Fibreglass Reinforced Polyamide Body 24V AC 1/8 in 18900032.24/50-60

EMERSON ASCO 18900032.24/50-60 Solenoid Valve is an industrial-grade valve engineered for fluid control applications demanding reliability and rapid response. Powered by a 24V AC supply, this valve features a normally closed (NC) configuration with 3 ports, making it suitable for pneumatic and fluid power control systems.

The valve incorporates a fibreglass reinforced polyamide body, offering high strength and resistance to wear and corrosion. The compact 1/8 inch inlet port size conforms to G ISO 228/1 threading standards, facilitating easy integration into existing pipelines or systems.

Operating pressures can reach up to 10 bar, with a temperature range from -10°C to 60°C, allowing use in diverse industrial environments. The orifice size of 1.2 mm ensures controlled flow, supporting applications requiring precise fluid delivery.

Response times are optimized with maximum opening and closing times of just 20 milliseconds, enabling swift control necessary in automatic industrial processes. The flow factor Kv of 0.03 m³/h confirms its capacity for accurate flow rate management.

Manufactured in France under stringent quality controls, this solenoid valve is ideal for industrial, laboratory, and manufacturing applications where dependable valve operation is crucial. Typical uses include fluid power control, pneumatic systems, and automated valve switching.

This Solenoid Valve operates at 24V AC enabling precise control. It has three ports with a default normally closed (NC) valve position. The inlet port size is 1/8 inch with G ISO 228/1 threading standards. The valve body is made of durable fibreglass reinforced polyamide material.

Maximum operating pressure rating is 10 bar. Operates efficiently between temperatures of -10°C to 60°C. Orifice diameter measures 1.2 mm for controlled flow. Maximum opening and closing times are 20 ms each. Flow factor Kv is 0.03 m³/h, suitable for precise flow applications.

Manufactured in France to high-quality standards. Explore the wide range of industrial valves and fittings available on EnvMart for all your fluid power needs.
