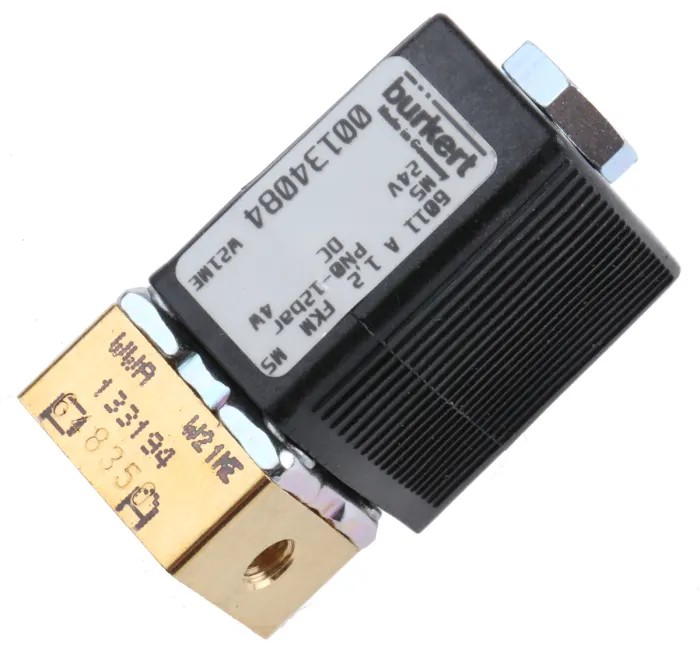

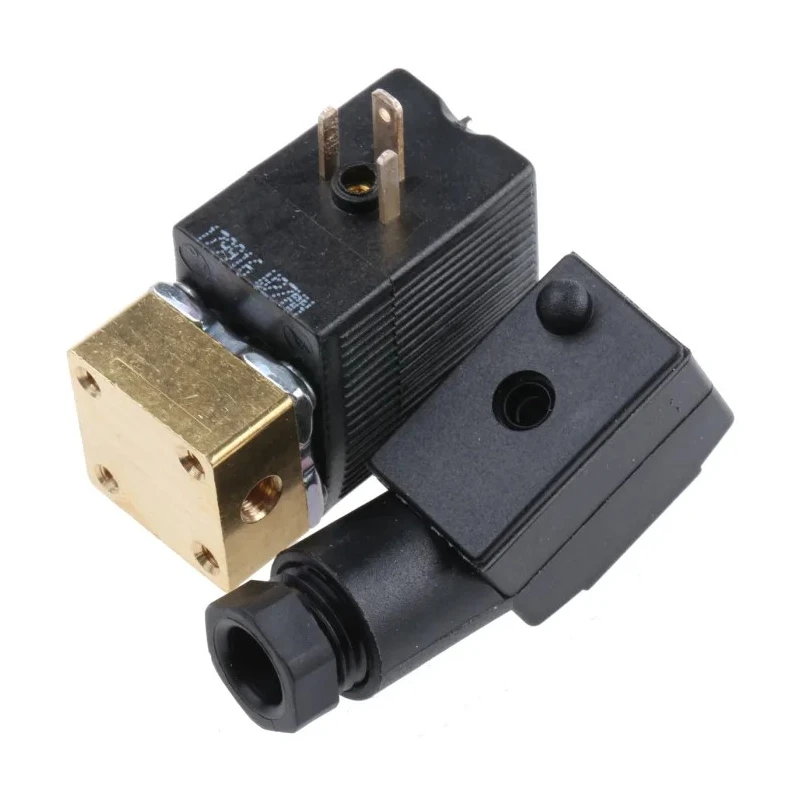

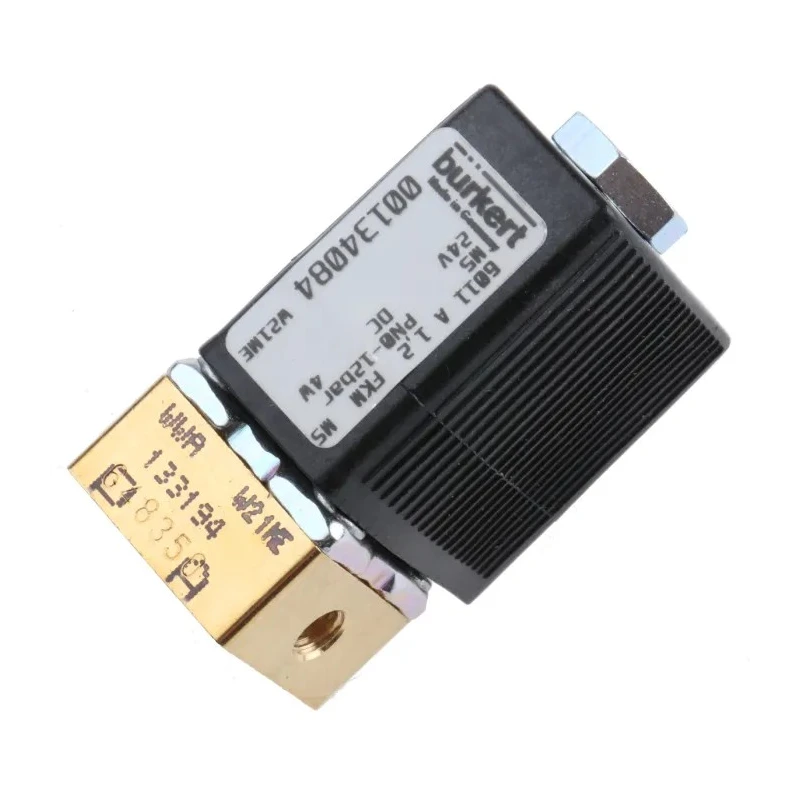

Burkert Brass Body 2-Port Normally Closed Solenoid Valve 24V DC, M5 Threaded Inlet 134084
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Burkert |
| Body Material | Brass |
| Maximum Operating Pressure | 12 bar |
| Outlet Connection Type | Threaded |
| Model | 134084 |
| Series | 6011 |
| Number Of Ports | 2 |
| Minimum Operating Temperature | 55°C |
| Orifice Diameter | 1.2mm |
| Supply Voltage | 24V dc |
| Inlet Port Size | M5 |
| Default Valve Position | NC |
| Inlet Thread Standard | G |
| Inlet Port Gender | Female |
| Maximum Opening Time | 10ms |
| Flow Factor Kv | 0.045m³/h |
| Maximum Closing Time | 15ms |
| Outlet Thread Standard | UNF |
| SMC Solenoid Valve VDW11-5G-2-M5-Q, 2 port(s) , NC, 24 V dc, M5Brand | SMC |
Key Features
- Brass body provides durability and corrosion resistance.
- Flow factor (Kv) of 0.045 cubic meters per hour supports fluid and neutral gas applications.
- Maximum operating pressure is 12 bar, suitable for industrial pneumatic and fluid power.
- Operates between -10°C and 55°C, with rapid opening and closing times of 10ms and 15ms respectively.
- Coil is easily replaceable and can be oriented in four 90-degree positions for installation flexibility.
- Features a screwed coil system with high-quality FPM seals and welded stopper and plunger guide tube for leak tightness.
- IP65 rated for protection against dust and water ingress.
- Compatible with liquids, neutral gases and technical vacuum applications.
Product Description
Burkert 134084 solenoid valve is a compact, direct-acting 2-port valve with normally closed (NC) default position, designed for precision flow control in pneumatic and fluid handling systems.
Constructed with a robust brass body and equipped with a polyamide coil, it operates at a supply voltage of 24V DC and provides a flow factor Kv of 0.045 m³/h. The M5 female threaded inlet and threaded outlet connections support secure integration with existing pipelines.
Its orifice diameter of 1.2 mm and maximum operating pressure of 12 bar enables efficient regulation of liquids, neutral gases, and technical vacuum. The valve features high-quality FPM sealing material and a welded stopper and plunger guide tube, enhancing pressure resistance and leak-tight performance over sustained operation.
The coil assembly is designed for easy replacement without removal of the valve, and can be locked or freely rotated in four 90-degree increments to suit manifold or flange mounting. Its quick coupling push-in fitting supports convenient hose connection. Operational temperature ranges from -10°C to 55°C, covering most industrial environments.
Rapid actuation is assured with maximum opening and closing times of 10 ms and 15 ms respectively, supporting responsive system control. The valve holds an IP65 rating, ensuring protection against dust and water ingress, critical for demanding industrial, laboratory, HVAC, manufacturing, and pneumatic automation applications.
Brass construction with polyamide coil and FPM seal. 2 port normally closed configuration suitable for liquid and gas flow control. M5 female threaded inlet and UNF outlet connections. Maximum operating pressure up to 12 bar.
Flow factor Kv: 0.045 cubic meters per hour. Operating temperature range from -10°C to 55°C. 24V DC supply voltage with low power consumption of 4W. Quick and flexible coil installation. IP65 protection class for robustness in harsh environments.
Package does not include additional accessories. This solenoid valve model 134084 is suitable for industrial facilities requiring precise control of pneumatic and fluid media, including water, neutral fluids, natural gases, oil, and fats (without additives).
Explore more high-performance Solenoid Valves and industrial valves on EnvMart to find compatible components and upgrades.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this model is 12 bar, making it suitable for various industrial applications.
The flow factor (Kv) of this valve is 0.045 cubic meters per hour, supporting efficient fluid and gas flow control.
This unit operates within a temperature range of -10°C to 55°C, suitable for most industrial environments.
It requires a supply voltage of 24V DC for operation, with a low power consumption of 4W.
The orifice diameter of this solenoid valve is 1.2 mm, allowing for precise flow control.
The maximum opening time is 10 ms and the maximum closing time is 15 ms, ensuring rapid actuation.
It features an M5 female threaded inlet and a UNF outlet connection type for secure integration with pipelines.
Yes, the coil is designed for easy replacement without removing the valve and can be oriented in four 90-degree positions.
The valve has a brass body and a polyamide coil, with high-quality FPM seals for leak-tight performance.
This model is suitable for precise control of liquids, neutral gases, and technical vacuum applications in various industrial settings.
It has an IP65 rating, providing protection against dust and water ingress, making it suitable for harsh environments.
The package does not include additional accessories; it is designed for direct integration into existing systems.
