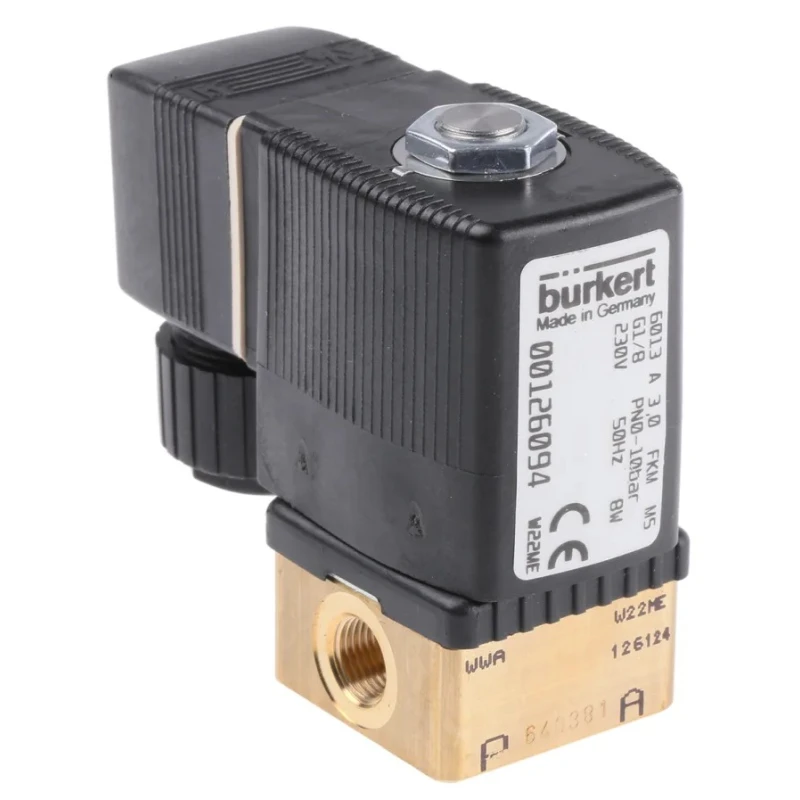

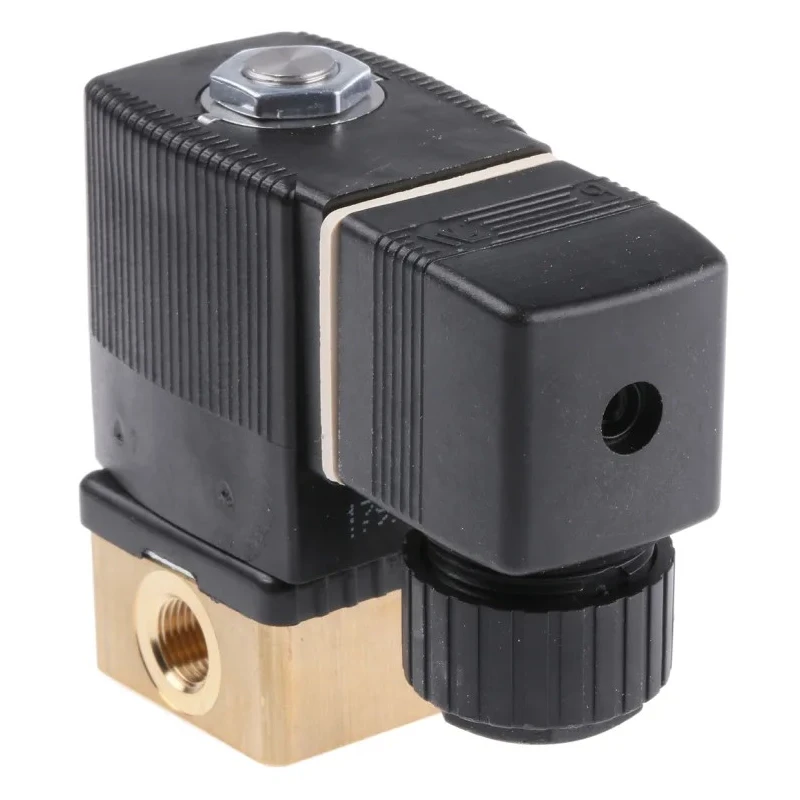

Burkert 2 Port NC Brass Body Solenoid Valve 230V AC 3.18 mm Orifice 6013 Series 126094
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Burkert |
| Body Material | Brass |
| Maximum Operating Pressure | 10 bar |
| Model | 126094 |
| Series | 6013 |
| Number Of Ports | 2 |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -10°C |
| Orifice Diameter | 3mm |
| Supply Voltage | 230V ac |
| Inlet Port Size | 3.18 mm |
| Default Valve Position | NC |
| Inlet Port Gender | Female |
| Maximum Opening Time | 20ms |
| Flow Factor Kv | 0.23m³/h |
| Maximum Closing Time | 30ms |
| SOL VAL 2/2 GP 240VAC 1/8Brand | Burkert |
| Burkert Solenoid Valve 138059, 2 port(s) , 230 V ac, 1/8inBrand | Burkert |
Key Features
- Operates at 230V AC supply voltage ensuring compatibility with standard electrical systems.
- Compact 2 port design with 3.18 mm inlet and outlet port sizes.
- Brass body provides durability and corrosion resistance for diverse applications.
- Maximum operating pressure of 10 bar suitable for various industrial fluid controls.
- Suitable operating temperature range from -10°C to 55°C for reliable performance.
- Flow factor Kv of 0.23 m³/h optimizes flow efficiency.
- Quick response with maximum opening time of 20 ms and closing time of 30 ms.
- Inlet and outlet ports are female threaded for easy piping integration.
Product Description
Burkert 126094 is a compact 2 port normally closed (NC) solenoid valve from the 6013 series, engineered with a brass body and polyamide coil for enhanced durability and functionality. It operates at 230V AC voltage, suitable for controlling liquid and neutral gas flows in industrial and commercial applications.
The valve accommodates inlet and outlet port sizes of 3.18 mm and provides an orifice diameter of 3 mm, which balances flow capacity and control. It can withstand a maximum operating pressure of 10 bar and performs reliably within a temperature range of -10°C to 55°C. The valve’s design includes quick actuation with a maximum opening time of 20 ms and closing time of 30 ms, supporting efficient automated fluid control systems.

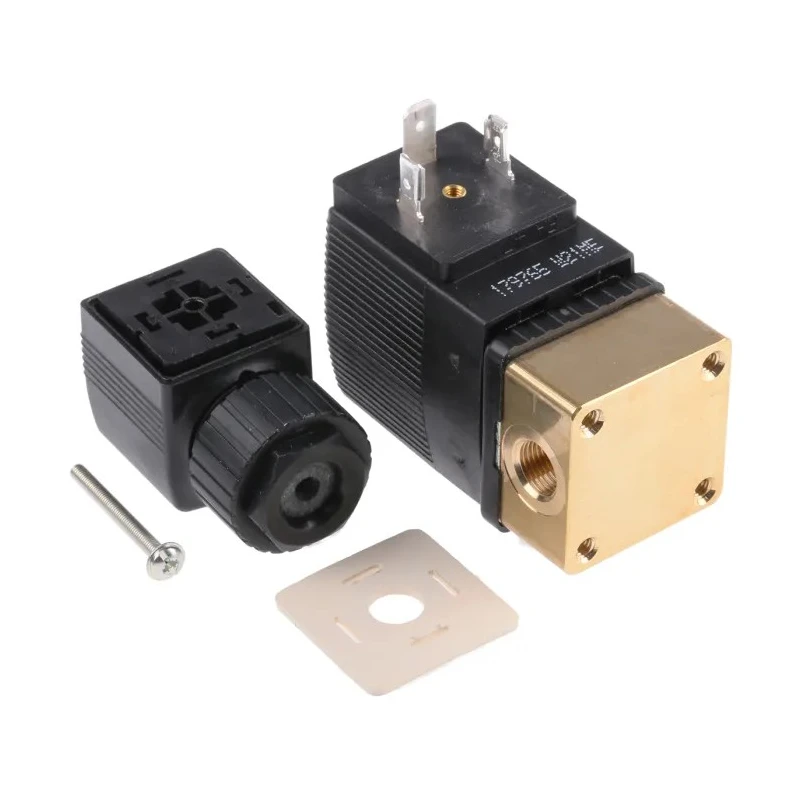

The coil is modular and can be replaced without removing the valve from the line. It also allows locking in four 90° positions or free movement between positions, adding versatility for installation requirements. The valve’s seal is made from FPM high-quality material, enhancing chemical resistance and durability.
This solenoid valve features IP65 protection via a DIN 43650C cable plug ensuring safe use in industrial environments prone to dust and moisture. It is ideal for applications involving compressed air, natural gas, water, and hydraulic oil systems.
Operates at 230V AC for standard power compatibility. Two port design with normally closed function for fail-safe operation. Robust brass body for extended service life. Flow factor Kv of 0.23 m³/h for precise fluid handling.
Coil replaceable with configurability for various installations. Suitable for liquid and neutral gas applications. Maximum pressure rating of 10 bar for diverse industrial uses. IP65 protection ensures reliability in tough environments.
Compact design facilitates integration in automated systems. Operating temperature from -10°C to 55°C.
This Burkert solenoid valve is manufactured in Germany, reflecting stringent European quality standards. It is a reliable choice for applications in industrial fluid power, manufacturing processes, HVAC systems, and water treatment plants.
Explore more Solenoid Valves and industrial valves in the EnvMart catalog to meet your control system requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this model is 10 bar, making it suitable for various industrial fluid controls.
This unit operates reliably within a temperature range of -10°C to 55°C.
The orifice diameter of this solenoid valve is 3 mm, which balances flow capacity and control.
It operates at a supply voltage of 230V AC, ensuring compatibility with standard electrical systems.
The flow factor Kv for this solenoid valve is 0.23 m³/h, optimizing flow efficiency.
The inlet and outlet port sizes are both 3.18 mm, designed for easy piping integration.
This is a normally closed (NC) solenoid valve, which provides fail-safe operation.
The maximum opening time is 20 ms, and the maximum closing time is 30 ms, allowing for quick actuation.
The body of this valve is made from brass, providing durability and corrosion resistance.
It is suitable for applications involving compressed air, natural gas, water, and hydraulic oil systems.
This model features an IP65 protection rating, ensuring reliability in environments prone to dust and moisture.
This solenoid valve is manufactured in Germany, reflecting stringent European quality standards.
