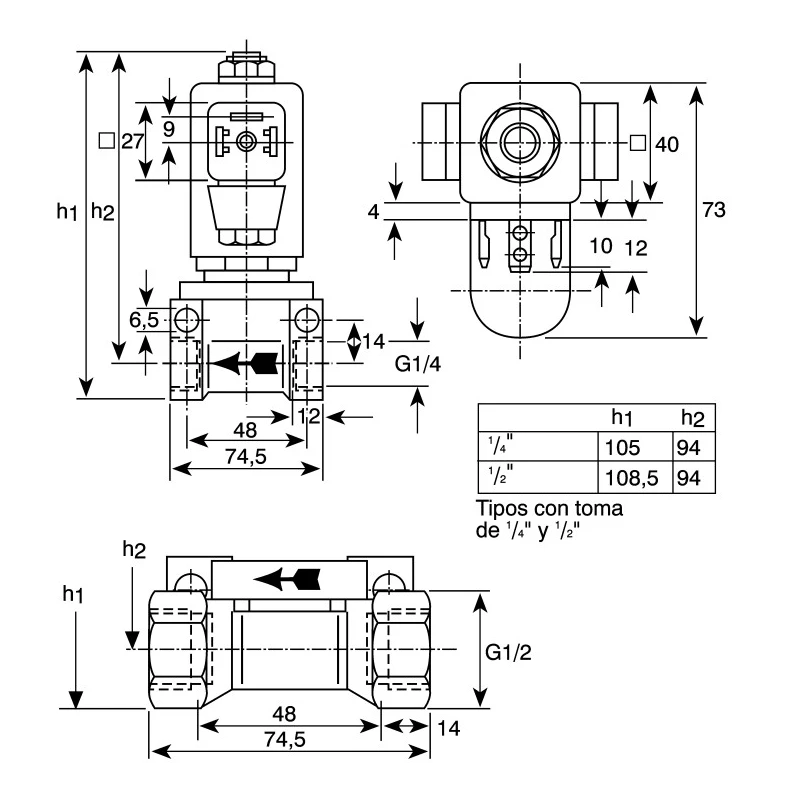

Burkert 2 Port NC Brass Body Solenoid Valve 230V AC, 1/4 in G, 12.7 mm Orifice Diameter 4mm 076551
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Burkert |
| Body Material | Brass |
| Maximum Operating Pressure | 12 bar |
| Outlet Connection Type | Threaded |
| Model | 076551 |
| Series | 0255 |
| Number Of Ports | 2 |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -40°C |
| Orifice Diameter | 4mm |
| Supply Voltage | 230V ac |
| Inlet Port Size | 1/4 in G |
| Default Valve Position | NC |
| Inlet Thread Standard | G |
| Outlet Port Size | 12.7 mm |
| Inlet Port Gender | Female |
| Maximum Opening Time | 20ms |
| Flow Factor Kv | 0.5m³/h |
| Maximum Closing Time | 30ms |
| Burkert Solenoid Valve 089403, 2 Port, NC, 110V ac 1/2 in G, 12.7 mmBrand | Burkert |
| SOL VAL 2/2 WS 240VAC 1/2Brand | Burkert |
| Burkert Solenoid Valve 138034, 2 port(s) , 230 V ac, 1/2inBrand | Burkert |
Key Features
- Operates at 230V AC supply voltage with a 2-port normally closed configuration.
- Features a 1/4 inch G threaded inlet port and a 12.7 mm threaded outlet port.
- Orifice diameter is 4 mm, supporting a flow factor Kv of 0.5 m³/h.
- Suitable for gases, water, steam, air, hot oils, hydrocarbons, and alkaline washing agents.
- Maximum operating pressure is 12 bar, with operating temperatures ranging from -40°C to 55°C.
- Equipped with a push-over solenoid system and servo assist for reliable operation.
- Constructed with a brass body and PTFE seal for durability and chemical resistance.
- Maximum opening time of 20 ms and closing time of 30 ms ensures fast valve response.
Product Description

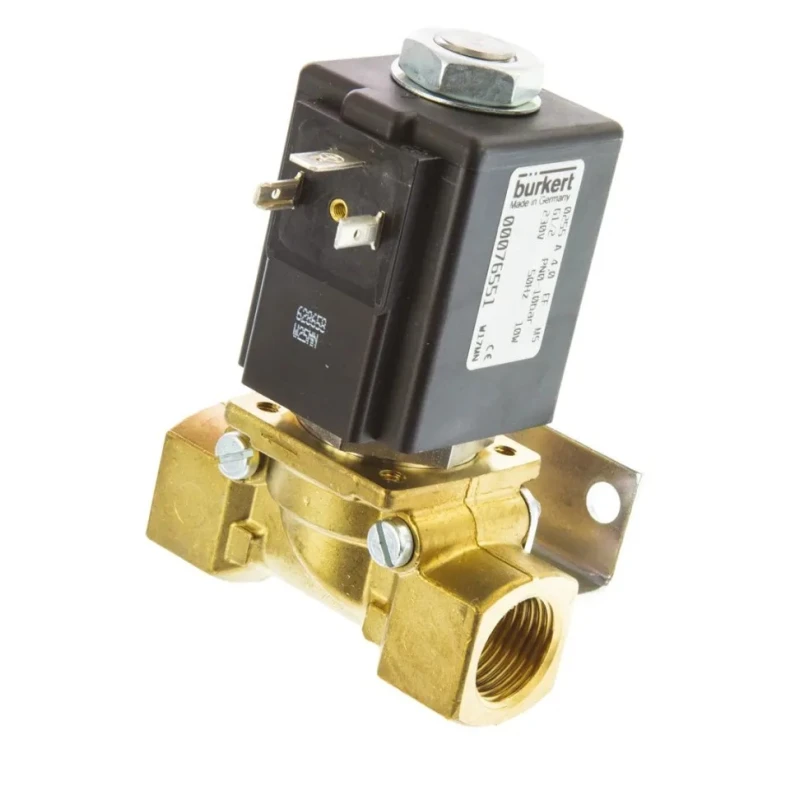

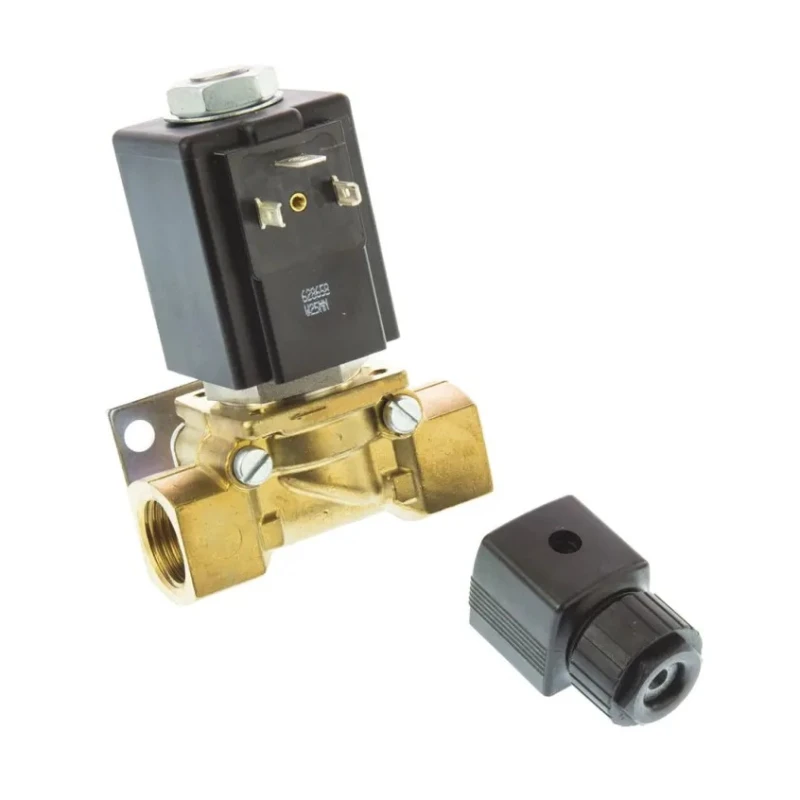

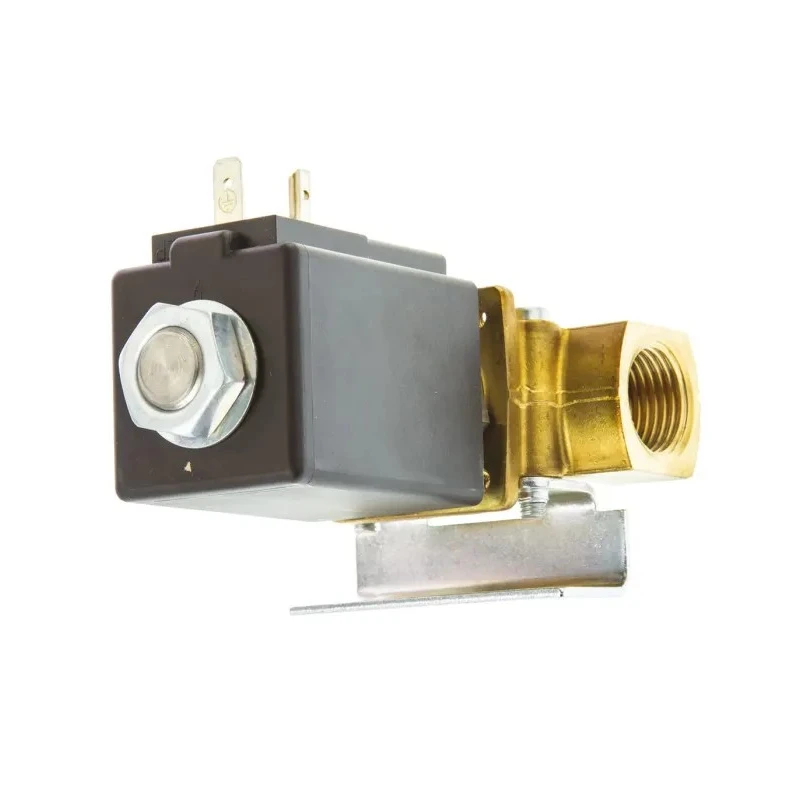

Burkert 076551 is a 2 port normally closed solenoid valve with a brass body and PTFE seal designed for fluid and gas control in industrial applications. It operates on a 230V AC supply voltage and features threaded inlet and outlet ports measuring 1/4 inch G and 12.7 mm respectively. The valve's 4 mm orifice diameter and flow factor Kv of 0.5 m³/h make it suitable for controlling medium flow rates.
This solenoid valve supports applications involving water, steam, air, gases, hot oils, hydrocarbons, and alkaline washing agents, handling maximum operating pressures of 12 bar and temperatures from -40°C to 55°C. The valve incorporates a direct-acting plunger design with a heat-resistant slip-over epoxy encapsulated coil and a push-over solenoid system with servo assist for reliable operation under demanding conditions.

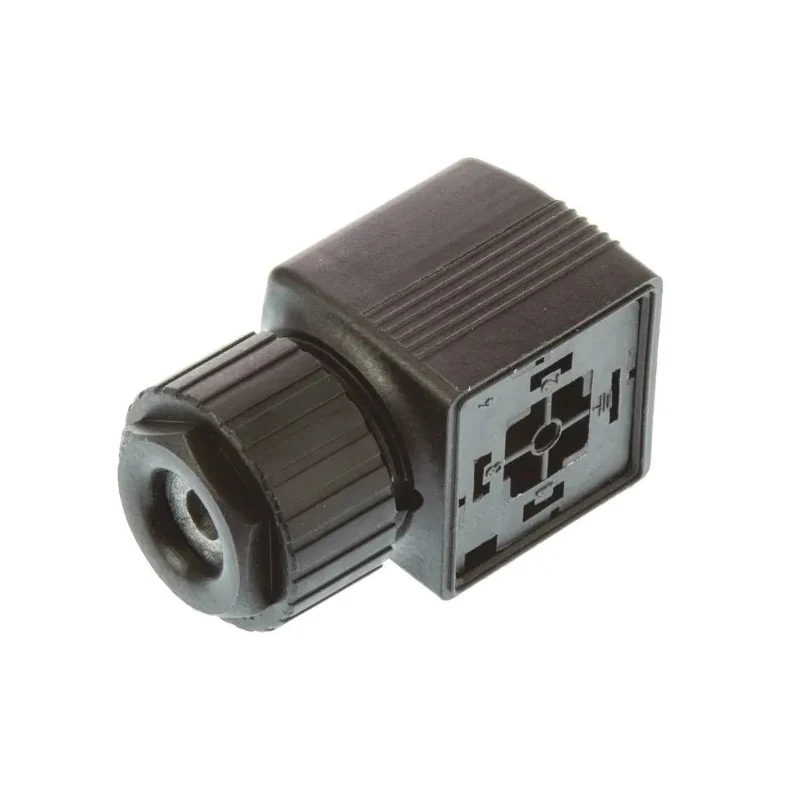

The valve exhibits rapid response capabilities with maximum opening and closing times of 20 ms and 30 ms respectively. Installation is facilitated by a three-pin DIN connector that can be positioned 360 degrees in 90-degree increments, allowing flexible configuration.
Operates at 230V AC supply voltage with 2-port normally closed design. Brass body with durable PTFE sealing material. Suitable for water, steam, air, gases, hot oils, hydrocarbons, and alkaline cleaning agents. Maximum pressure rating is 12 bar, with operating temperatures between -40°C and 55°C.
Push-over solenoid system with servo assist ensures reliable valve operation. Maximum opening time of 20 milliseconds and closing time of 30 milliseconds. 3-pin DIN connector rotatable by 360° in 90° increments.
This highly reliable Burkert Solenoid Valve is ideal for industrial, laboratory, HVAC, and manufacturing fluid control systems requiring compact and responsive valve operation. Suitable for high-pressure and temperature environments, it is an excellent choice for demanding process control tasks where durability and quick actuation are essential.
Explore the broad range of industrial valves and fittings available at EnvMart for your fluid power and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this model is 12 bar.
It operates at a supply voltage of 230V AC.
The inlet port size is 1/4 inch G, and the outlet port size is 12.7 mm.
The orifice diameter is 4 mm.
The flow factor Kv is 0.5 m³/h.
It can operate within a temperature range of -40°C to 55°C.
The default valve position is normally closed (NC).
The maximum opening time is 20 ms, and the maximum closing time is 30 ms.
The body is made of brass, and it features a PTFE seal for chemical resistance.
It is suitable for gases, water, steam, air, hot oils, hydrocarbons, and alkaline washing agents.
It is equipped with a 3-pin DIN connector that can be rotated 360 degrees in 90-degree increments for flexible configuration.
The country of origin for this valve is Germany.
