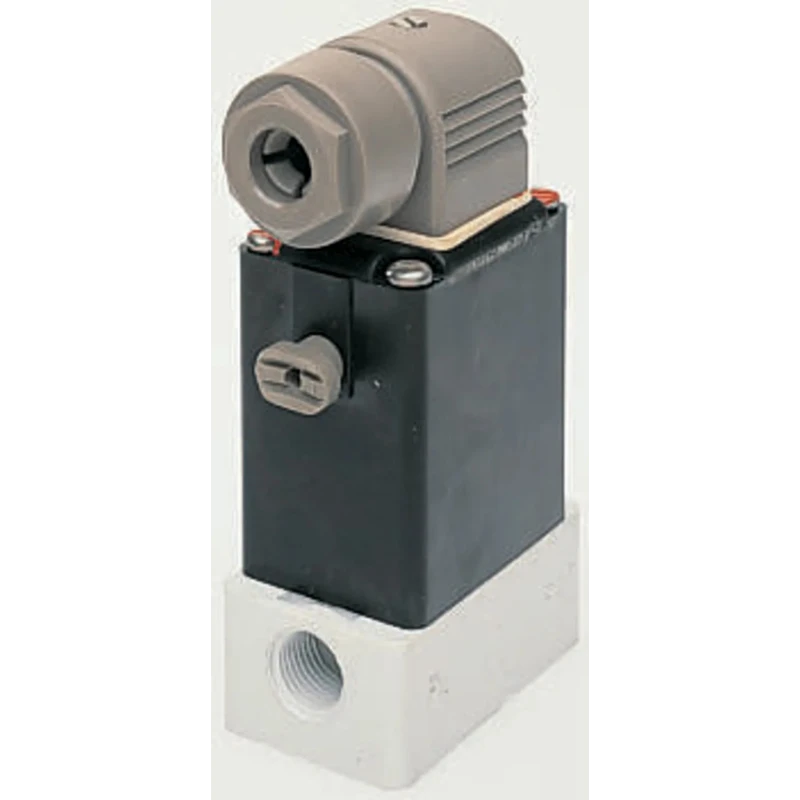

Burkert 2 Port NC Polypropylene Solenoid Valve 110V AC 1/4 in G Orifice 5mm 088468
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Burkert |
| Body Material | Polypropylene |
| Maximum Operating Pressure | 4.5 bar |
| Outlet Connection Type | G 1/4 |
| Model | 088468 |
| Series | 0124 |
| Number Of Ports | 2 |
| Minimum Operating Temperature | 55°C |
| Orifice Diameter | 5mm |
| Supply Voltage | 110V ac |
| Inlet Port Size | 1/4 in G |
| Default Valve Position | NC |
| Inlet Thread Standard | G |
| Outlet Port Size | 1/4 in |
| Maximum Opening Time | 15ms |
| Flow Factor Kv | 0.4m³/h |
| Fluid Temperature Range | -30 → +80°C (EPDM), 0 → +80°C (FKM) |
| SOL VAL 2/2 AG 110VAC 1/8Brand | Burkert |
| Burkert Solenoid Valve 049969, 2 Port, NC, 230V ac 1/4 in G, 6.35 mmBrand | Burkert |
Key Features
- Constructed with durable polypropylene body suitable for aggressive media.
- Maximum operating pressure of 4.5 bar for versatile industrial applications.
- Fast response with maximum opening and closing times of 15 ms.
- Flow factor Kv of 0.4 m³/h ensuring efficient fluid control.
- Wide operational fluid temperature range from -30 to +80°C depending on seal material.
- Lockable manual override and 3-pin DIN connector rated IP65 for flexible installation.
- Designed for intermittent duty cycle with 8W nominal coil power and 30% duty factor.
- Ideal for industries handling alkalis, acids, and bleaching agents.
Product Description
Burkert 088468 2 Port Normally Closed (NC) Solenoid Valve powered by 110V AC is engineered for controlling aggressive media in industrial settings. Featuring polypropylene body construction and 1/4 in G inlet and outlet ports, this valve ensures chemical resistance and durability. It is ideal for precise fluid management in manufacturing, laboratory, water treatment, and chemical processing applications.
The valve operates with a maximum operating pressure of 4.5 bar and offers quick response times with a maximum opening and closing time of 15 ms. It has a flow factor Kv of 0.4 m³/h, facilitating controlled and efficient flow rates. The fluid temperature range is flexible, accommodating -30 to +80°C for EPDM seals and 0 to +80°C for FKM seals, making it suitable for a variety of medium concentrations including alkalis and acids.
This solenoid valve includes a lockable manual override and a 3-pin DIN connector rated at IP65, permitting installation versatility with 360° positioning in 90° increments. Designed for intermittent operation with a 40% duty cycle over 30 minutes, it houses an 8W nominal coil power with 30 VA in-rush and 15 VA holding power. The valve is compatible with BSP parallel ports and stainless steel compression fittings.
Its robust design and performance make it suitable for industrial, laboratory, HVAC, water treatment, and chemical processing environments. The valve is manufactured in Germany, ensuring quality and reliability. Set contains 1 Pc Burkert Solenoid Valve 088468.
Durable polypropylene body for chemical resistance. 2 port, normally closed design for reliable operation. 110V AC supply with 8W nominal coil power. 1/4 in G inlet and outlet connection for standard piping. Fast switching times with 15 ms max opening and closing.
Wide fluid temperature range with EPDM and FKM seals. Lockable manual override for operational flexibility. IP65 rated 3-pin DIN connector for secure installation. Suitable for aggressive media including alkalis and acids.
Explore the wide range of Burkert Solenoid Valves and industrial control solutions at EnvMart for reliable performance and quality assurance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this solenoid valve is 4.5 bar.
The flow factor Kv of this model is 0.4 m³/h, facilitating efficient fluid control.
The fluid temperature range for this valve is -30 to +80°C with EPDM seals and 0 to +80°C with FKM seals.
This valve has a G 1/4 inlet and outlet connection, suitable for standard piping.
The nominal coil power of this solenoid valve is 8W, with a 30% duty factor.
This valve has a maximum opening and closing time of 15 ms, allowing for fast response.
The body of this valve is constructed from durable polypropylene, making it suitable for aggressive media.
Yes, this valve includes a lockable manual override for operational flexibility.
This solenoid valve is manufactured in Germany.
The default valve position of this model is normally closed (NC).
This valve is suitable for industrial, laboratory, HVAC, water treatment, and chemical processing environments.
The inlet thread standard for this valve is G, compatible with BSP parallel ports.
