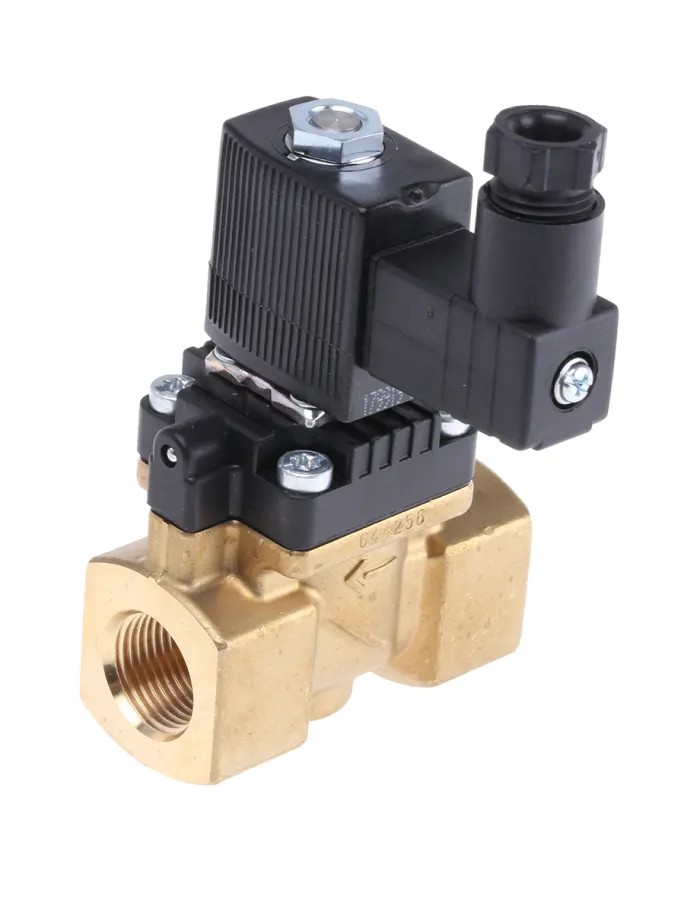

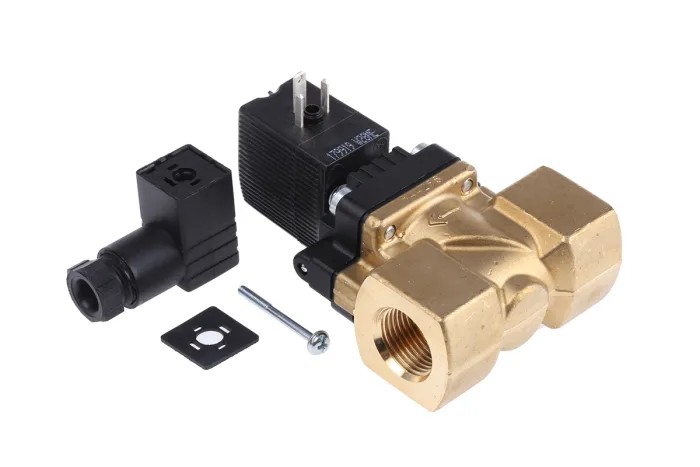

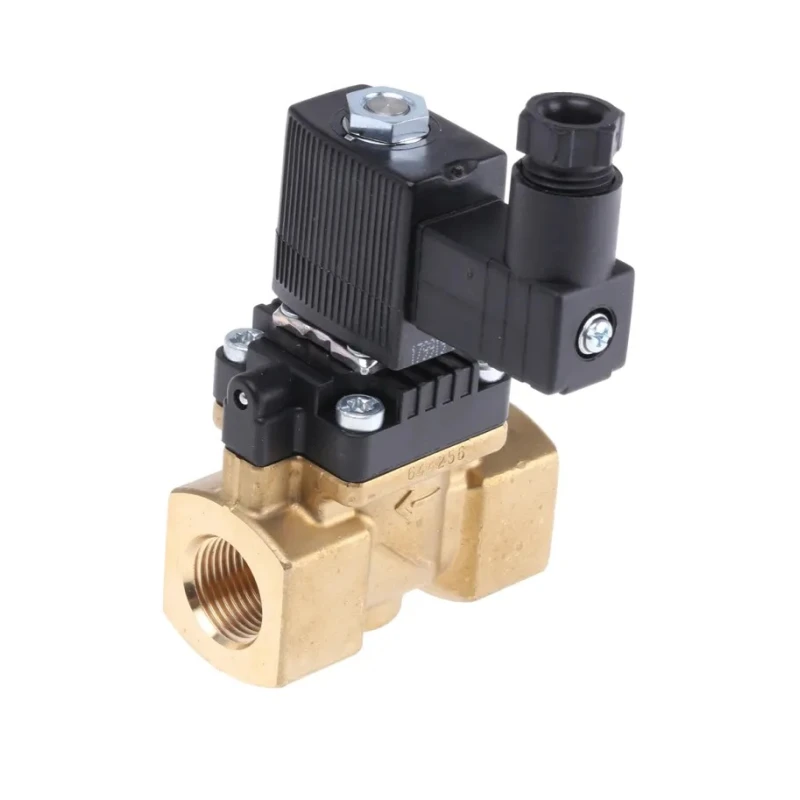

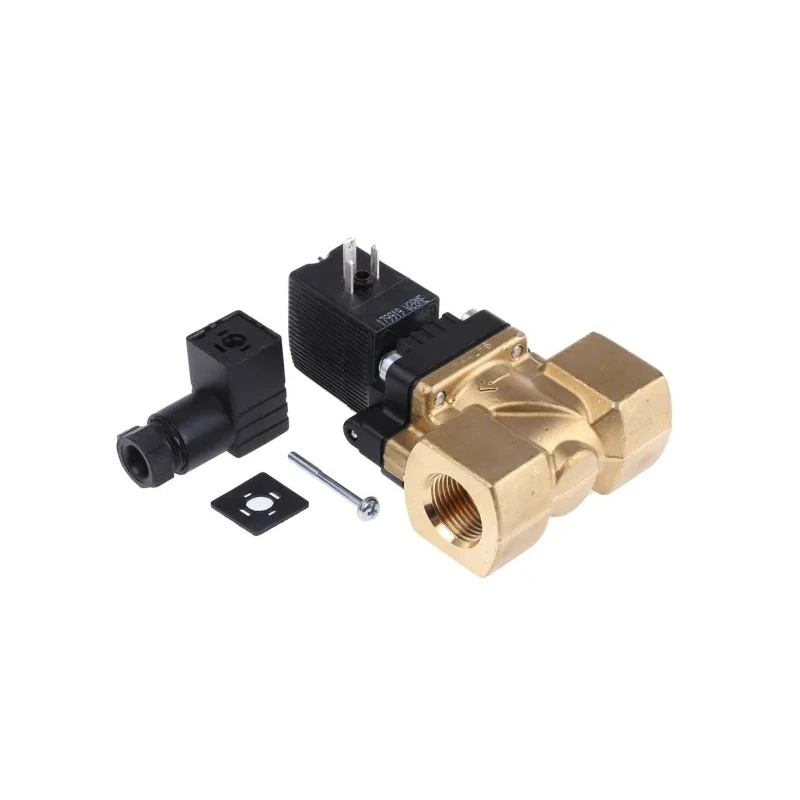

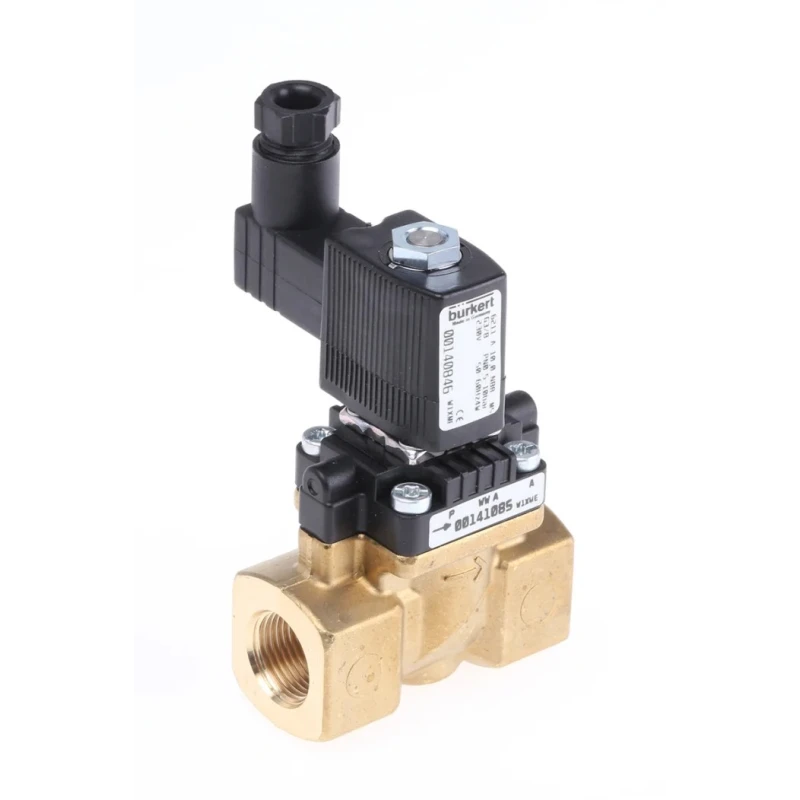

Burkert 2 Port NC Brass Solenoid Valve 230V AC, 10mm Orifice, 10 Bar Max Pressure 140846

Burkert 140846 Solenoid Valve is a high-quality 2-port normally closed valve operating at 230V AC, designed for use in precise fluid control applications in industrial environments. Featuring a brass body and servo diaphragm, it ensures durability and soft closing function with minimal water hammer effects, suitable for handling liquids, neutral gases, air, oils, hot water up to 70°C, and alkaline detergents.

The valve’s 10mm orifice diameter and flow factor Kv of 1.9 m³/h enable efficient medium pressure fluid flow up to 10 bar. Its operating temperature range from 0°C to 55°C makes it ideal for various industrial environments, supported by a reliable energy-saving AC07 coil consuming only 4W power.

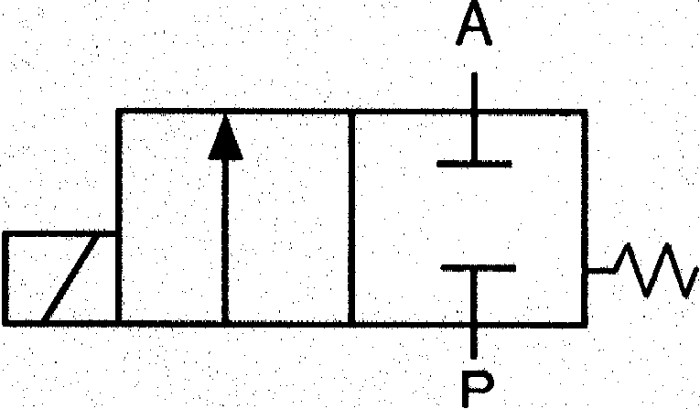

With a maximum opening time of 240ms and closing time of 130ms, this valve offers quick response for fluid control systems. The normally closed position is maintained by spring force, and when energized, the pilot valve opens first allowing medium pressure to open the main valve smoothly.

The valve is UR/CSA approved and rated IP65, ensuring protection against dust and water ingress, suitable for industrial, manufacturing, HVAC, water treatment, and process automation applications.

This brass solenoid valve supports liquid, neutral gas, and other compatible mediums with stable and reliable operation. The servo assist design ensures high precision opening/closing and reduces water hammer impact in pipelines.

The compact size and high-quality components contribute to ease of installation and long service life. Maximum working pressure of 10 bar suits a wide range of industrial fluid systems. Efficient energy-saving coil reduces operational power consumption to 4W.

Choose Burkert 140846 for reliable Solenoid Valve performance across applications in plumbing, fluid power, and automated process control. Explore more industrial valves and fittings in EnvMart’s comprehensive catalog to suit your system requirements.
