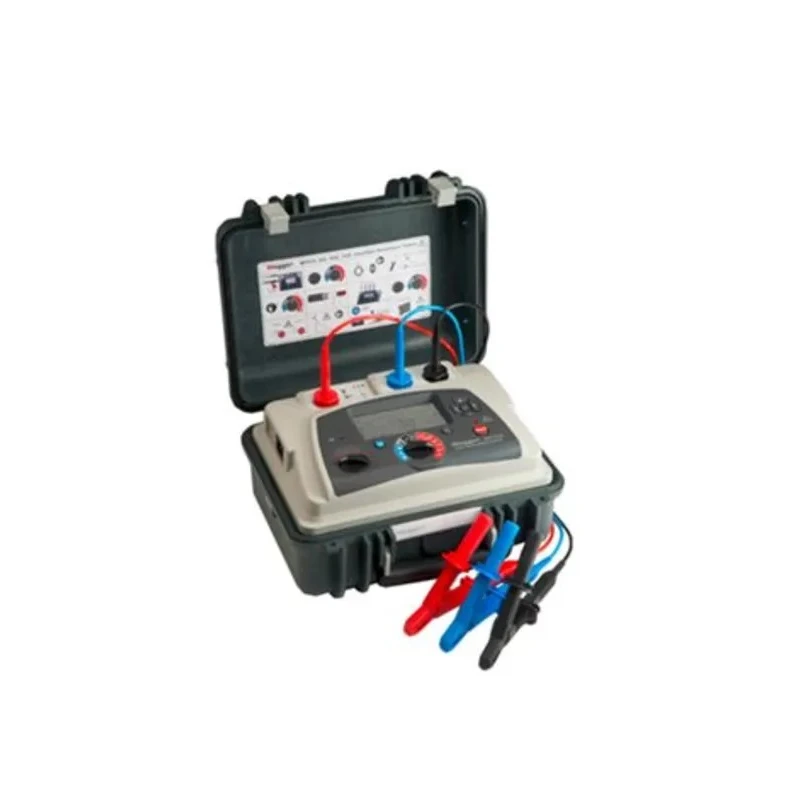

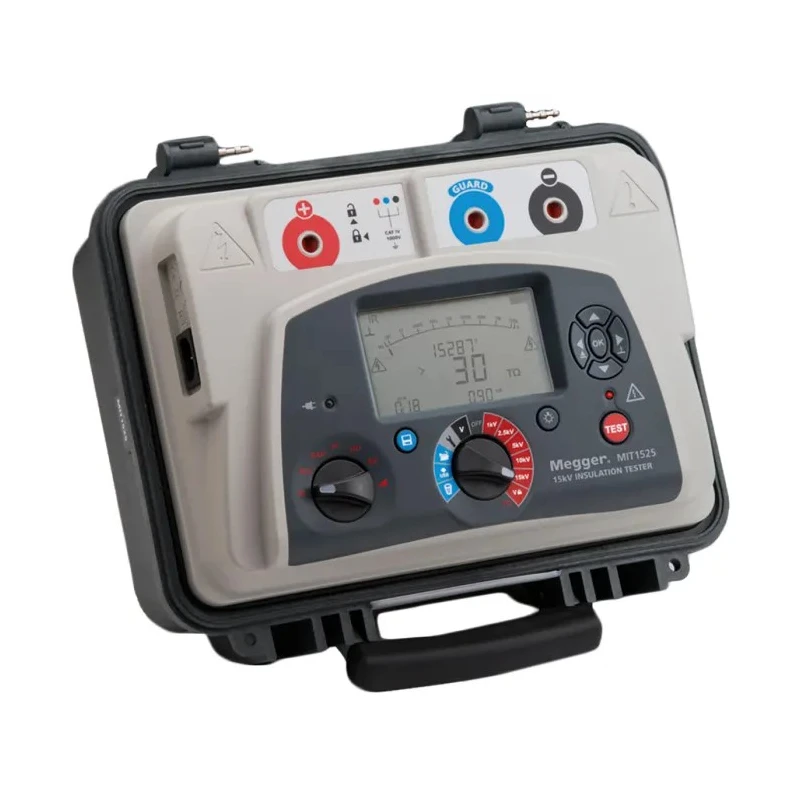

Megger Insulation Tester 1 kV Min, 15 kV Max, 3 mA Test Current, Lithium-ion Battery Powered MIT1525

Megger MIT1525 Insulation Tester is a high-performance instrument designed for electrical insulation testing ranging from 1 kV to 15 kV with a 3 mA test current, powered by rechargeable lithium-ion batteries or direct mains supply. It is ideal for use in industrial, construction, petrochemical, manufacturing, and telecommunication sectors to ensure the safety and integrity of high-voltage electrical equipment.

The tester features a user-friendly interface with a backlit LCD display, allowing easy reading even in low-light and demanding environmental conditions. It provides protection against dust and water ingress with an IP65 rated case when closed, ensuring longevity and reliable performance under harsh site conditions.

The MIT1525 can operate continuously for 4.5 hours on its lithium-ion battery pack, providing efficient and uninterrupted testing sessions. Additionally, it can be powered directly from AC mains, facilitating quick startup and reducing downtime.

This model supports real-time diagnostics and data logging, with results that can be safely transmitted to a computer via a fully isolated USB port. The insulation resistance capability reaches up to 30 TΩ, making it suitable for detailed and sensitive measurements required in high-voltage systems.

The instrument’s compact size (360 mm height, 305 mm length, 194 mm width) and weight (6.5 kg) make it robust yet portable. It meets the IEC 61326-1 standard, ensuring adherence to international safety and electromagnetic compatibility requirements. The tester is rated CAT IV at 1 kV for enhanced safety during electrical testing.

Recommended applications include rigorous insulation testing in construction plants, manufacturing facilities, petrochemical industries, and telecommunication networks. It is engineered to perform reliably in temperature extremes from -20°C up to +50°C, accommodating varied industrial environments.

Choose the Megger MIT1525 Insulation Tester for dependable, safe, and precise high-voltage insulation measurements, contributing to the maintenance and safety compliance of electrical installations.

Explore the full range of high-quality Insulation Testers and measurement instruments available in the Industrial Machines & Instruments category at EnvMart. Equipped with a backlit LCD for clear readings in low-light environments.

Operates continuously for up to 4.5 hours on lithium-ion battery power or from mains supply. Designed for durability with an IP65 rated case protecting against dust and water jets. Operates reliably in harsh conditions between -20°C and 50°C.

Features a fully isolated USB port for safe data transfer to computers. Suitable for use in construction, manufacturing, petrochemical, and telecommunication industries. Tests insulation resistance up to 30 Teraohms with high precision.

Conforms to IEC 61326-1 safety and quality standards.
