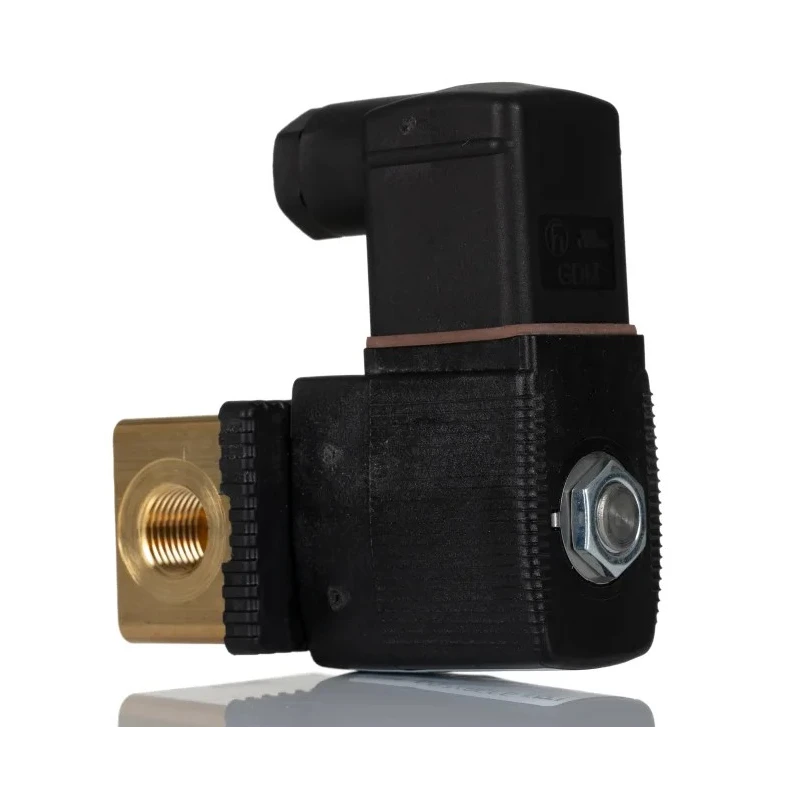

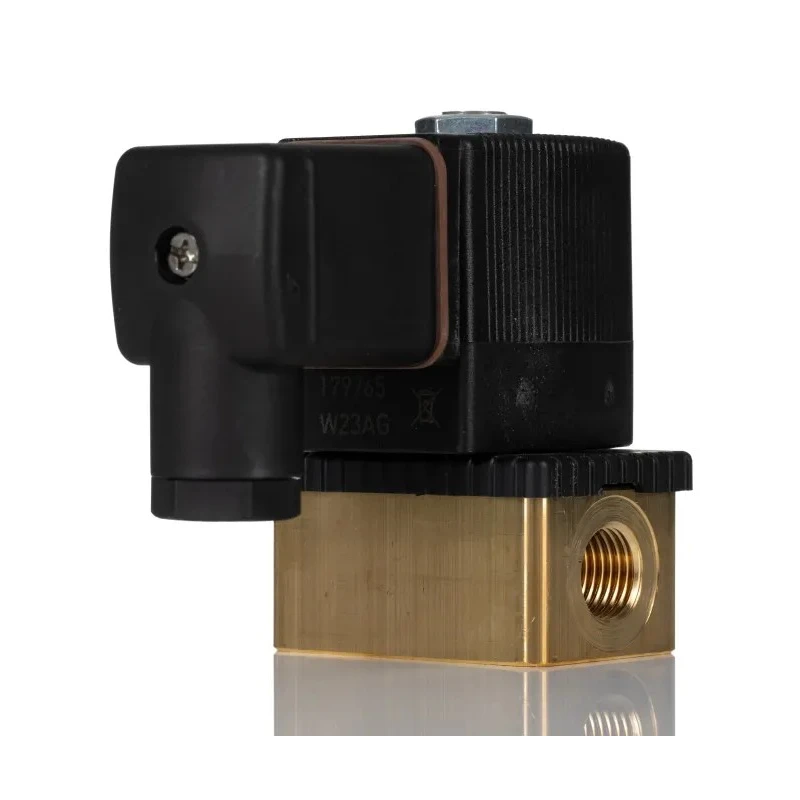

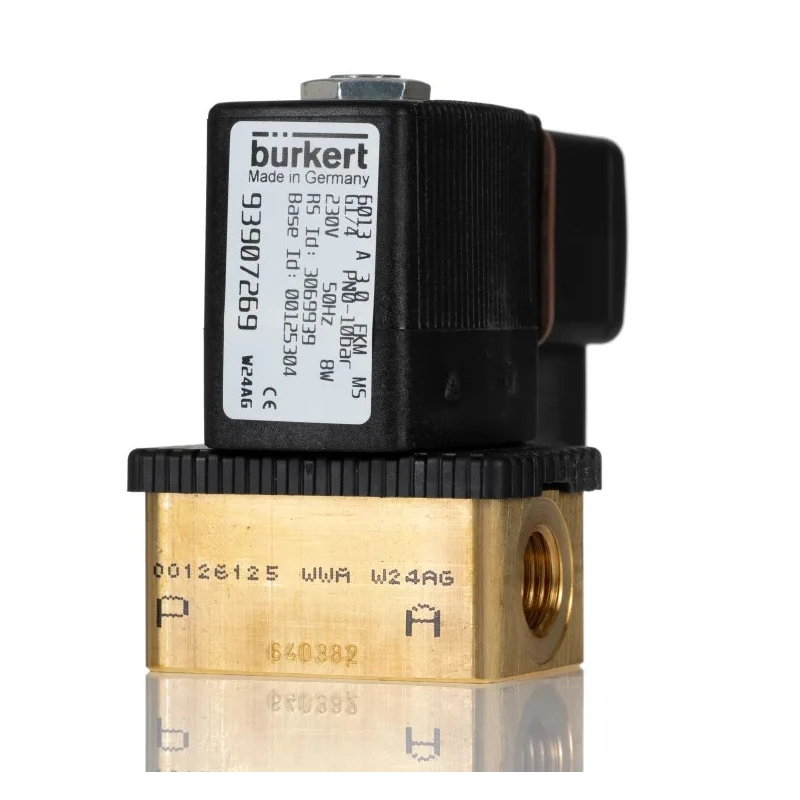

Burkert 2 Port NC Brass Body Solenoid Valve 230V AC, 3 mm Orifice Diameter, Series 6013 125304

Burkert 125304 is a 2 Port Normally Closed (NC) solenoid valve with a brass body, designed for a supply voltage of 230V AC and an orifice diameter of 3 mm. It belongs to the Series 6013, featuring a vibration-proof bolted coil system and high-quality FKM seal material, providing excellent pressure resistance and leak tightness.

The valve is suitable for controlling liquids and neutral gases such as compressed air, natural gas, water, and hydraulic oil within an operating temperature range of -10°C to 55°C and can withstand maximum operating pressures up to 10 bar. The coil can be changed easily with the valve in place and locked in four 90° positions or moved freely between, providing installation flexibility.

This direct-acting, compact valve design supports pipelines up to DN 6.0, with a flow factor Kv of 0.23 m³/h, and fast operation characterized by a maximum opening time of 20 milliseconds and closing time of 30 milliseconds. It is well-suited for applications in pneumatic control systems, shut-off functions, dosing, filling, venting, laboratory and measuring technology, as well as welding technology.

The valve's robust construction and reliability make it an excellent choice for industrial, laboratory, HVAC, and manufacturing sectors. With German manufacturing standards, this solenoid valve ensures longevity and optimal performance under demanding conditions.

Operates at 230V AC supply voltage. Brass body with polyamide coil for enhanced durability. Maximum operating pressure of 10 bar. Operating temperature range: -10°C to 55°C. Vibration-proof bolted coil system with FKM seal.

Maximum opening time: 20 ms; closing time: 30 ms. Coil replacement without valve removal; multiple locking positions. Direct-acting valve suitable for DN 6.0 pipelines. Flow factor (Kv): 0.23 m³/h. Applications include pneumatic control, laboratory instruments, welding technology.
