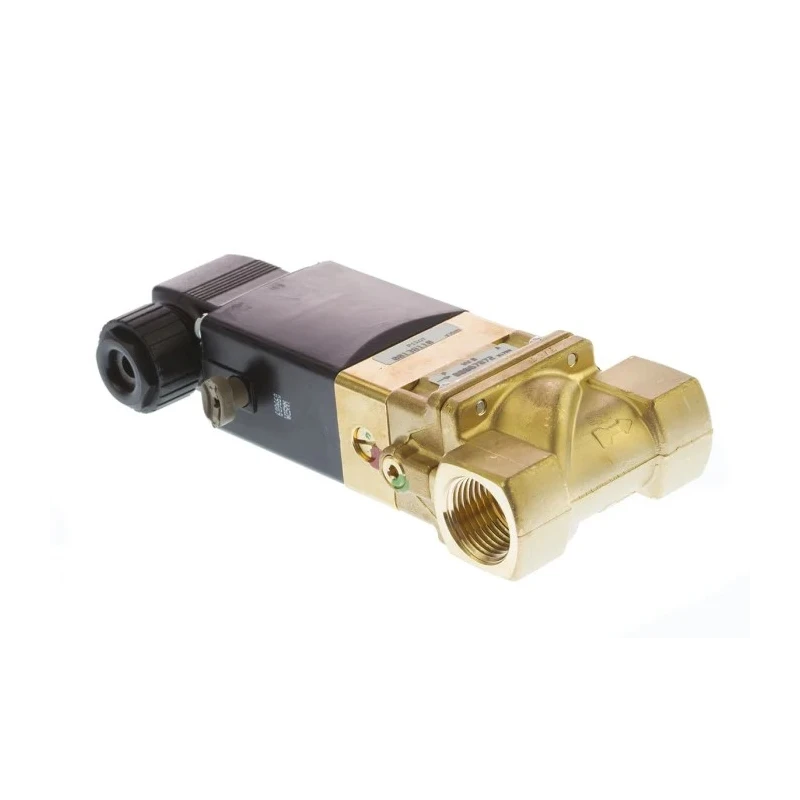

Burkert 2 Port NC Solenoid Valve 230V AC Brass Body 13mm Orifice Diameter 10 bar Max Pressure 134433

The Burkert 134433 solenoid valve is a robust, industrial-grade 2 port normally closed valve designed for reliable control of neutral gases and liquids. Operating at 230V AC, this valve features a corrosion-resistant brass body and a 13mm orifice diameter, making it suitable for various fluid power applications.

Its servo-assisted diaphragm valve design incorporates a separating diaphragm seal that protects the coil from the effects of challenging applications and reduces sensitivity to dirty fluids, enhancing durability.

The valve maintains a maximum operating pressure of 10 bar and operates efficiently within a temperature range of 0°C to 55°C. With a flow factor Kv of 4 cubic meters per hour, it supports smooth fluid flow with rapid response times - maximum opening time is 0.8 seconds and maximum closing time is 4 seconds, both controlled by integrated restrictor screws.

This model includes a lockable manual override as a standard feature and utilizes NBR seal material to ensure dependable sealing. The solenoid valve is also IP65 rated, providing resistance against dust and water ingress for industrial and laboratory environments.

Manufactured to meet European standards for drinking water, this valve is ideally suited for neutral media applications in industries such as water treatment, HVAC, manufacturing, and construction. The product is made in Germany, assuring high quality and precision engineering.

Operates at 230V AC supply voltage. 2 port normally closed valve design. Brass construction ensures corrosion resistance. Maximum operating pressure of 10 bar. Operating temperature range from 0°C to 55°C. Servo-assisted diaphragm valve for durability.

High flow factor Kv of 4 cubic meters per hour. Controlled opening and closing times. Lockable manual override standard. NBR seal material for effective sealing. IP65 rated for dust and water protection. Explore the Burkert Solenoid Valves collection and other industrial valves at EnvMart for reliable fluid handling solutions.
