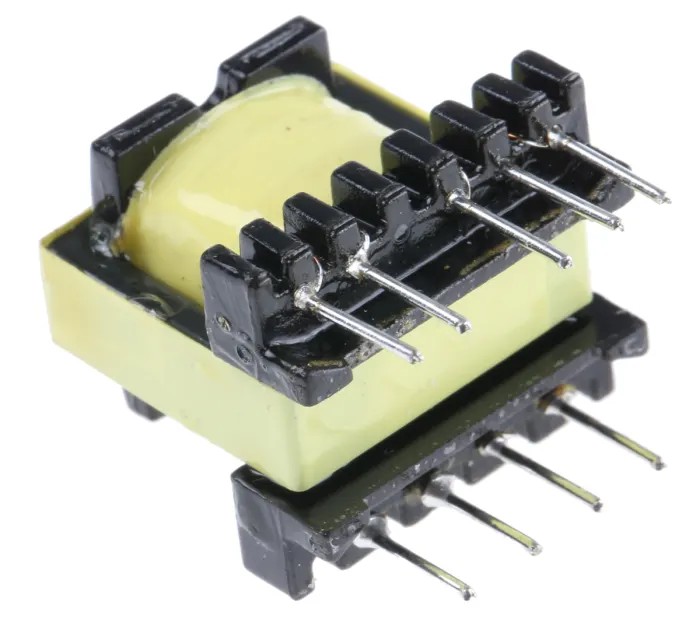

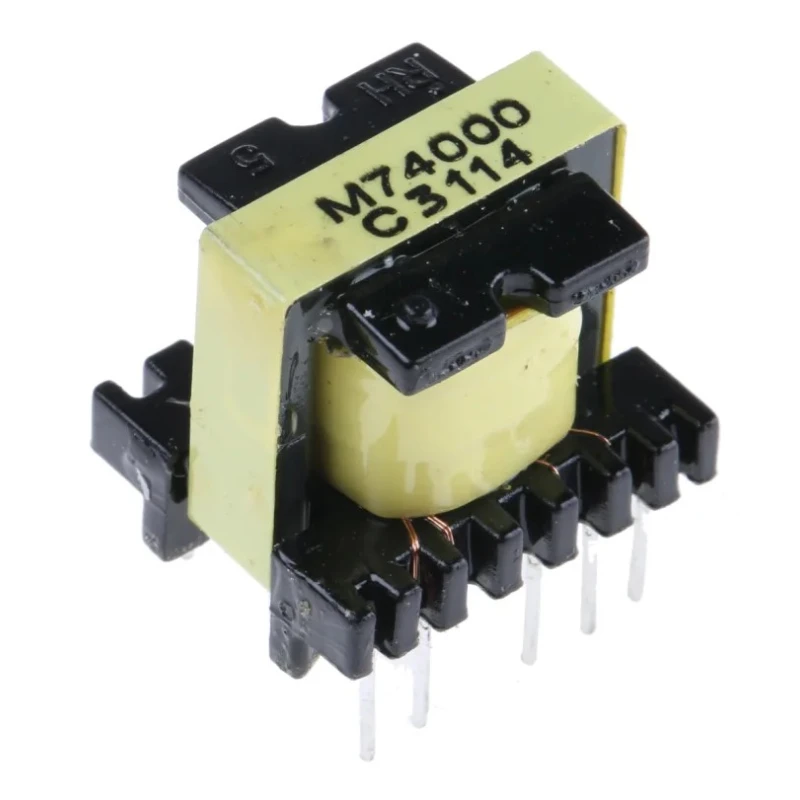

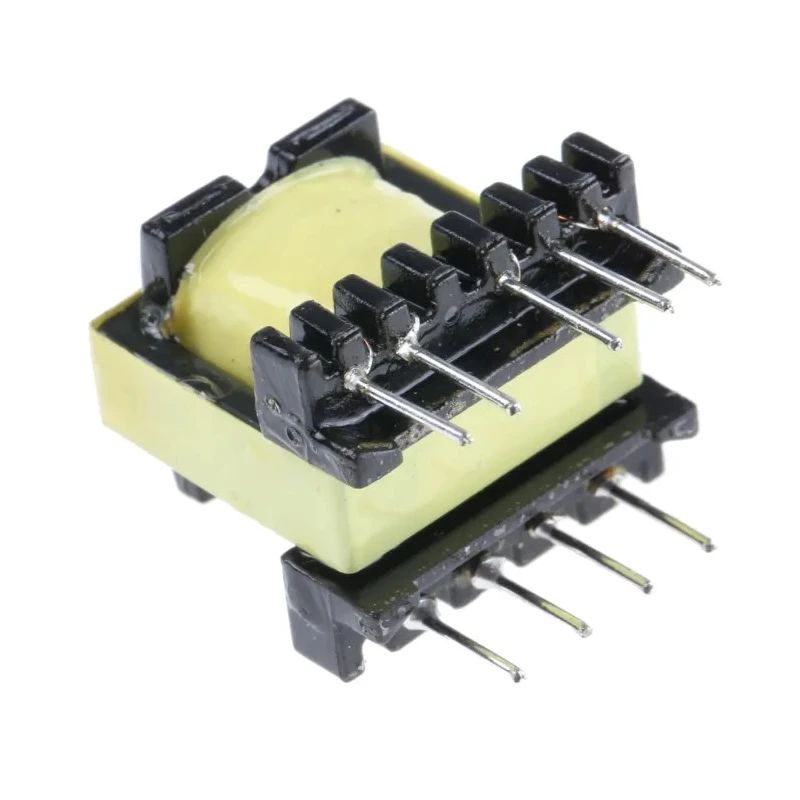

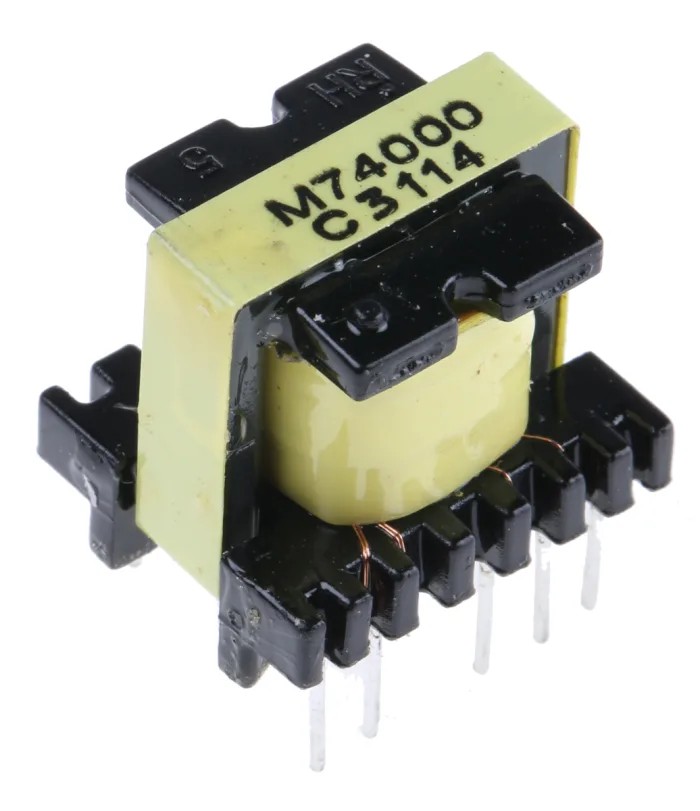

Myrra 10 Output SMPS Transformer 110 W Power, 265 V ac Primary, 2 to 18 V dc Secondary, 3900 μH Inductance 74000

Free Delivery in India | Lowest Global Shipping Charges

Myrra 10 Output SMPS Transformer 110 W Power, 265 V ac Primary, 2 to 18 V dc Secondary, 3900 μH Inductance 74000

Name: Myrra 10 Output SMPS Transformer 110 W Power, 265 V ac Primary, 2 to 18 V dc Secondary, 3900 μH Inductance 74000
Brand: Myrra
SKU: 120603



Category Power Supplies & Transformers Brand Myrra Condition New

Specifications

Country of Origin	France
Brand	Myrra
Power	110W
Model	74000
Series	EE16
Maximum Operating Temperature	50°C
Secondary current	0.21, 2A
Number of outputs	10
Inductance	3900μH
Standards/Approvals	CEI61558, CEI950, CEI335
Isolation Voltage	3750V ac
Primary Voltage	265 V ac
Secondary Voltage	2 to 18 V dc
Minimum Operating Frequency	40kHz
Maximum Operating Frequency	100kHz

Key Features

Offers a total power output of 110 W suitable for switch mode power supplies.
Features 10 independent secondary outputs with voltage range from 2 V to 18 V dc.
Primary operating voltage is 265 V ac with inductance of 3900 μH.
Secondary current ranges from 0.21 A to 2 A adapting to different load requirements.
Maximum operating temperature rated at 50°C ensuring reliable performance.
Meets international standards CEI61558, CEI950, and CEI335 for safety and reliability.
Constructed using EE16 series bobbin with full varnish impregnation for insulation.
Designed as open frame, laminated PCB mounting transformer for easy installation.

Product Description

Myrra 74000 is a 10 output SMPS transformer delivering 110 W of power with a primary voltage of 265 V ac and secondary voltage ranging between 2 to 18 V dc. It is designed specifically for use in switch mode power supply applications, providing multiple independent secondary outputs to accommodate varied voltage needs.

The transformer features an inductance of 3900 μH and is rated to handle secondary currents between 0.21 A and 2 A. It supports a maximum operating temperature of 50°C, which ensures dependable performance in demanding electronic environments.

Constructed with an EE16 series bobbin and fully impregnated with varnish, this open frame laminated transformer is well-suited for PCB mounting. The materials comply with UL94-V0 standards guaranteeing flame retardancy and high safety levels.

The isolation voltage rating of 3750 V ac and adherence to CEI61558, CEI950, and CEI335 standards offers reinforced insulation to meet industrial safety requirements. Its operating frequency range spans from 40 kHz minimum to 100 kHz maximum ensuring efficient power conversion in high-frequency circuits.

This transformer is ideal for use in various industrial, laboratory, and commercial applications requiring robust and reliable power supply transformers. Typical integration includes association with specialized circuits such as VIPer, TOPSwitch, or CoolSet controlled by Mosfets.

Offers a total power output of 110 W suitable for switch mode power supplies. Features 10 independent secondary outputs with voltage range from 2 V to 18 V dc. Primary operating voltage is 265 V ac with inductance of 3900 μH.

Secondary current ranges from 0.21 A to 2 A adapting to different load requirements. Maximum operating temperature rated at 50°C ensuring reliable performance. Meets international standards CEI61558, CEI950, and CEI335 for safety and reliability.

Constructed using EE16 series bobbin with full varnish impregnation for insulation. Designed as open frame, laminated PCB mounting transformer for easy installation. Offers reinforced insulation with isolation voltage of 3750 V ac.

Operates efficiently in frequency range of 40 kHz to 100 kHz. Explore more power supply transformers and electronic components at EnvMart for trusted performance and quality assurance.
