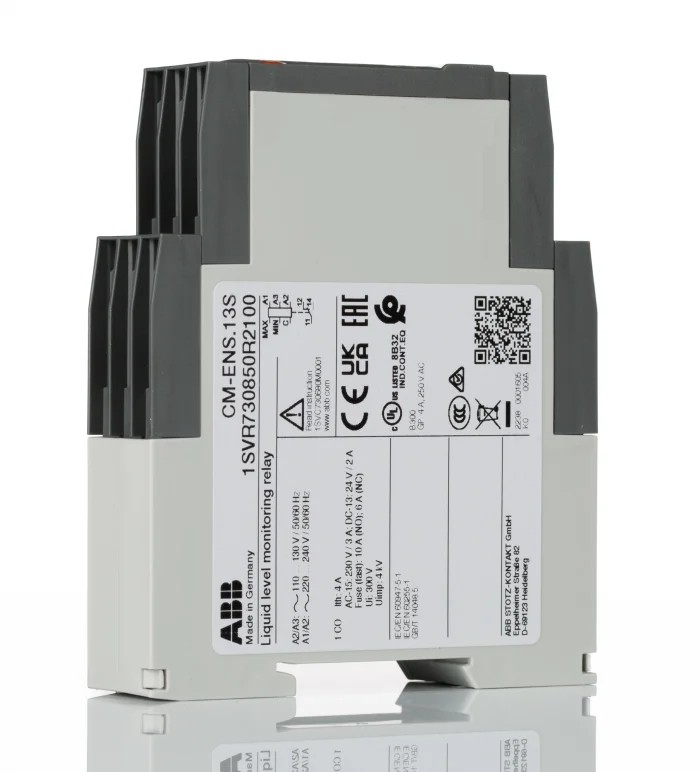

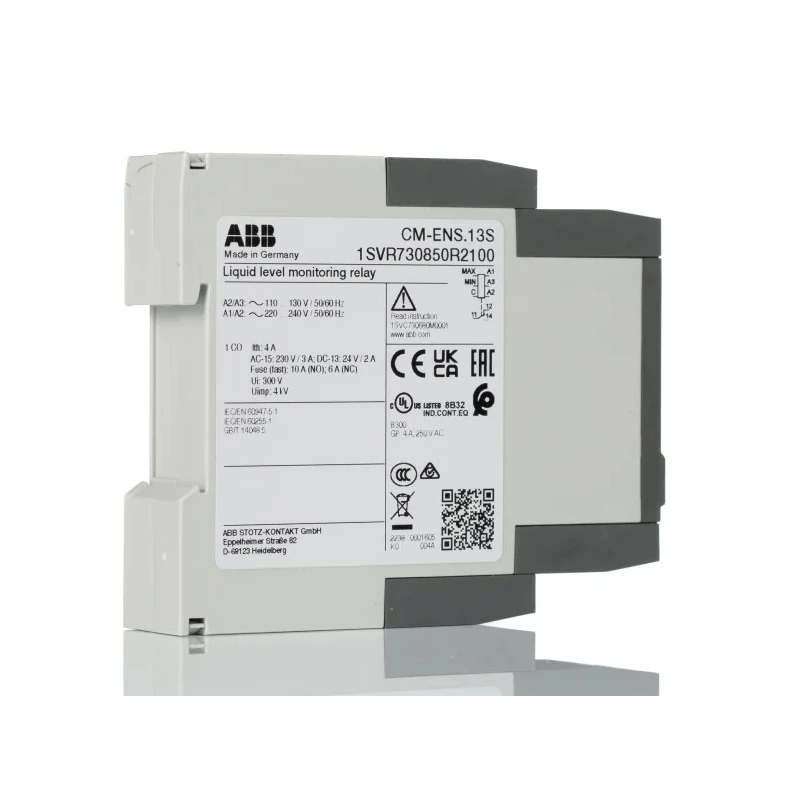

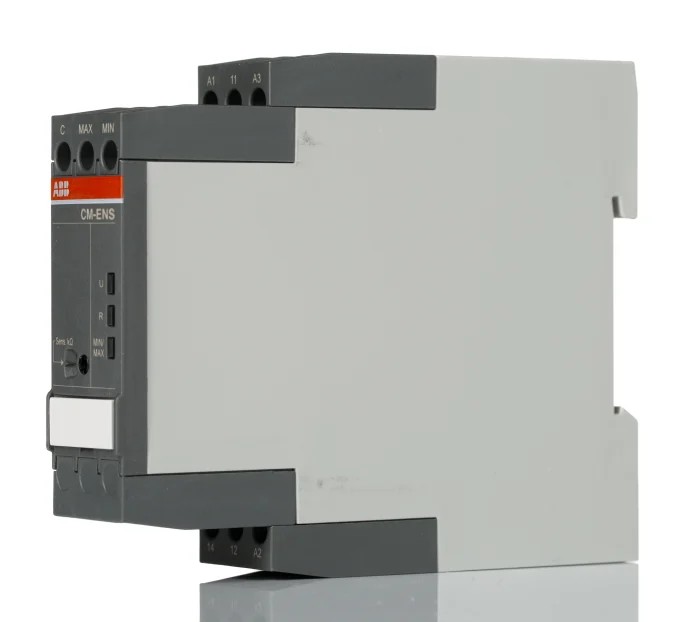

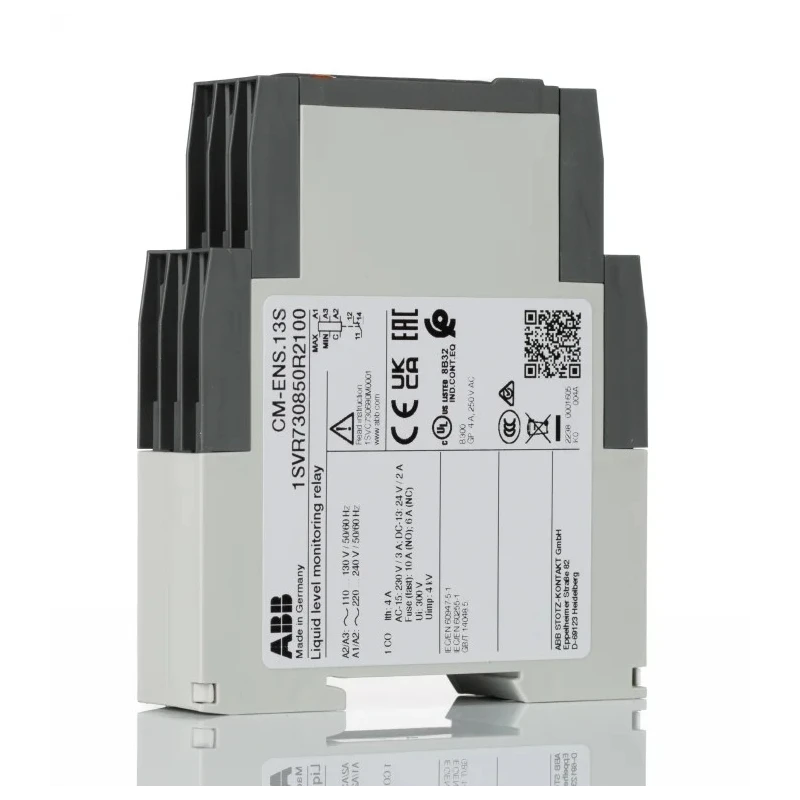

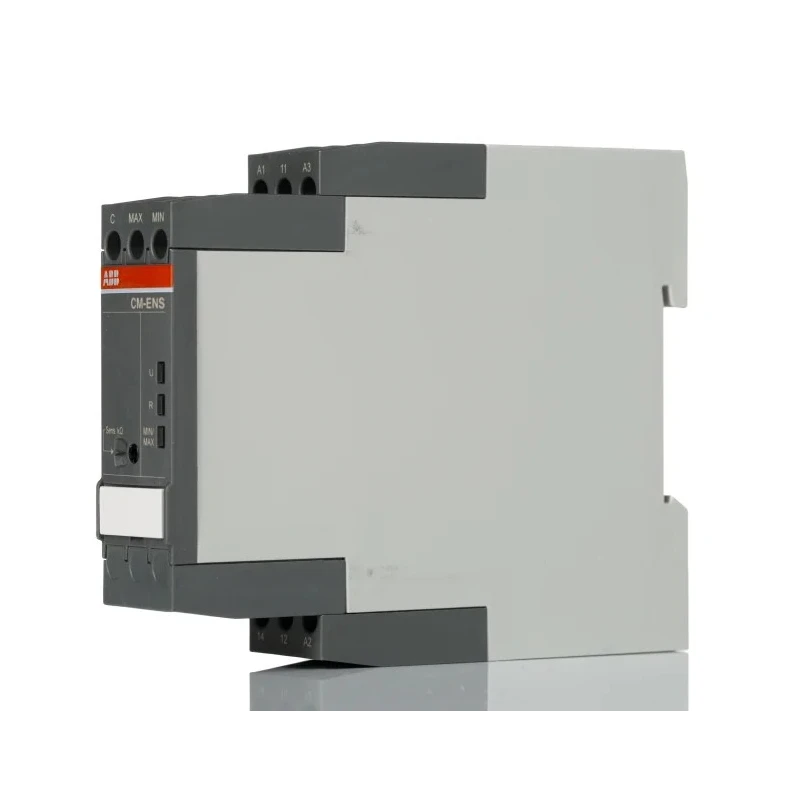

ABB CM-ENS Series Liquid Level Relay DIN Rail Mount Voltage Input 240V AC Rated SPDT Relay 1SVR730850R2100 CM-ENS.13S

ABB 1SVR730850R2100 CM-ENS.13S Liquid Level Relay is designed for precise monitoring and control of conductive fluid levels in industrial environments. This DIN rail mountable relay operates with a 240V AC voltage input and features a single-pole double-throw (SPDT) relay output, enabling it to robustly manage overflow and dry running conditions.

Engineered with an IP50 and IP20 rating, the unit is protected against dust ingress and suitable for use in diverse locations with varying environmental conditions. Its screw terminal type ensures straightforward, secure connections while the compact 22.5mm width housing allows for efficient panel space usage.

The device performs reliably across a temperature range of -25°C to 60°C, making it suitable for numerous industrial settings including electronics manufacturing, chemical plants, and automotive production lines.

Key features include an intuitive three-colour traffic light LED system that provides clear operational status at a glance, and a rapid maximum startup time of 1.3 seconds to reduce downtime during system initiations. The relay contacts are made from high-quality silver-nickel alloy which offers excellent mechanical strength, resistance to electrical stress, and efficient conduction.

The CM-ENS series relays are known for environmental friendliness and high fire protection standards. This model supports sensitive monitoring with a 100kΩ sensitivity level, ensuring precise control and measurement accuracy. Compliance with relevant IEC, UL, and CSA standards assures integration into certified industrial systems.

This Liquid Level Relay is ideally suited for applications requiring rigorous level control, including overflow and dry run protection, thus preventing operational failures. Installation is simplified through tool-free DIN rail mounting and user-friendly terminal options.

Operates with 1 voltage input and rated at 240V AC supply. Mounts easily on DIN rail with screw terminal connections. Provides SPDT relay output for reliable switching. IP50 rating protects against dust ingress and environmental factors.

Features LED status indicator for operational monitoring. Functional temperature range from -25°C to 60°C for versatile use. Complies with international standards including IEC and UL approvals. Utilizes silver-nickel alloy contacts for high tensile strength and electrical efficiency.

Designed for overflow and dry run protection in fluid control applications. Mechanical lifetime up to 10 million switching cycles ensuring durability.

Environmentally conscious manufacturing, safety compliance, and long-lasting durability make this ABB CM-ENS series relay a trusted component for liquid level monitoring and automation in industrial, chemical, automotive, and electronics manufacturing applications. Explore more solutions in the Level Controllers category at EnvMart for comprehensive liquid level control needs.
