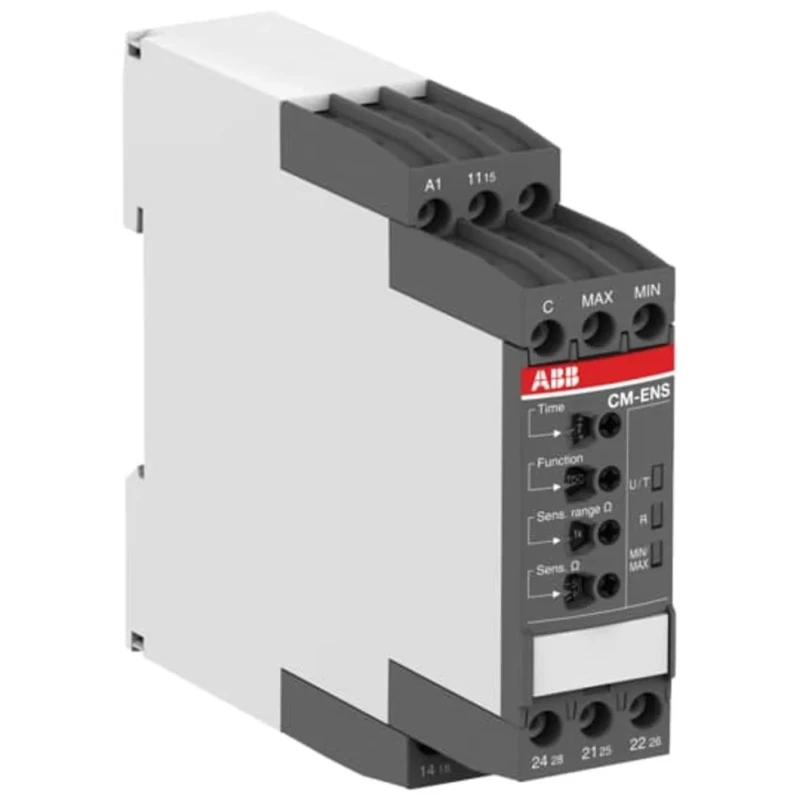

ABB CM-ENS Series Liquid Level Relay DIN Rail Mount 1 Input Voltage 240V AC/DC Rated SPDT Relay 1SVR730850R0300 CM-ENS.31S

Free Delivery in India | Lowest Global Shipping Charges

ABB CM-ENS Series Liquid Level Relay DIN Rail Mount 1 Input Voltage 240V AC/DC Rated SPDT Relay 1SVR730850R0300 CM-ENS.31S



Category Liquid Level Relay Brand ABB Condition New

Specifications

Country of Origin	Germany
Voltage	Input 240V ac/dc-Rated SPDT Relay RS Stock No
Brand	ABB
Model	1SVR730850R0300 CM-ENS.31S
SENSITIVITY	1000kΩ
IP Rating	IP20, IP50
Mount Type	DIN Rail
Overall Length	113.4mm
Current Rating	11mA
Number of inputs	1
Output type	SPDT Relay
Series	CM-ENS
Overall Width	22.5mm
Input Type	Voltage
Maximum Operating Temperature	60°C
Minimum Operating Temperature	-25°C
Number of outputs	1
Terminal type	Screw
Maximum Supply Voltage	240V ac/dc
Overall Depth	113.4mm

Key Features

Compact DIN Rail mount design with dimensions 113.4mm length, 22.5mm width, and 113.4mm depth.
Rated for input voltage up to 240V AC/DC ensuring reliable operation.
Adjustable sensitivity from 0.1 to 1000kΩ for flexible liquid level monitoring.
Equipped with SPDT relay output and single input for simple integration.
Screw terminals provide secure and reliable electrical connections.
LED indicators enable quick and convenient operational diagnostics.
Flame-retardant housing enhances safety by preventing fire spread.
Operates reliably between temperature ranges of -25°C to 60°C.

Product Description

ABB 1SVR730850R0300 CM-ENS.31S Liquid Level Relay is a precision control device designed for monitoring conductive liquid levels. It features a DIN Rail mountable housing with compact dimensions of 113.4mm (L) × 22.5mm (W) × 113.4mm (D), making it suitable for efficient panel mounting and board packing.

This relay supports a single input voltage of 240V AC/DC with a rated SPDT relay output that provides reliable switching to control pumps or alarms based on liquid levels. The device offers adjustable sensitivity ranging from 0.1 kΩ to 1000 kΩ, allowing calibration for various liquid types and operating conditions.

The front panel includes a potentiometer for easy manual adjustment of sensitivity and a selectable on/off delay to prevent nuisance tripping due to rapid level changes. LED indicator lights provide real-time visual diagnostics for operational state verification.

Constructed with a flame-retardant housing for enhanced safety, this relay operates effectively within -25°C to 60°C, and is rated for IP20 and IP50 protection levels, suitable for a variety of industrial environments. The screw terminal connections ensure secure wire retention and minimal maintenance.

ABB's CM-ENS Series relays meet stringent standards, including CAN/CSA C22.2 No.14, IEC/EN 60255-27, IEC/EN 60947-5-1, IEC/EN 61000-6-2, IEC/EN 61000-6-3, and UL 508. However, it does not carry hazardous area certifications.

This relay finds applications across wastewater management, power utilities, food and beverage industries, and pharmaceutical manufacturing, providing reliable liquid level control and dry running or overflow protection.

Set contains: 1 Pc ABB CM-ENS.31S Liquid Level Relay. Browse EnvMart for a comprehensive selection of ABB automation and control components to enhance your industrial systems. Compact DIN Rail mount design enables easy installation.

Adjustable sensitivity from 0.1 to 1000kΩ suits various liquid types. SPDT relay output provides reliable switching control. Flame-retardant housing improves operational safety. Wide temperature operation from -25°C to 60°C supports diverse environments.

Certified to international safety and performance standards. LED indicators allow quick operational diagnostics. Screw terminals ensure secure wire connections. Suitable for wastewater, food and pharmaceuticals industries.

Compact size allows efficient panel space usage.
