RS PRO Analogue Panel Ammeter 10 A AC Moving Iron Meter with 92 mm x 92 mm Cutout 1 % Accuracy 186-2459

RS PRO 186-2459 Analogue Panel Ammeter is engineered for accurate AC current measurements up to 10 A with 1 % accuracy and a reliable moving iron movement. The device features a 92 mm by 92 mm cutout size, making it ideal for industrial control panels and switchgear.

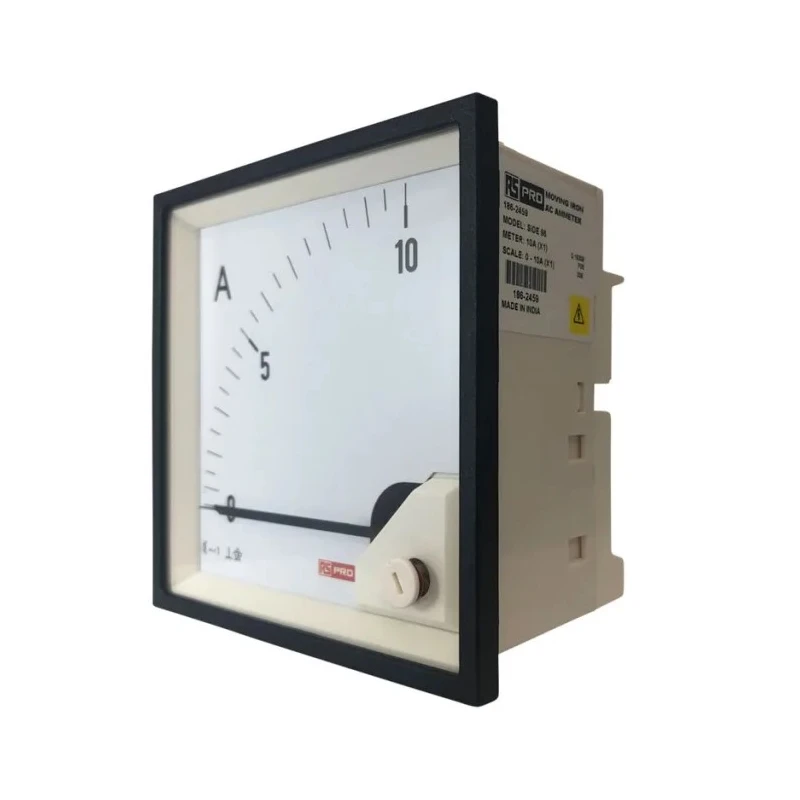

The robust polycarbonate moulded case provides durability and protection in various industrial environments including manufacturing, HVAC control, electrical distribution panels, and process control systems. Its moving iron element delivers true RMS value readings largely unaffected by waveform distortions, ensuring precise process monitoring.

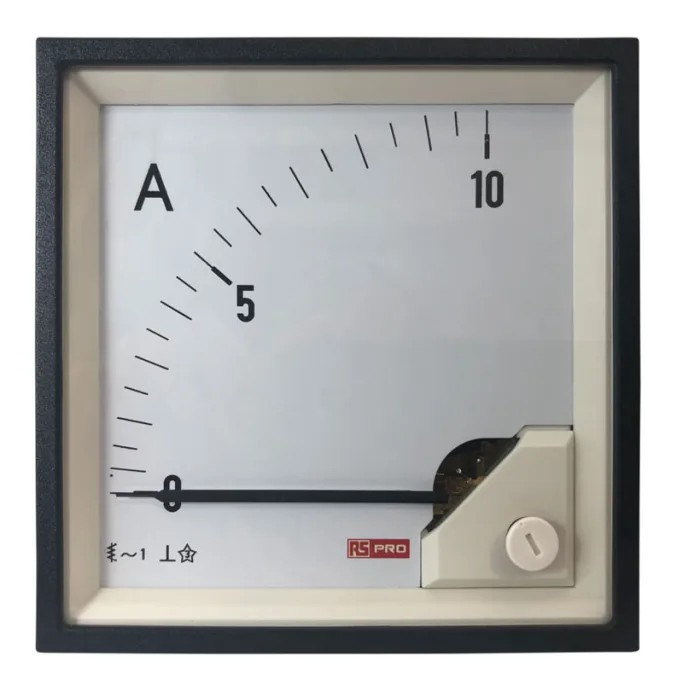

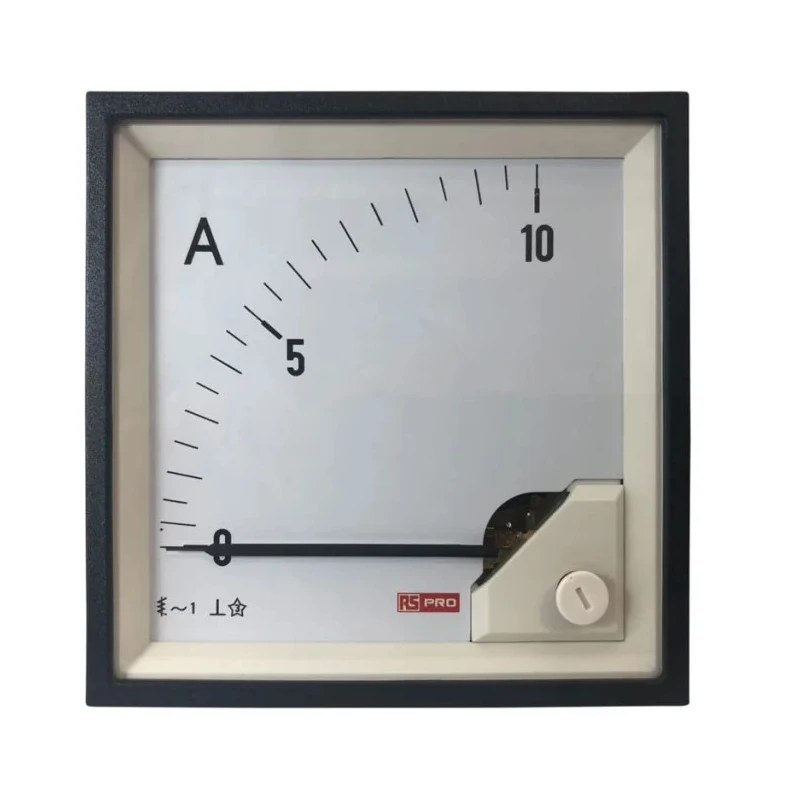

Operating between -10°C and 65°C, this panel meter withstands challenging temperature conditions. Its knife-edge pointer and 0° to 90° deflection angle allow clear and quick readability. The meter supports continuous overloads of up to twice its nominal current, suitable for measuring motor inrush currents using overload scale factors of X2, X3, X5, or X6.

Designed to operate effectively in frequencies ranging from 15 Hz to 400 Hz, the ammeter has strong shock resistance and tolerates pulse shocks of up to 15g. Relative humidity for operation is below 75% annual average, noncondensing.

Certifications include compliance with EN 61010, DIN IEC standards, VDE 0100-410:2018-10, IEC 61010, and IP52 ingress protection rating. It also meets UL 94 V-0 for case flammability and is CE marked for EMC and low voltage directives.

Measuring range from 0 to 10 amperes AC current. 1 % meter accuracy for precise readings. Compact 92 mm x 92 mm cutout dimension suitable for panel mounting. Durable polycarbonate moulded square case for industrial use. Operational temperature range from -10°C to 65°C.

Knife-edge type pointer with deflection from 0° to 90°. Overload capacity up to 2 times nominal current continuously. Designed for frequency range 15 Hz to 400 Hz. Shock resistant to 15g for pulse durations of 11 milliseconds.

Certified with EN 61010, UL 94 V-0, VDE 0100-410 and IEC standards.

This product is ideal for industrial, laboratory, HVAC, and electrical panel applications requiring reliable AC current measurement and monitoring. The ammeter enables precise control and safety assurance in machinery consoles, manufacturing, and process automation systems.
