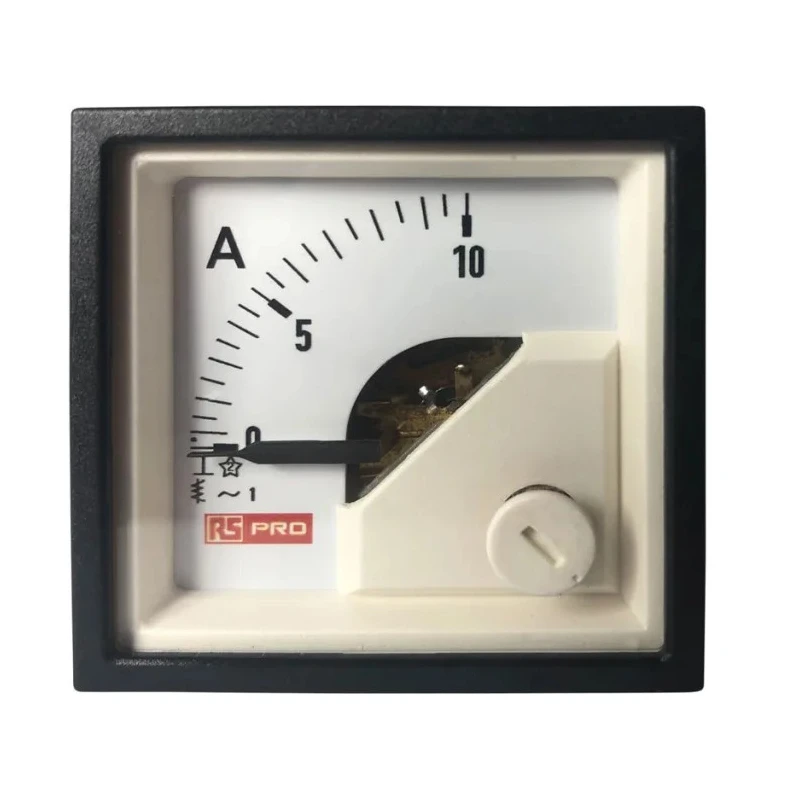

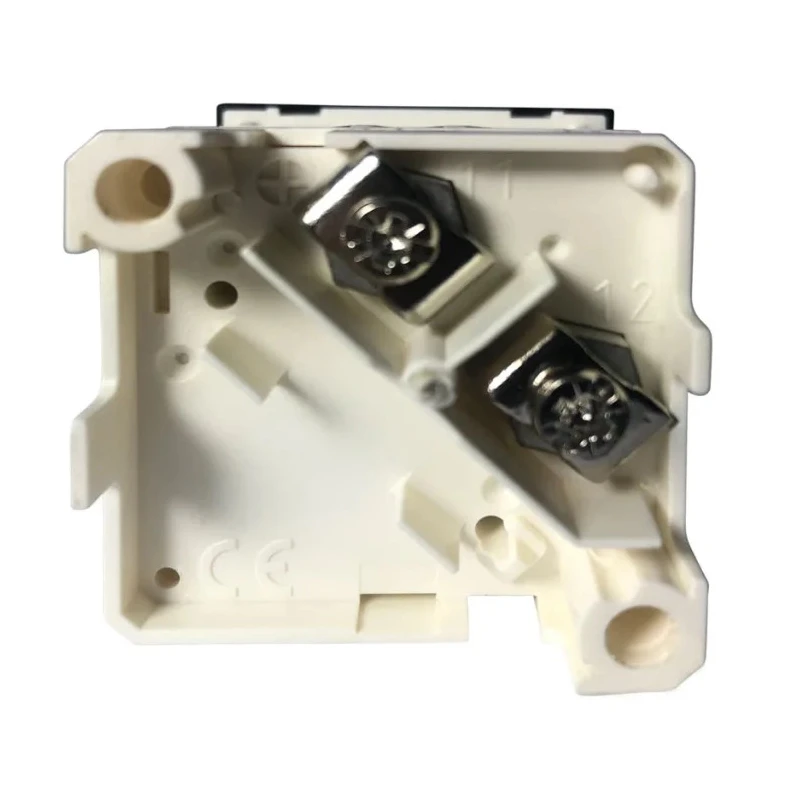

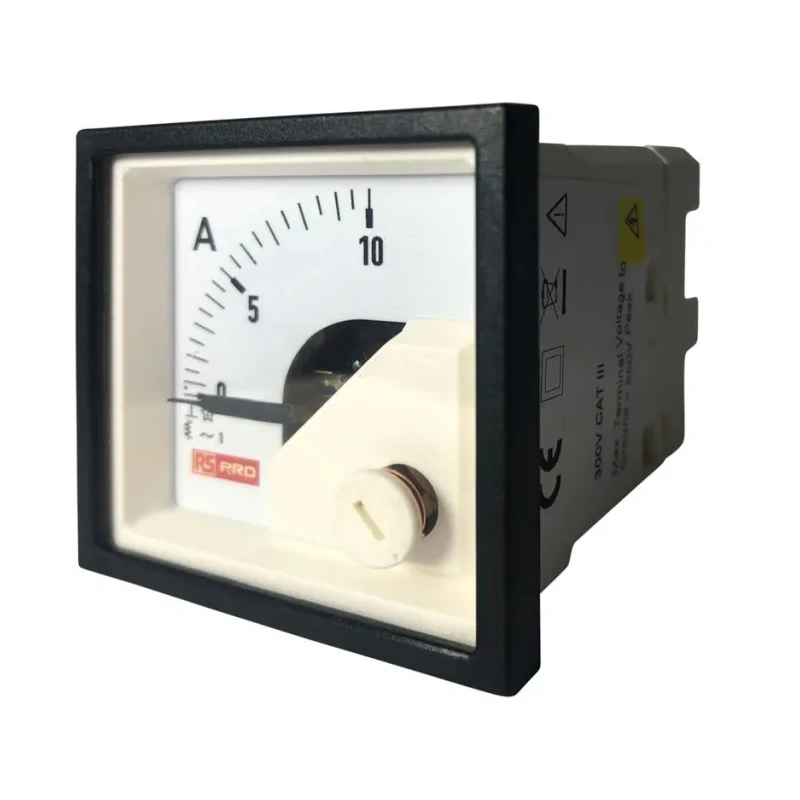

RS PRO Analogue Panel Ammeter 10 A AC, 45 mm x 45 mm, 1% Accuracy, Moving Iron 186-2413

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Analogue Panel Ammeter 10 A AC, 45 mm x 45 mm, 1% Accuracy, Moving Iron 186-2413

Name: RS PRO Analogue Panel Ammeter 10 A AC, 45 mm x 45 mm, 1% Accuracy, Moving Iron 186-2413
Brand: RS PRO
SKU: 82748
Price: 24.84 USD
Availability: InStock



Category Panel Meter Brand RS PRO Condition New

Specifications

Country of Origin	India
Relative Humidity	Less than 75% annual average (noncondensing)
Brand	RS PRO
Model	186-2413
Depth	54mm
Maximum Operating Temperature	65°C
Current Type	AC
Pointer	Knife-edge type
Meter Accuracy	1 %
Minimum Operating Temperature	-10°C
Shock Resistance	15g for pulse duration of 11 milliseconds
Overload	2 times nominal current (continuous)
Standards/Approvals	DIN 43718, DIN 43807, DIN 43701, VDE 0100-410:2018-10, EN 61010, IEC51/DINEN60051, IEC 529, UL 94 V-0, DIN 43802, IEC 61010, DIN IEC 61554, ISO 20653:2006-08
Cutout Height	45mm
Cutout Width	45mm
Maximum Measurement	10 A
Moving Element	Moving Iron
Maximum Ampere Value	10 A
Standards/Approvals DIN 43718, DIN 43807, DIN 43701, VDE 0100-410	2018-10, EN 61010, IEC51/DINEN60051, IEC 529, UL 94 V-0, DIN 43802, IEC 61010, DIN IEC 61554, ISO 20653:2006-08
AC Ammeter nominal range	100mA to 100A direct connection
Pointer deflection	0° to 90°
VDE 0100-410	2018-10 approved
ISO 20653	2006-08

Key Features

Analogue ammeter suitable for AC current measurement up to 10 A.
Employs a moving iron mechanism for accurate true RMS readings.
High-visibility 45 x 45 mm compact square case for easy panel integration.
1% meter accuracy ensures precise current monitoring.
Operates from -10°C to 65°C for industrial versatility.
Durable polycarbonate casing provides long service life.
Pointer deflection of 0° to 90° improves reading clarity.
Overload capacity allows handling of double the nominal current continuously.

Product Description

The RS PRO 186-2413 is a highly dependable analogue panel ammeter engineered for accurate measurement of AC currents up to 10 amperes. Incorporating a moving iron movement, this ammeter delivers true RMS measurement, making it substantially independent of the system waveform. Its compact form factor, with a 45 mm x 45 mm cutout and a 54 mm depth, is optimally designed for installation in control panels, switchgear, and machinery consoles.

This ammeter is constructed with a robust, moulded polycarbonate case that ensures reliable performance under demanding industrial conditions. Its 1% accuracy score assures users of precise monitoring, while the knife-edge type pointer and dial, calibrated down to 10% of the range, enable easily readable and quick assessments of circuit current values.

The RS PRO 186-2413 model offers a broad operational range, tolerating ambient temperatures from -10°C to 65°C, and it is equipped to withstand shocks up to 15g for durations of 11 milliseconds. Overload protection enables the instrument to handle continuous currents up to double its nominal rating. The device operates with a pointer deflection from 0° to 90°, facilitating rapid observation and response.

Integration of this panel ammeter is straightforward thanks to its universal panel cutout size and dedicated mounting configuration. It is suitable for direct connection with an AC ammeter nominal range from 100 mA to 100 A, making it versatile for a wide variety of industrial applications such as manufacturing, automation, process control, and energy monitoring panels.

Key functional and safety approvals include compliance with DIN, EN, IEC, UL, and ISO standards, supporting use in both domestic and international projects. The instrument is designed to operate effectively in noncondensing environments with annual average relative humidity under 75%.

Typical use cases include current measurement in electrical distribution boards, monitoring power consumption in process control systems, integration within automation panels, and routine industrial maintenance. The ammeter’s durable construction and precise measurement capability make it a reliable choice for long-term industrial applications.
