RS PRO Analogue Panel Ammeter 100 A AC, 92 mm x 92 mm, 1% Accuracy Moving Iron 186-2466

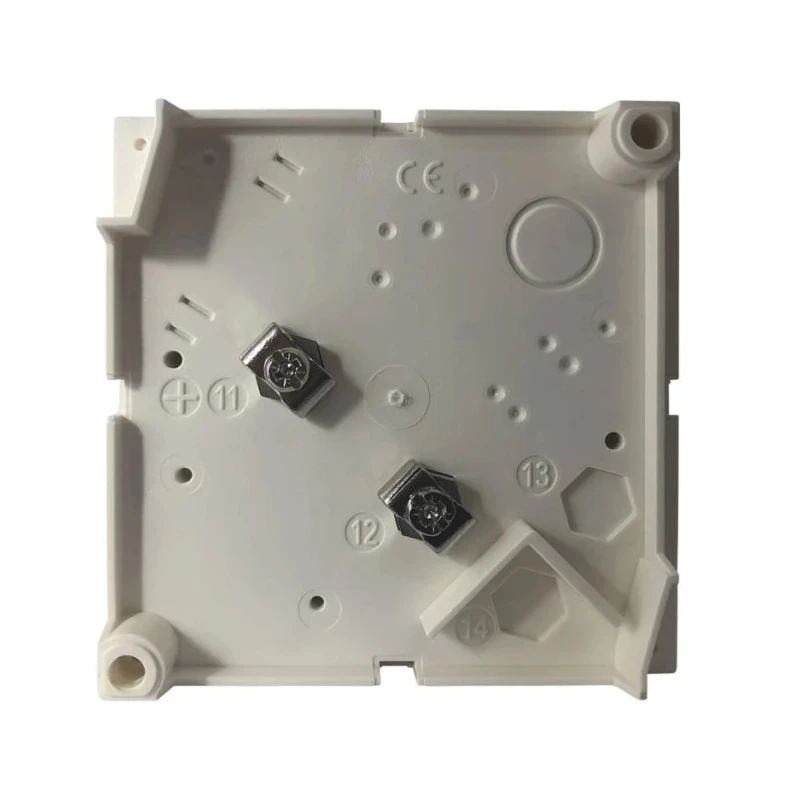

The RS PRO 186-2466 Analogue Panel Ammeter is a precision instrument designed for industrial and process control applications requiring dependable AC current measurement up to 100 A. It uses a moving iron movement to provide true RMS current readings, offering measurement values substantially independent of waveform distortions common in complex electrical systems. Its square-shaped moulded polycarbonate enclosure facilitates easy and secure mounting in machinery control panels or switchgear consoles.

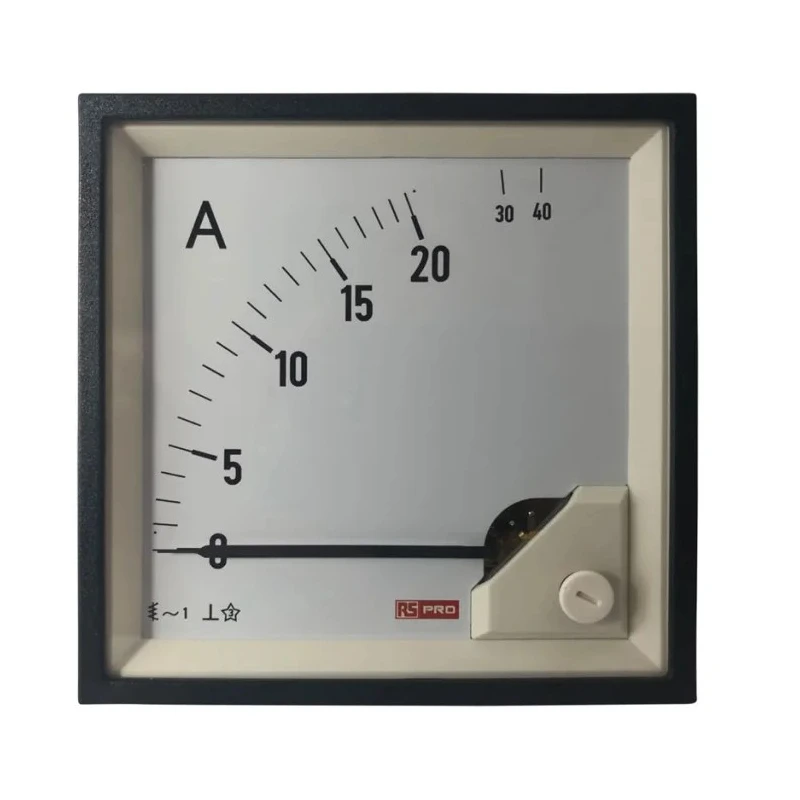

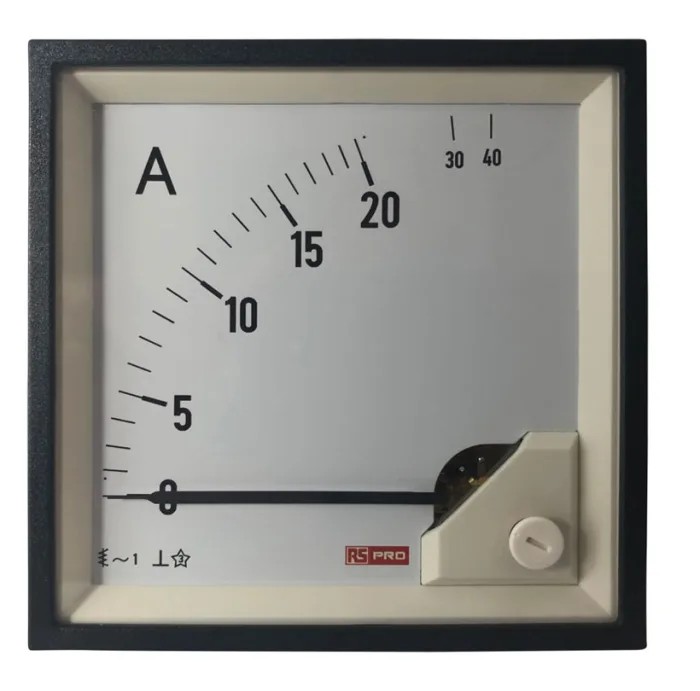

This panel ammeter features a 92 mm by 92 mm cut-out size complemented by a depth of 62 mm, providing compatibility with standard industrial mounting frames. The calibrated scale extends down to 10% of full scale with overload multiplication options ranging from X2 to X6, enabling accurate detection of motor start-up inrush currents. Pointer deflection spans from 0° to 90° with a knife-edge pointer for clear visibility and precise indication.

Engineered to sustain operation between -10°C and 65°C ambient temperatures, the ammeter is resilient against mechanical shocks with a rating of 15g for short pulse durations. It maintains accuracy within 1% and is designed for environments with less than 75% non-condensing humidity, ensuring reliability in typical industrial atmospheres.

The device complies with multiple internationally recognized standards including DIN 46200/46282, IEC 51, EN 61010, VDE, IEC 61010, and is UL 94 V-0 approved with EMC and low voltage directives certification (2014/30/EC and 2014/35/EC). Its IP52 rating guarantees protection against dust ingress and dripping water, making it suitable for demanding industrial settings.

Applications include industrial automation, manufacturing process control, electrical panel instrumentation, and other commercial or laboratory setups requiring precise AC current monitoring. The RS PRO 186-2466 ammeter provides a cost-effective and reliable solution for operators seeking robust analogue current measurement instrumentation.

Provides true RMS measurement independent of waveform distortion. Features a rugged moulded polycarbonate square case for panel mounting. Calibration scales down to 10% with optional overload multiples for motor inrush current.

Suitable for AC current frequency range from 15 Hz to 400 Hz. Knife-edge type pointer ensures precise deflections from 0° to 90°. Operates reliably between -10°C and 65°C ambient temperatures. Shock resistant to 15g pulses lasting 11 milliseconds.

Overload capable of two times nominal continuous current. Designed for low humidity environments below 75% annual average without condensation. Complies with numerous global industrial standards and certifications.

This analogue panel ammeter is an excellent choice for professionals in electrical, industrial automation, manufacturing, and laboratory instrument sectors looking for trusted current monitoring solutions. Browse the RS PRO brand and Panel Meter categories on EnvMart for compatible products and accessories.
