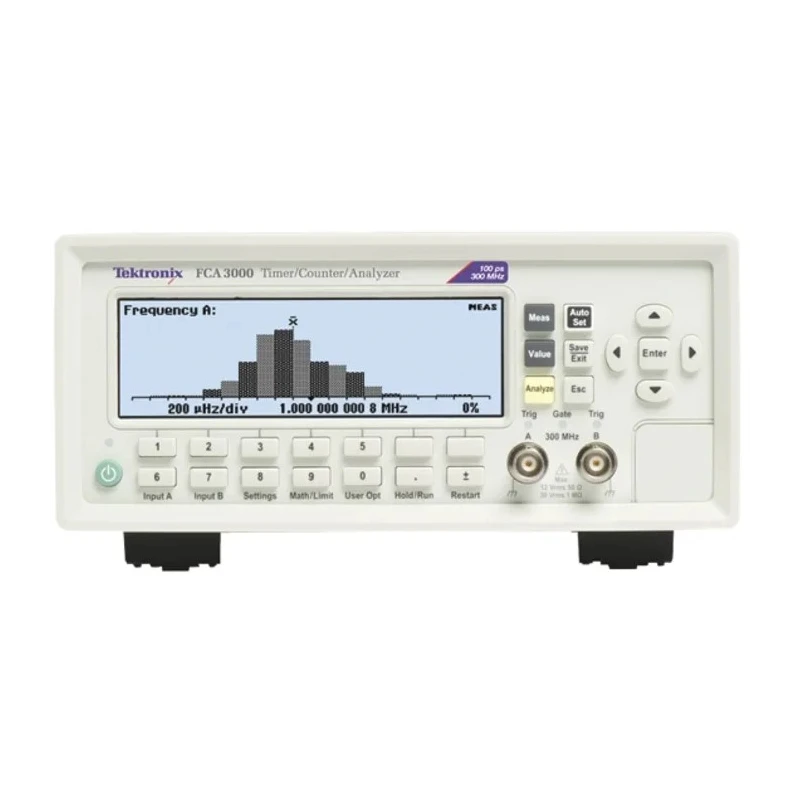

Tektronix FCA3000 Frequency Counter 0.001 Hz Min 300 MHz Max 12 Digits Resolution FCA3000

Tektronix FCA3000 Frequency Counter FCA3000 offers precise frequency measurements from a minimum of 0.001 Hz to a maximum of 300 MHz with an outstanding 12 digits resolution. This new-generation device is designed for industrial, laboratory, electronics testing, and manufacturing processes where precision is critical.

The counter features a graphical LCD backlit display that facilitates easy analysis of measurements, including histograms, trend plots, and Allan Deviation statistics. Measurement speed is extremely high, capable of capturing up to 250,000 samples per second internally, with streaming capabilities of 15,000 samples per second via USB or GPIB interface. This enables fast data acquisition essential for automated test environments.

The instrument supports multi-parameter measurements from one test connection, allowing simultaneous frequency and voltage measurement. Zero-dead time frequency/period measurements enhance accuracy and continuity of signal analysis compared to standard counters. Built-in advanced math functions and statistics allow comprehensive data examination directly on screen.

Robust connectivity options include USB and GPIB with selectable operation modes for backward compatibility with existing automated test equipment (ATE) systems. The FCA3000 operates reliably within 0°C to 50°C ambient temperature and supports input voltages from -50 V up to 50 V. The standard input impedance is 1 milliohm, ensuring precise electrical characteristics for measurement fidelity.

Physical dimensions of 395 mm length, 210 mm width, and 90 mm height make it a portable yet sturdy instrument weighing approximately 2.7 kg. Connector types include SMA, Type N Female, and BNC for versatile interface compatibility. Power plugs supplied cover Type G (British 3-Pin) and Type C (EU 3-Pin), suitable for global usage environments.

The product is made in Poland under stringent quality standards including IEEE and CE approvals, ensuring compliance and reliability. It is supplied with a quick-start user manual in multiple languages, NI LabVIEW SignalExpress™ Basic Edition software, a trial of TimeView™ Time Domain Analysis software, calibration certificate, and power cords.

This frequency counter is ideal for industrial, electronics manufacturing, HVAC, laboratory testing, and environmental measurements where frequency accuracy and high-speed data acquisition are demanded. Its integration into automated test systems makes it a robust solution for modern metrology and signal analysis tasks.

Discover the reliable and advanced Tektronix FCA3000 Frequency Counter for your precise measurement needs, available now at EnvMart's electrical test and measurement instruments category.

Offers graphical, multi-parameter timer/counter display with histograms and trend plots. Measures down to 50 ps single shot time resolution and 12 digits frequency per second. High-speed measurements up to 250,000 samples per second to internal memory.

Connectivity includes USB and GPIB with transfer speeds up to 15,000 samples per second. Supports zero-dead time frequency and period measurements with built-in statistics and math functions. Includes multiple input connectors: SMA, Type N Female, and BNC.

Equipped with LCD backlight display for clear visibility. Operates in temperatures from 0°C to 50°C with 50V maximum input voltage tolerance. Comes with Type G (British), Type C (EU) plugs; suitable for global use. Ideal for industrial, laboratory, and automated test systems applications.
