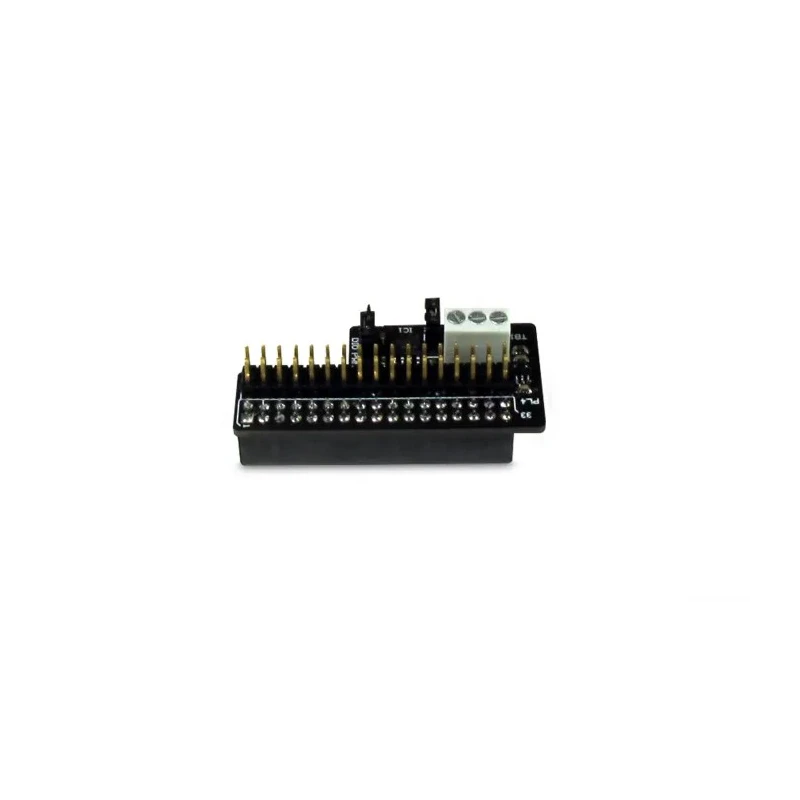

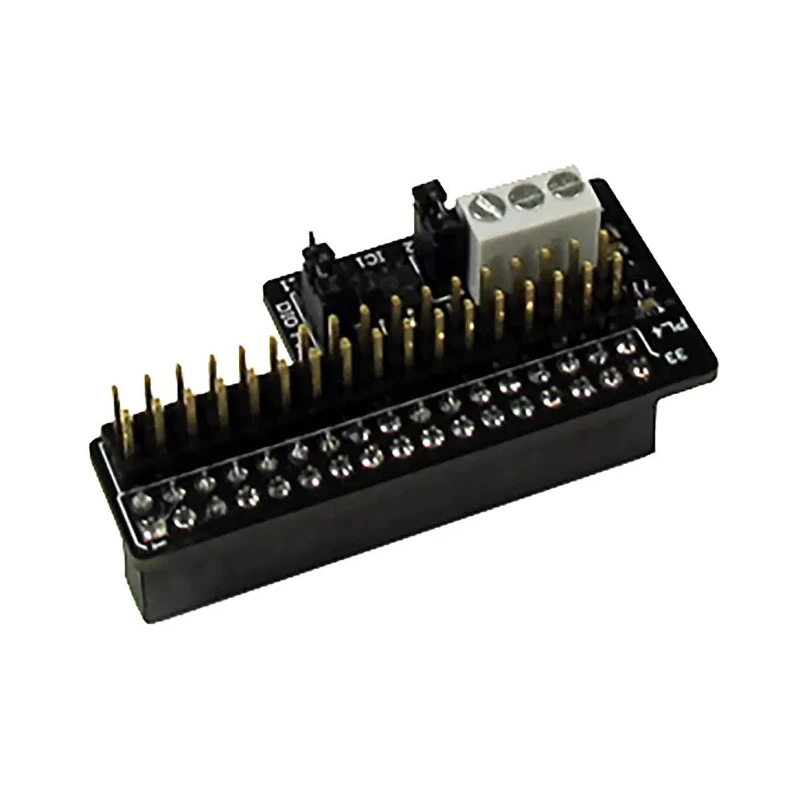

Lascar PanelPilotACE Multi-Function Panel Meter , RS485 Add-on Board for Current & Voltage Measurement, 75.9 mm x S43-RS485
Specifications
| Country of Origin | India |
|---|---|
| Brand | Lascar |
| Model | S43-RS485 |
| Depth | 31.8mm |
| Series | PanelPilotACE |
| Maximum Operating Temperature | 40°C |
| Minimum Operating Temperature | 0°C |
| Properties Measured | Current, Voltage |
| Cutout Height | 75.9mm |
| Cutout Width | 115.3mm |
Key Features
- Provides a three-wire RS485 interface for enhanced connectivity.
- Adds current and voltage measurement capability to compatible PanelPilotACE modules.
- Supports ASCII-based serial communication and Modbus RTU protocol.
- Compact design, cutout height of 75.9 mm and width of 115.3 mm.
- Operates reliably within a temperature range of 0°C to 40°C.
- Optional 120 ohm terminator integrated for flexible installation requirements.
- Ideal for industrial automation and process control environments.
Product Description

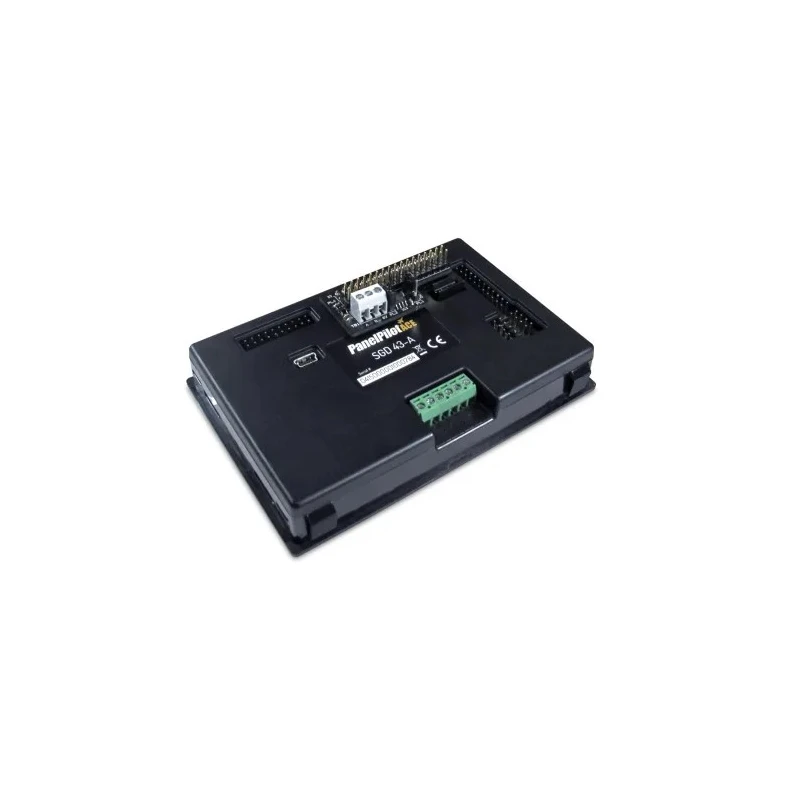

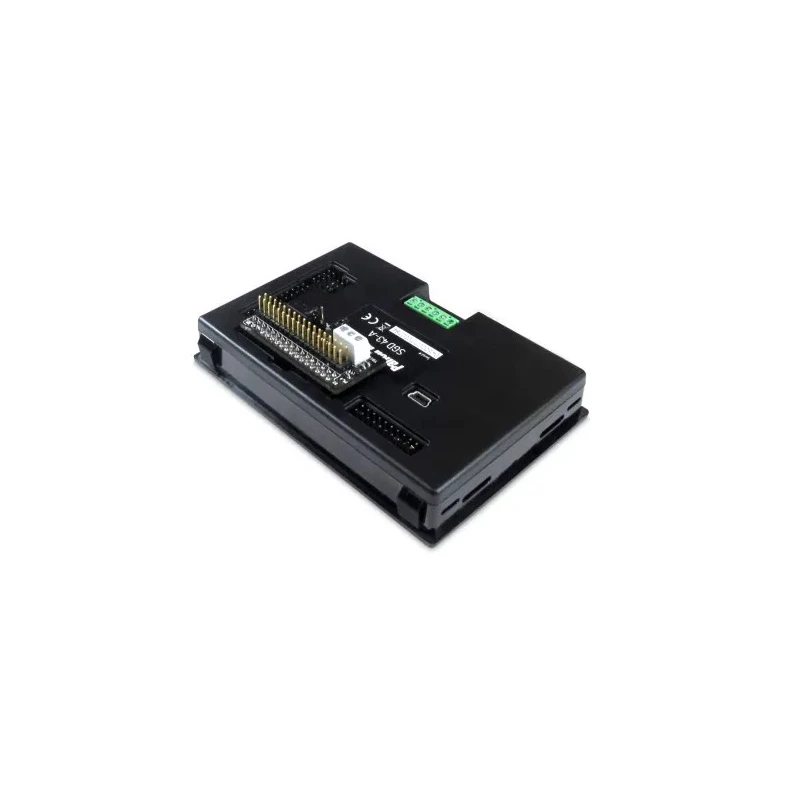

The Lascar S43-RS485 Multi-Function Panel Meter Add-on Board expands the capabilities of PanelPilotACE SGD 43-A display modules, providing reliable RS485 communication for both current and voltage measurement applications. Designed as a plug-in accessory, this board mounts onto the rear of compatible display modules and establishes a robust three-wire RS485 interface.
With integrated support for ASCII-based serial communication and Modbus RTU protocols, the S43-RS485 enables seamless integration into industrial automation and process control systems. The add-on board’s hardware design includes an optional 120 ohm terminator for installation flexibility across various environments.
Its compact form factor with a cutout height of 75.9 mm, width of 115.3 mm, and depth of 31.8 mm ensures direct compatibility with PanelPilotACE units, simplifying retrofitting or upgradation in existing electrical panels.
The board operates within a temperature range of 0°C to 40°C, supporting reliable measurement and system communication even in demanding industrial conditions. Built for continuous monitoring of electrical parameters, it is suited for manufacturing, process control, instrumentation, HVAC, and other industrial measurement settings.
Industrial users benefit from enhanced signal reliability, protocol flexibility, and streamlined panel integration for advanced measurement and monitoring. The S43-RS485 board is essential for precise electrical parameter readouts and connectivity in laboratory, manufacturing, and commercial environments.
Provides RS485 interface for SGD 43-A PanelPilotACE modules. Enables measurement of current and voltage in process control applications. Supports ASCII-based and Modbus RTU communication protocols. Includes optional 120 ohm terminator for adaptable installation.
Compact panel-mount-ready dimensions: 75.9 mm x 115.3 mm x 31.8 mm. Reliable performance across 0°C to 40°C operating temperatures. Suitable for electrical, automation, and industrial measurement needs. Explore broad portfolio of Panel Meters and accessories from Lascar for tailored measurement solutions across industrial, laboratory, and automation sectors.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The S43-RS485 add-on board has a cutout height of 75.9 mm, a cutout width of 115.3 mm, and a depth of 31.8 mm.
It operates reliably within a temperature range of 0°C to 40°C.
The S43-RS485 is capable of measuring current and voltage.
This model supports ASCII-based serial communication and Modbus RTU protocols.
Yes, the board includes an optional 120 ohm terminator for adaptable installation.
It mounts onto the rear of compatible PanelPilotACE display modules, establishing a three-wire RS485 interface.
The S43-RS485 is part of the PanelPilotACE series.
It is suited for industrial automation, process control, manufacturing, instrumentation, and HVAC applications.
The brand of this add-on board is Lascar.
The S43-RS485 add-on board is manufactured in India.
It expands the capabilities of PanelPilotACE modules by providing reliable RS485 communication for current and voltage measurements.
The weight of the S43-RS485 add-on board is not specified in the provided information.
