Lascar 8556 Series Digital Voltmeter DC LCD Display 3.5-Digits ±1 % 32 mm Cutout Width 62 mm DPM 700S-0

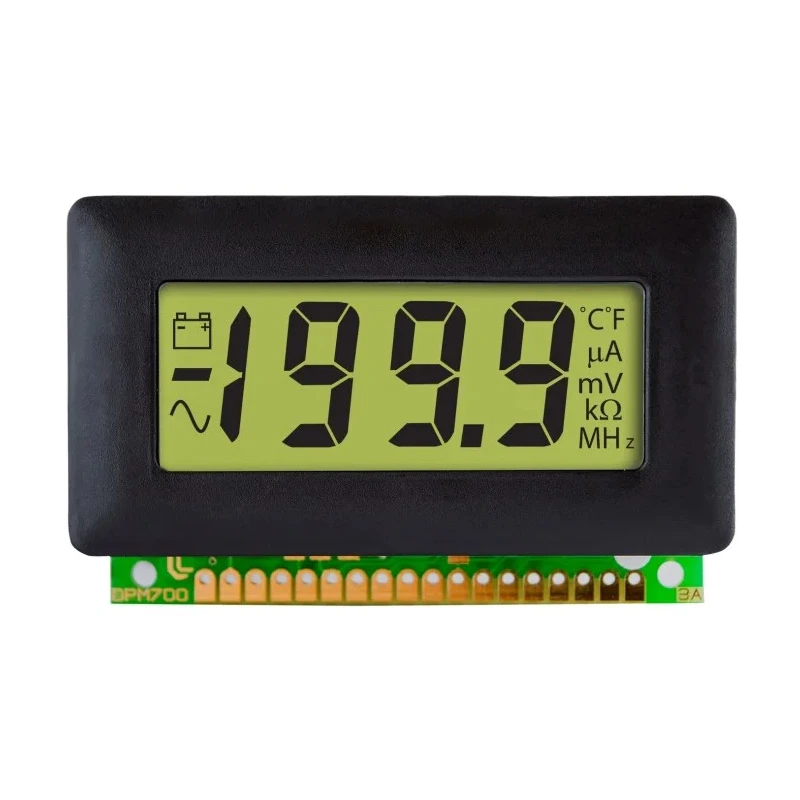

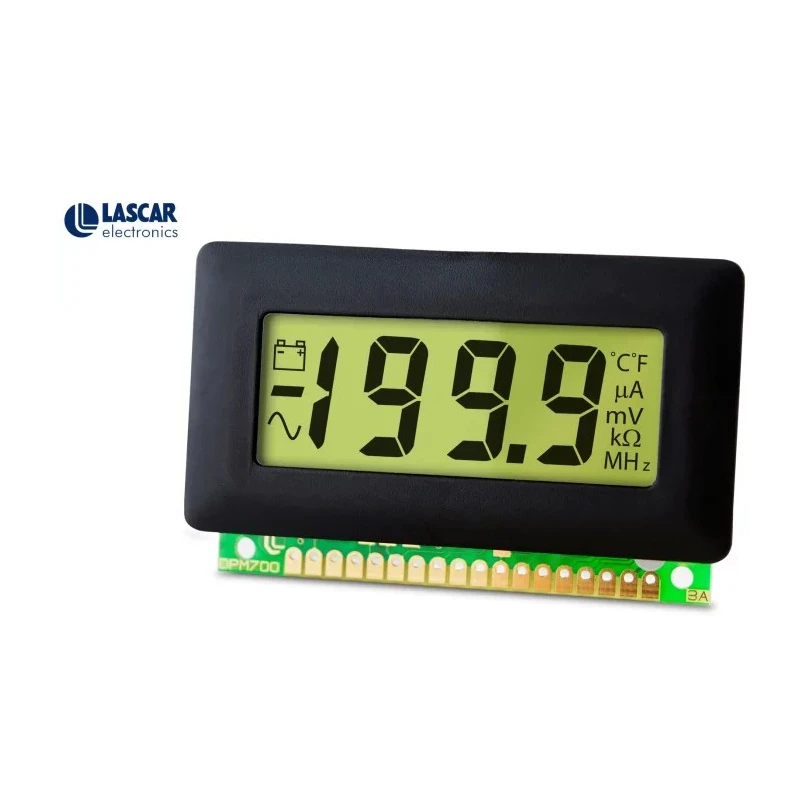

Lascar DPM 700S-0 digital voltmeter DC LCD display is a reliable and accurate instrument designed for precise voltage measurements in industrial automation and process control environments. It features a 3.5-digit LCD with ±1 % meter accuracy, ensuring dependable readings for various electrical applications.

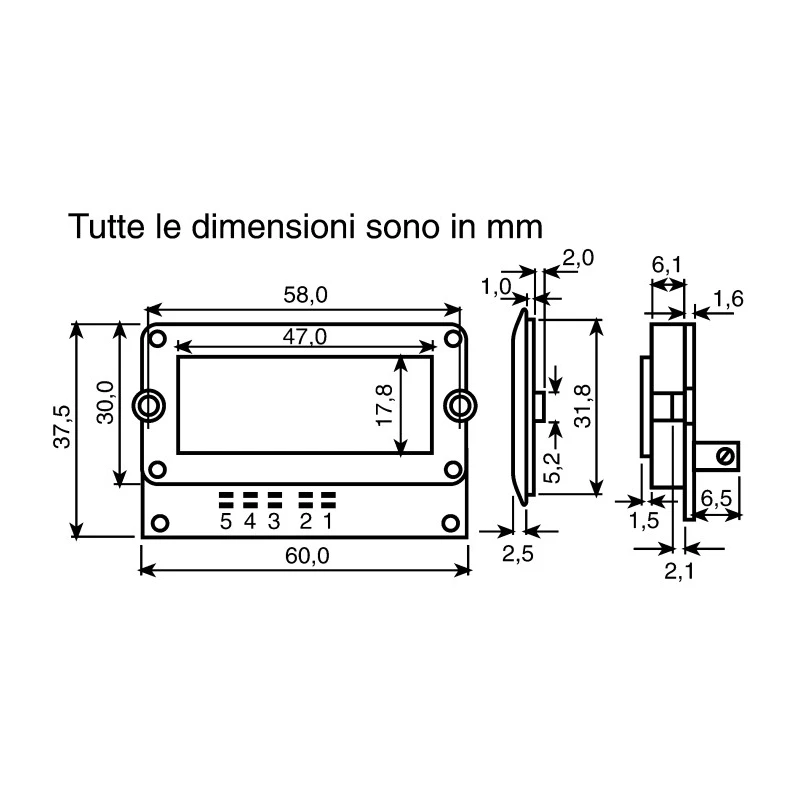

The meter is designed to fit panel cutouts measuring 32 mm in height and 62 mm in width, with a depth of 6.5 mm for compact installation. Its green backlit display with 12.7 mm digit height enhances readability even in low-light conditions.

This digital voltmeter supports maximum voltage measurements of ±20 V DC and operates within a temperature range of 0°C to 50°C, maintaining performance stability under typical industrial environments. It includes twelve selectable symbols such as V, m, A, °F, °C, μ, M, k, Ω, Hz, ∼, and :, making it versatile for various measurement tasks.

The device offers selectable decimal points which may be hard wired, allowing customization according to measurement needs. Electrical connectivity is facilitated via a row of solder pads on the printed circuit board, enabling straightforward integration into control panels.

Backlight specifications include 5V and 9V voltage options with corresponding backlight currents of 50mA and 20mA. The meter can be configured to function as an ammeter when used with a 200mV digital current shunt, expanding its application scope.

This voltmeter is ideal for use in industrial production lines, laboratory instrumentation, HVAC systems, manufacturing process monitoring, and water treatment facilities requiring accurate DC voltage readings.

Features a 3.5-digit LCD with ±1 % meter accuracy. Cutout dimensions of 32 mm height and 62 mm width for panel mounting. Operates within 0°C to 50°C temperature range. Maximum measurement capacity up to ±20 V DC. Includes 12.7 mm digit height with green backlit display for clear visibility.

Selectable decimal points with multiple symbols for versatile applications. Backlight operates at 5V or 9V with current of 50mA or 20mA depending on configuration. Electrical connections via PCB solder pads support efficient installation.

Functions as an ammeter when used with a 200mV digital current shunt. Suitable for industrial process control and automation systems. Explore more precision digital Voltmeters and panel meters in the EnvMart Industrial Automation Systems category for your specific application needs.
