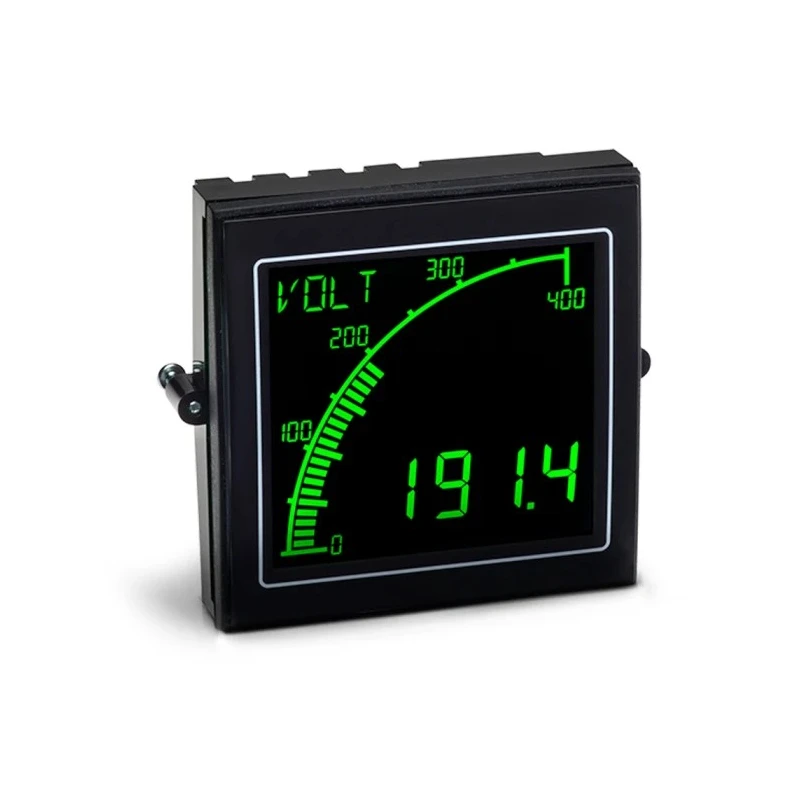

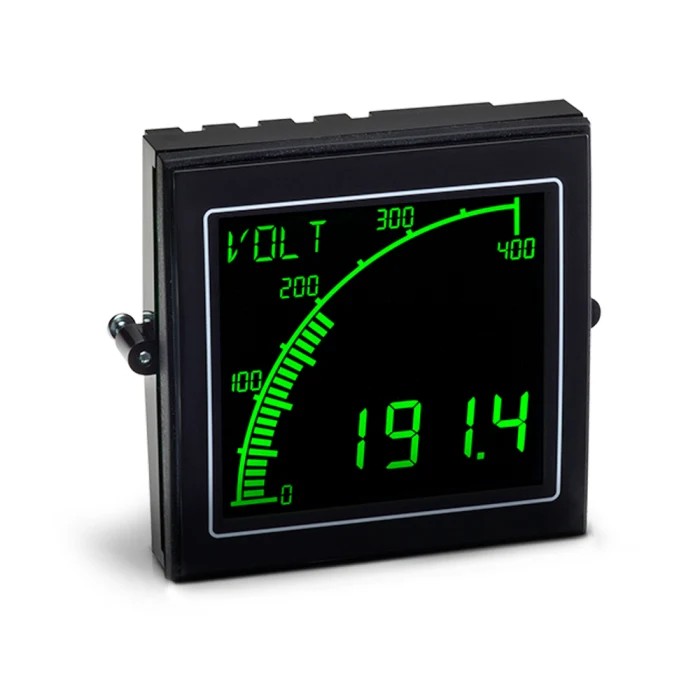

Trumeter APM Series Digital Voltmeter DC LCD Display 4-Digits 0.1% Accuracy 68mm Cutout APM-SHUNT-ANO

Free Delivery in India | Lowest Global Shipping Charges

Trumeter APM Series Digital Voltmeter DC LCD Display 4-Digits 0.1% Accuracy 68mm Cutout APM-SHUNT-ANO

Name: Trumeter APM Series Digital Voltmeter DC LCD Display 4-Digits 0.1% Accuracy 68mm Cutout APM-SHUNT-ANO
Brand: Trumeter
SKU: 110357
Price: 201.97 USD
Availability: InStock



Category Voltmeters Brand Trumeter Condition New

Specifications

Country of Origin	Malaysia
Display Type	LCD
Brand	Trumeter
Model	APM-SHUNT-ANO
Depth	53mm
Series	APM
Maximum Operating Temperature	60°C
Current Type	DC
Number Of Digits	4
Meter Accuracy	0.1 %
Minimum Operating Temperature	-10°C
Digit height	12mm
Standards/Approvals	CE, cUL, cULus, UL
Cutout Height	68mm
Cutout Width	68mm
Maximum Measurement	1 V

Key Features

Measures DC current with a maximum input of 1 V for low-side external shunt applications.
Features a high-resolution 4-digit LCD display with 12 mm digit height for clear visibility.
Offers 0.1% measurement accuracy or 0.5mV, whichever is greater, ensuring precise readings.
Includes a 40-segment bar graph with dynamic colour-changing backlight for instant status feedback.
Highly configurable through free APM software, allowing scale, range, alarms, and messaging customization.
Equipped with two independent outputs configurable as digital (open collector) or analogue (4-20mA).
Operates reliably in temperature ranges from -10°C to 60°C with CE, cUL, cULus, and UL approvals.
Constructed for industrial applications requiring accurate DC voltage measurement and remote monitoring capabilities.

Product Description

Trumeter APM-SHUNT-ANO is a digital voltmeter designed for DC measurement in low-side external shunt applications up to 1000mV. The device is part of the advanced panel meter series offering a 4-digit LCD display with a high-contrast, anti-glare screen and 12 mm digit height for exceptional readability. It boasts exceptional accuracy of 0.1% or 0.5mV, whichever is greater, making it suitable for precise industrial and process control monitoring.

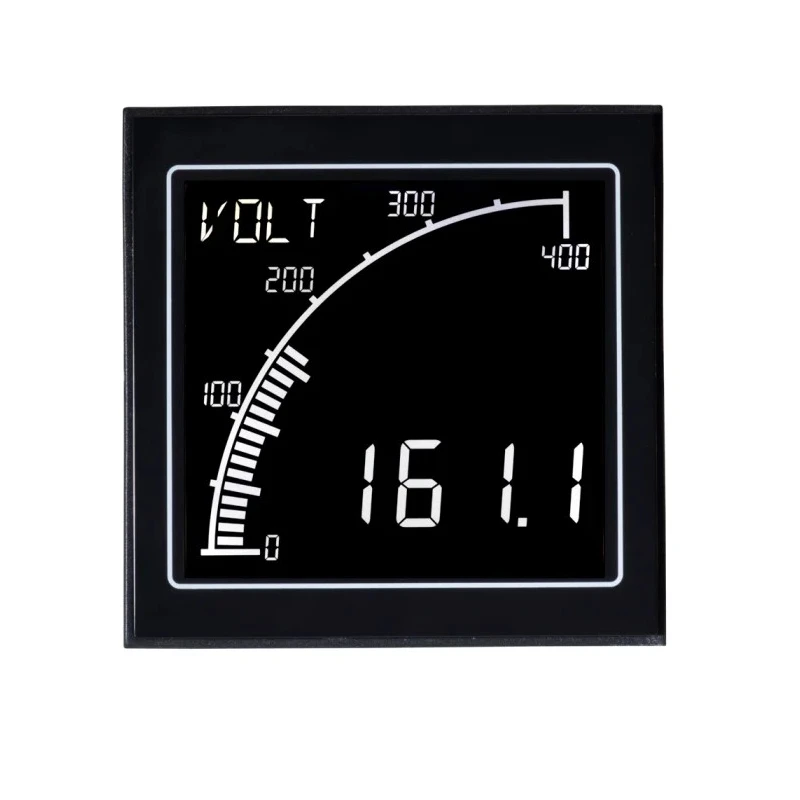

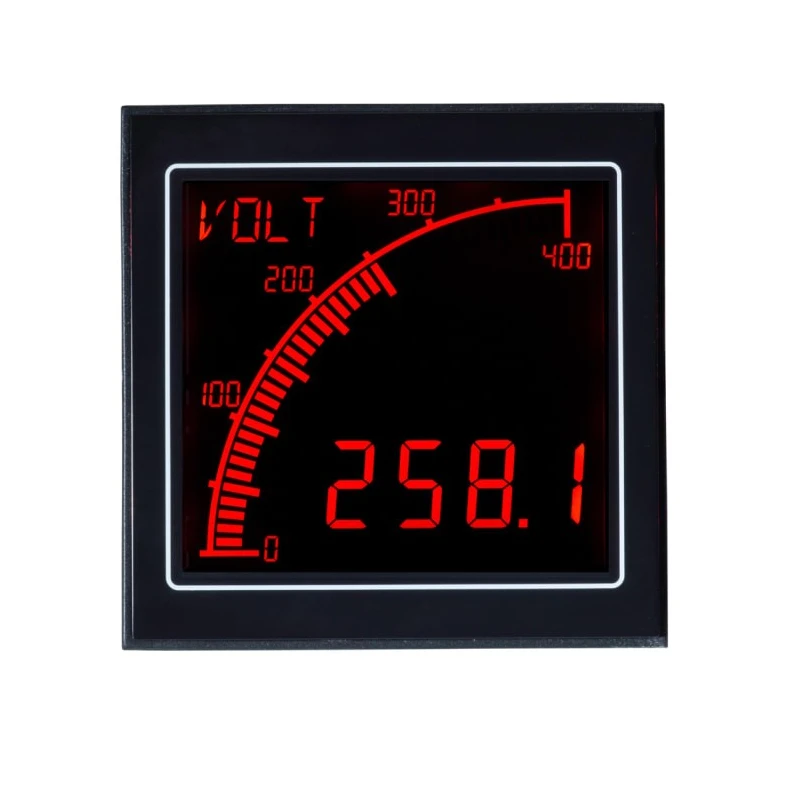

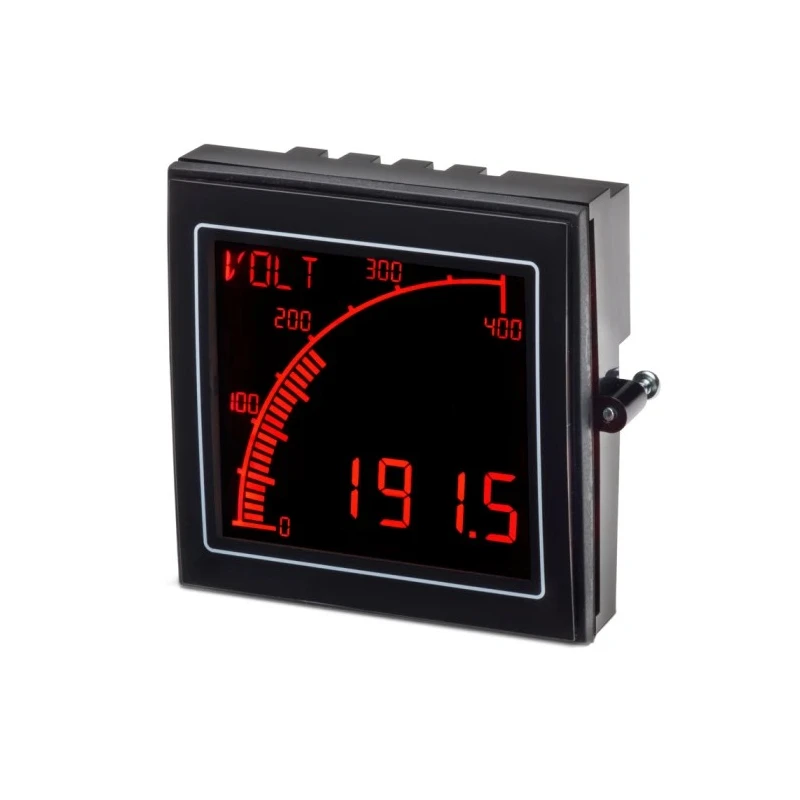

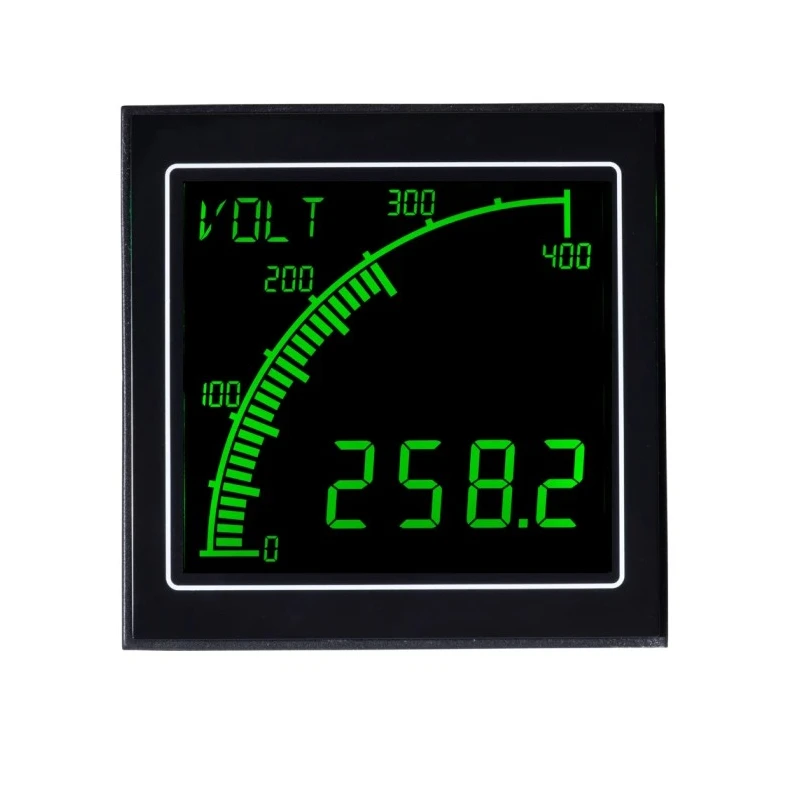

The meter features a 40-segment bar graph and a dynamic colour-changing backlight that shifts between green, red, and white to instantly reflect operational status or alarm conditions. Users can configure scaling, range settings, offsets, gains, non-linearisation, and alarms via the user-friendly APM configuration software, enabling tailored monitoring solutions to fit specific industrial needs.

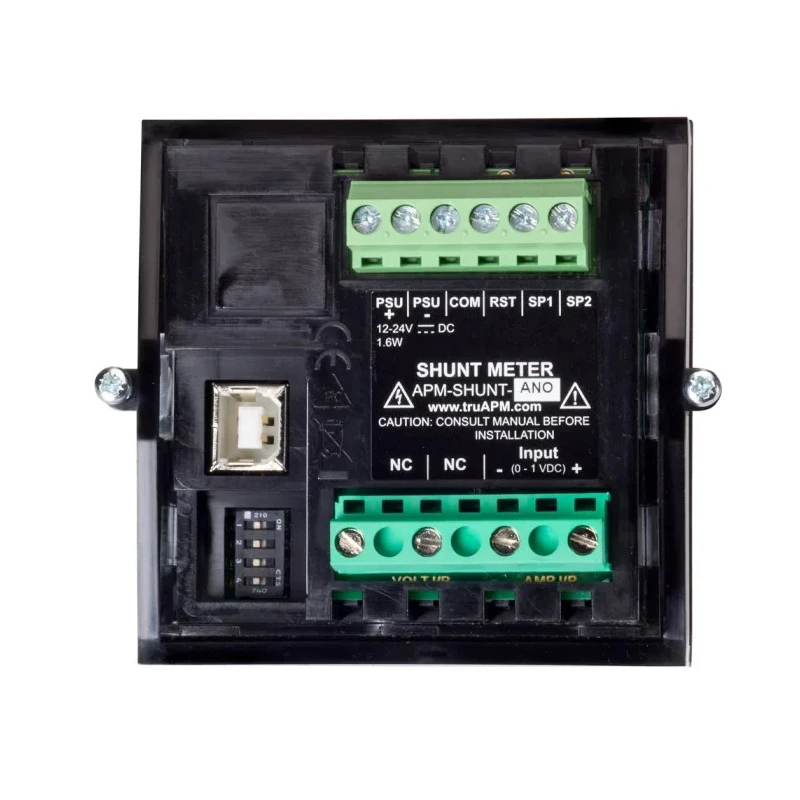

Two programmable outputs allow either digital open collector signals or analogue 4-20mA outputs, facilitating versatile integration with control systems. Operating over a temperature range from -10°C to 60°C, the meter is certified with CE, cUL, cULus, and UL approvals ensuring compliance with international industrial standards.

The compact 68 mm by 68 mm cutout and 53 mm depth permit easy panel mounting. Ideal for industrial automation, electrical equipment monitoring, and process control environments, the APM-SHUNT-ANO supports remote data access when paired with the Trumeter IoT Gateway and cloud platform, enabling real-time monitoring, data logging, and alerting via SMS or email.

It is a reliable and configurable instrument suited for demanding measurement applications requiring precision and clarity. Measures DC electrical currents using low-side external shunts accurately and reliably. High-contrast LCD with colour backlight enhances visibility in various lighting environments.

User-configurable alarms and messaging support operational safety and process control. Supports integration with IoT systems through Trumeter Cloud for remote monitoring. Compact design enables easy panel installation with standard 68 mm cutout dimensions.

Browse our selection of industrial Voltmeters and panel meters at EnvMart for comprehensive process control and electrical measurement solutions.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The Trumeter APM-SHUNT-ANO can measure DC voltage with a maximum input of 1 V, specifically designed for low-side external shunt applications.

This voltmeter offers a measurement accuracy of 0.1% or 0.5mV, whichever is greater, ensuring precise readings for industrial applications.

The required cutout dimensions for installation are 68 mm by 68 mm.

It operates reliably within a temperature range from -10°C to 60°C.

It features a high-resolution LCD display with a digit height of 12 mm for clear visibility.

The APM-SHUNT-ANO includes two independent outputs that can be configured as either digital (open collector) or analogue (4-20mA).

This model is certified with CE, cUL, cULus, and UL approvals, ensuring compliance with international industrial standards.

Users can configure scaling, range settings, offsets, gains, non-linearisation, and alarms through the free APM configuration software.

The depth of the APM-SHUNT-ANO is 53 mm, allowing for compact panel installation.

The display includes a 40-segment bar graph and a dynamic colour-changing backlight that shifts between green, red, and white to indicate operational status or alarms.

The Trumeter APM-SHUNT-ANO is manufactured in Malaysia.

It is ideal for industrial automation, electrical equipment monitoring, and process control environments, particularly where accurate DC voltage measurement is required.
