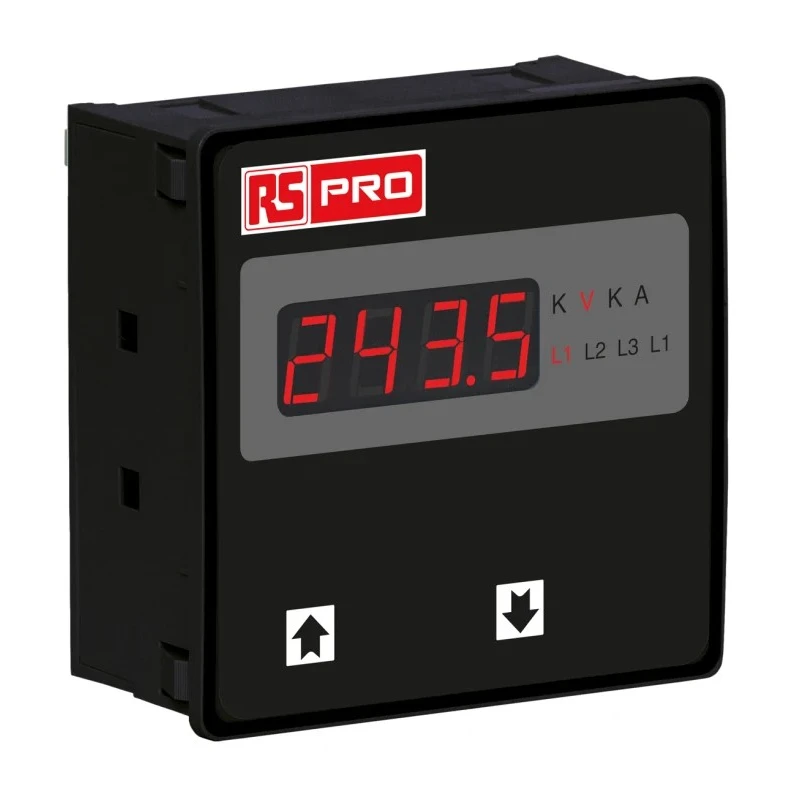

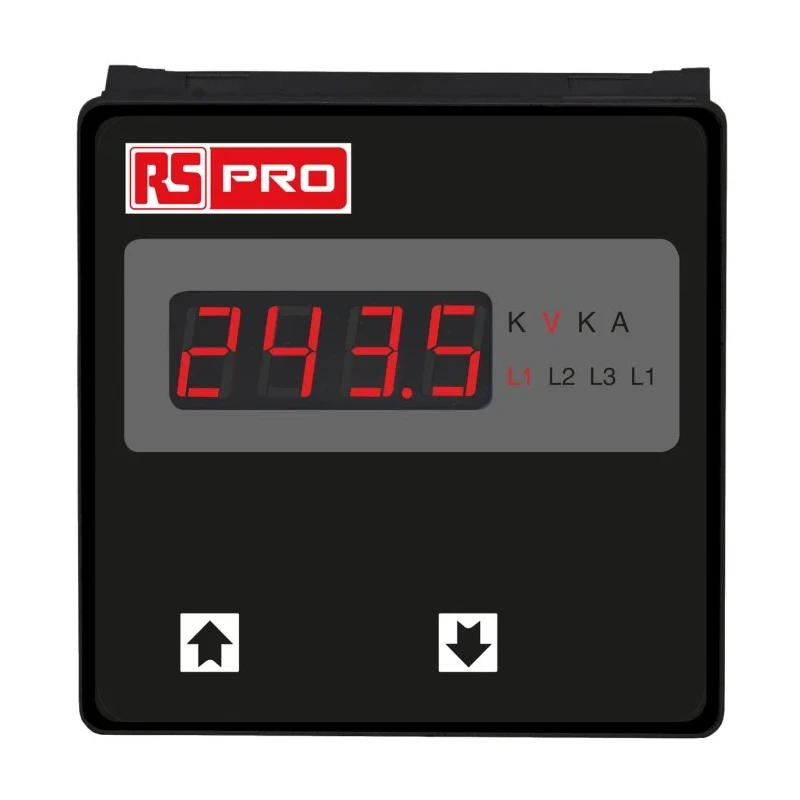

RS Pro Digital Voltmeter AC, LED Display 4-Digits ±0.5 + 1 Digit %, Cutout 92mm x 92mm Depth 55mm 136-5394

Free Delivery in India | Lowest Global Shipping Charges

RS Pro Digital Voltmeter AC, LED Display 4-Digits ±0.5 + 1 Digit %, Cutout 92mm x 92mm Depth 55mm 136-5394

Name: RS Pro Digital Voltmeter AC, LED Display 4-Digits ±0.5 + 1 Digit %, Cutout 92mm x 92mm Depth 55mm 136-5394
Brand: RS PRO
SKU: 145324
Price: 81.33 USD
Availability: InStock



Category Voltmeters Brand RS PRO Condition New

Specifications

Country of Origin	India
Display Type	LED
Brand	RS Pro
Model	136-5394
Depth	55mm
Series	RS PRO
Maximum Operating Temperature	50°C
Current Type	AC
Number Of Digits	4
Meter Accuracy	±0.5 + 1 Digit %
Minimum Operating Temperature	0°C
Digit height	14mm
Cutout Height	92mm
Cutout Width	92mm
Maximum Measurement	9999
Standards/ApprovalsIEC 60529, IEC 61010-1	2001, IEC 61326-1:2005

Key Features

Measures AC electrical parameters with true RMS accuracy.
User-selectable CT/PT ratios for versatile installation.
Suitable for 3 phase 4-wire, 3 phase 3-wire and single phase networks.
Wide auxiliary power supply range accepting 40 V to 300 V AC/DC input.
Storage of minimum and maximum measured values for analysis.
Fast and secure clip-in mounting compatible with 96 x 96 mm models.
Operating temperature range from 0°C to 50°C ensures reliable performance.

Product Description

RS Pro 136-5394 digital voltmeter AC is engineered for precise measurement of AC voltages in industrial and laboratory environments. It features a 4-digit ultra-bright LED display capable of reading up to 9999 with an accuracy of ±0.5 + 1 Digit %. The device's 92 mm by 92 mm cutout size and 55 mm depth allow easy panel mounting compatible with standard industrial installations.

This voltmeter supports true RMS measurement and is suitable for diverse electrical network types including 3 phase 4-wire, 3 phase 3-wire, and single phase systems. It provides user-programmable CT and PT ratios with selectable CT secondary of 1A or 5A, and PT secondary ranging from 100 VLL to 500 VLL, enabling adaptable measurement scenarios.

Power supply flexibility from 40 V to 300 V AC/DC makes it applicable across wide industrial settings. The device stores minimum and maximum recorded values for monitoring voltage fluctuations over time.

Installation is straightforward with clip-in mounting for the 96 x 96 model variant, reducing downtime during setup. Compliance with IEC 60529, IEC 61010-1:2001, and IEC 61326-1:2005 standards ensures safety and electromagnetic compatibility.

The operating temperature range of 0°C to 50°C allows robust performance in typical industrial environments. Typical use cases include industrial automation systems, process control, laboratory instrumentation, and electrical parameter verification in manufacturing facilities.

Measures AC voltages with true RMS accuracy. User-selectable CT and PT ratios for 3-phase and single-phase networks. Ultra-bright 4-digit LED display with high visibility. Wide auxiliary power supply range for installation versatility.

Storage of MIN/MAX values enables trend analysis. Fast clip-in mounting design for panel installation. Meets international IEC safety and performance standards. Wide operating temperature range from 0 to 50°C.

This product is part of the RS Pro industrial automation and control gear category, suitable for professionals seeking reliable and accurate digital Voltmeters for complex electrical systems.
