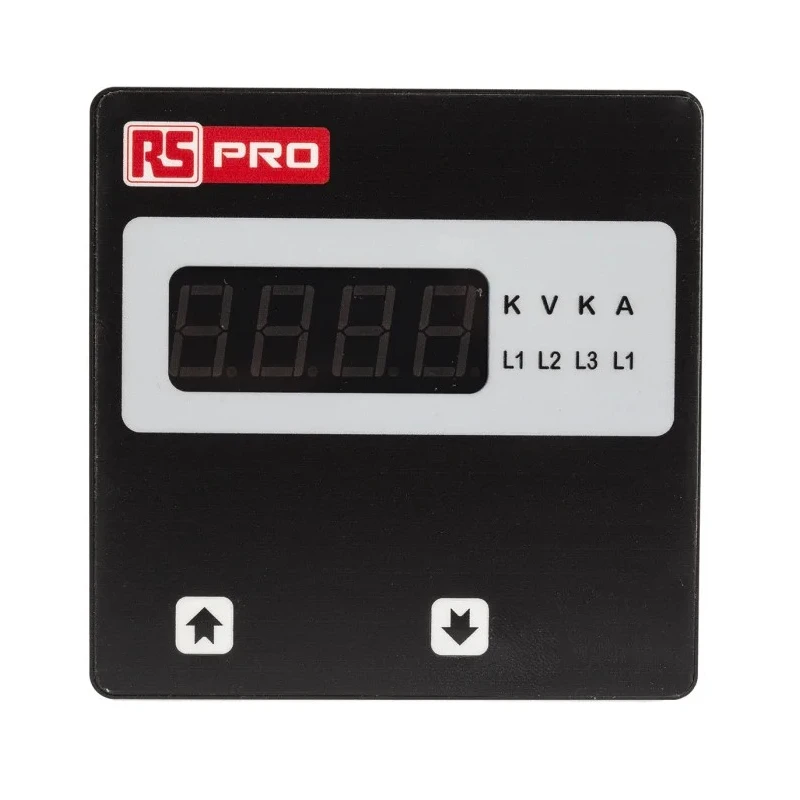

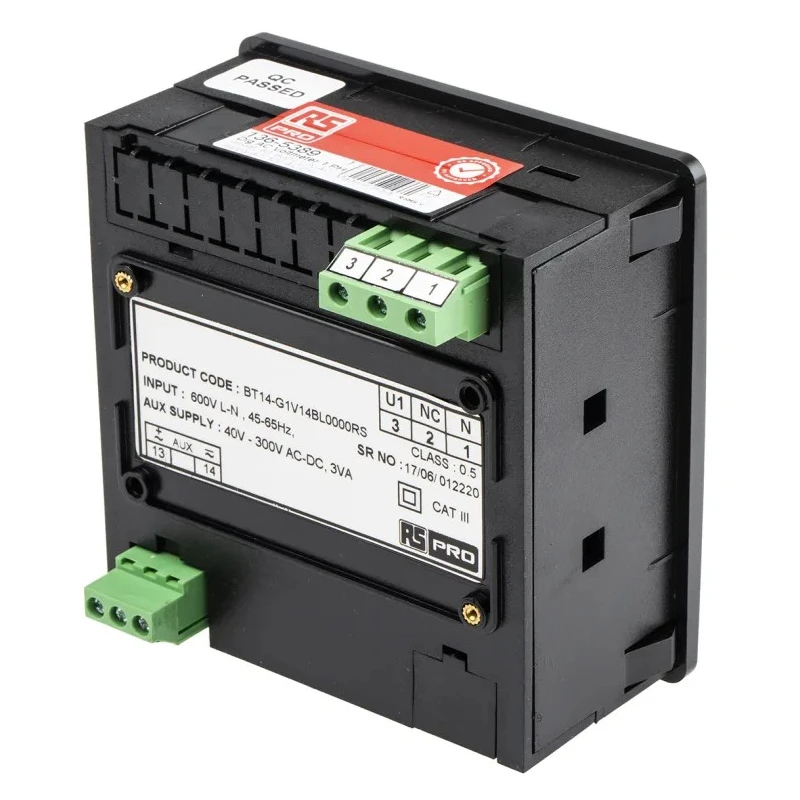

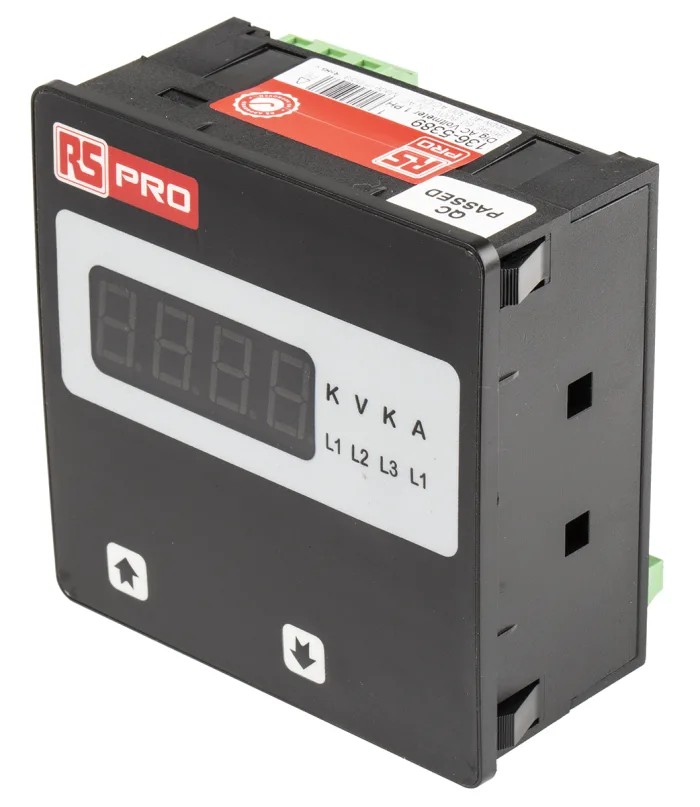

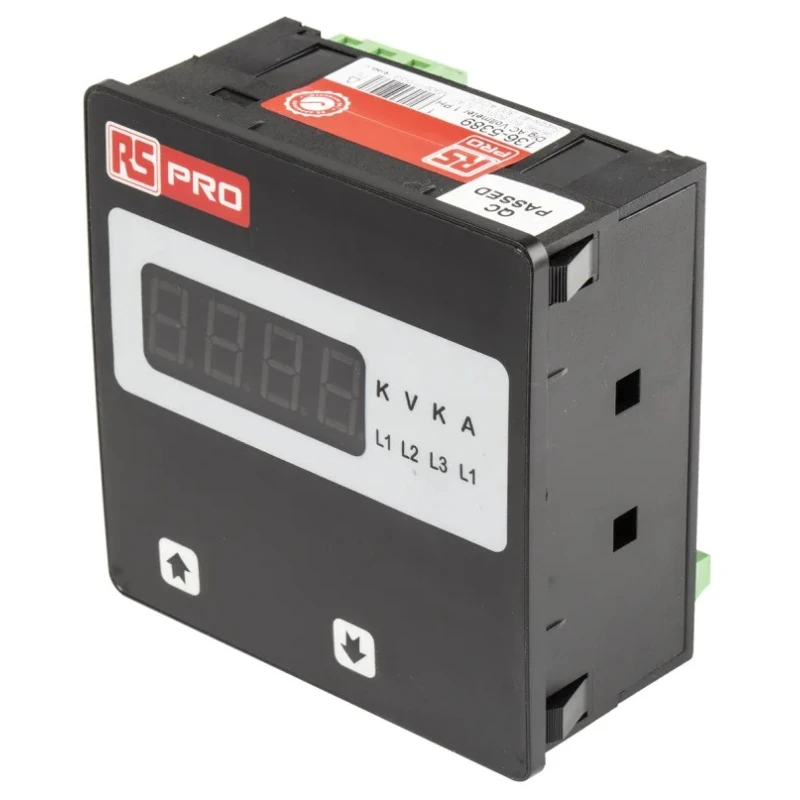

RS Pro Digital Voltmeter AC, LED Display 4-Digits ±0.5 + 1 Digit % Accuracy, 92 mm Cutout 136-5389

RS Pro 136-5389 Digital Voltmeter AC features a bright 4-digit LED display with ±0.5 + 1 Digit % accuracy, ideal for industrial and laboratory applications requiring precise onsite voltage monitoring.

This voltmeter supports true RMS measurement of single-phase AC currents, providing accurate readings up to 9999 counts. Its robust design includes a compact 92 mm x 92 mm cutout with 55 mm depth, making it suitable for panel installations with clip-in mounting method for the 96 x 96 model series.

The device offers programmable CT/PT ratios, with user-selectable CT secondary of 1A or 5A, and PT secondary inputs ranging from 60 V to 600 V LC AC, enabling versatile adaptation to various electrical measurement settings.

Equipped with a wide auxiliary power supply range accepting inputs between 40 V and 300 V AC/DC, the meter ensures compatibility with diverse power environments. It also features storage capacity for minimum and maximum voltage values, enhancing monitoring processes.

Engineered to meet strict industrial standards including IEC 60529, IEC 61010-1:2001, and IEC 61326-1:2005, this voltmeter guarantees safety, reliability, and compliance in harsh operational conditions. The operating temperature spans from 0°C to 50°C, suitable for typical industrial and laboratory ambient conditions.

Manufactured in India under the RS PRO brand, this voltmeter is an essential instrument for process control, automation, and electrical measurement tasks in industrial, laboratory, and manufacturing setups.

Includes 4-digit LED display with digit height of 14 mm for clear visibility. Supports AC current type with true RMS measurement. Designed for fast and easy clip-in mounting installation (for 96 x 96 model). On-site programmable CT/PT ratios with user-selectable CT secondary 1A/5A.

Wide auxiliary power supply accepting 40 V to 300 V AC/DC input. Storage capability for minimum and maximum measured values. Operating temperature range from 0°C to 50°C for industrial environments. Compact cutout dimension of 92 mm height and 92 mm width with 55 mm depth.
