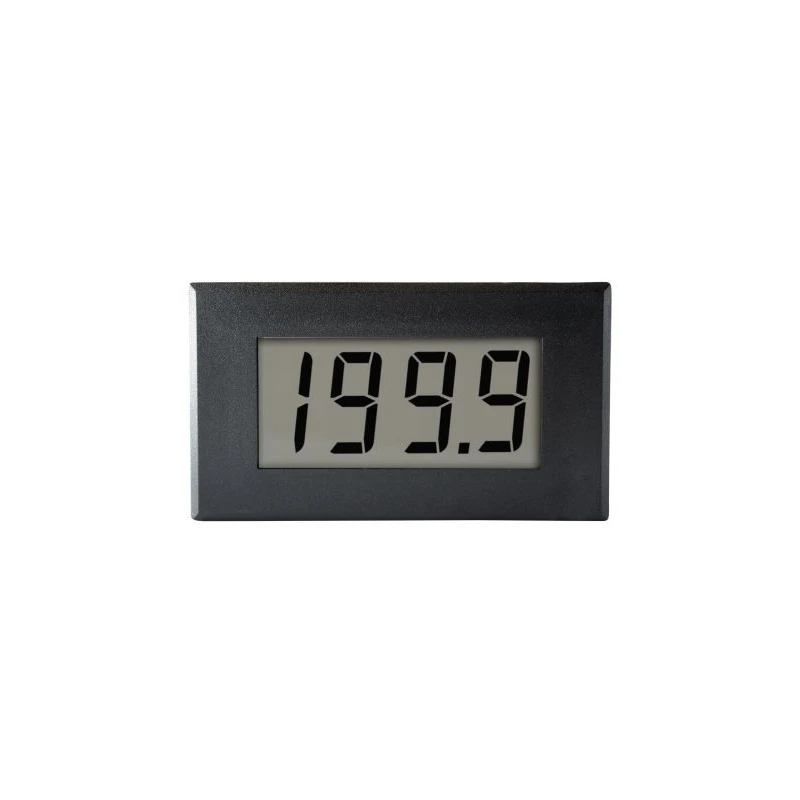

Lascar 7 Segment LCD Digital Panel Multifunction Meter for Current, 40 mm x 72 mm DPM942
Specifications
| Country of Origin | India |
|---|---|
| Display Type | 7 Segment LCD |
| Brand | Lascar |
| Model | DPM942 |
| Depth | 22.5mm |
| Series | DPM942 |
| Maximum Operating Temperature | 50°C |
| Meter Type | Digital |
| Number Of Digits | 4 |
| Minimum Operating Temperature | 0°C |
| Digit height | 19mm |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 119-356Brand: LascarManufacturers Part No.: DPM 942Distrelec Article No.: 30396648 |
| Properties Measured | Current |
| Cutout Height | 40mm |
| Cutout Width | 72mm |
| ANSI/ESD S20.20 | 2014 |
| BS EN 61340-5-1 | 2007 |
Key Features
- Features a high-visibility 7 segment LCD display for clear readings.
- Supports precise indication of loop current, from 4mA to 20mA.
- Digit height is 19 mm, suitable for industrial settings.
- Programmable decimal points facilitate versatility and calibration.
- Simple screw terminal connections enable fast installation.
- Cutout dimensions are 40 mm x 72 mm for standard panel fitment.
- Robust carrier with low profile bezel and mounting clips.
- Operating temperature range is 0°C to 50°C for reliable performance.
Product Description
The Lascar DPM 942 is a premium 7 segment LCD digital panel meter engineered for multifunction current measurement in industrial and laboratory control applications. Its compact dimensions (40 mm x 72 mm cutout, 22.5 mm depth) allow for seamless integration into process control panels, ensuring space efficiency without compromising performance.

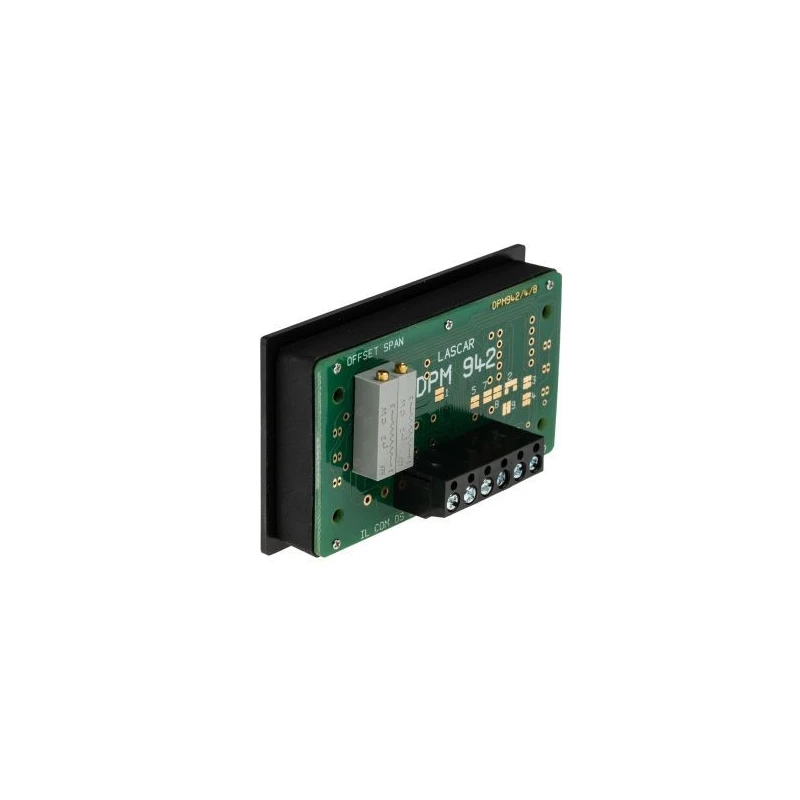

This meter provides accurate zero-corrected indication: '000' at 4mA and '1000' at 20mA loop current, making it ideal for monitoring process currents in automation systems. Equipped with calibration functionality via two 20-turn cermet potentiometers, it permits sensitive adjustments for precise readings, critical in applications where reliability and repeatability matter.
The 19 mm digit height and 4 digit display improve readability even from a distance, while programmable decimal points allow tailoring of display formats to suit process requirements. The meter features a robust carrier design for panel mounting, fitted with a low profile bezel and easy-to-use clips.
Simple screw terminal connections reduce installation time and error, making this unit suitable for situations requiring replacement or quick upgrades. With an operational temperature range of 0°C to 50°C, the DPM 942 meets demanding environmental specifications. It is IP67 rated and complies with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards.
This digital panel meter is widely used in industrial, laboratory, process automation, and manufacturing environments for current monitoring, instrumentation, and control applications. Its design supports integration across factories, research labs, water treatment facilities, and commercial installations.
For similar models and category browsing, explore more in the Digital Meters section for advanced process indicators and instrumentation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Lascar DPM 942 measures loop current from 4mA to 20mA, providing accurate readings for process monitoring.
The cutout dimensions for this model are 40 mm in height and 72 mm in width, with a depth of 22.5 mm.
The display features a digit height of 19 mm, enhancing readability in industrial settings.
It utilizes a 7 segment LCD display for clear and precise readings.
The operational temperature range is from 0°C to 50°C, ensuring reliable performance in various environments.
Calibration is facilitated via two 20-turn cermet potentiometers, allowing for sensitive adjustments of the readings.
It complies with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards, ensuring adherence to industry specifications.
Installation is simplified with screw terminal connections, allowing for quick setup and reducing the chance of error.
This model measures current, making it suitable for various monitoring and control applications.
The DPM 942 features a 4 digit display, which allows for detailed readouts of the measured current.
It is widely used in industrial, laboratory, process automation, and manufacturing environments for current monitoring.
The meter has a robust carrier design with a low profile bezel and easy-to-use clips for panel mounting.
