Lascar Digital Voltmeter DC, LCD Display, 3.5-Digits Accuracy ±1 %, Cutout 22.2 mm x 45 mm, Depth 9 mm DPM 125
Specifications
| Country of Origin | China |
|---|---|
| Display Type | LCD |
| Brand | Lascar |
| Model | DPM 125 |
| Depth | 9mm |
| Series | DPM 125 RS |
| Maximum Operating Temperature | 50°C |
| Current Type | DC |
| Number Of Digits | 3.5 |
| Meter Accuracy | ±1 % |
| Minimum Operating Temperature | 0°C |
| Digit height | 12.5mm |
| Cutout Height | 22.2mm |
| Cutout Width | 45mm |
| ANSI/ESD S20.20 | 2014 |
| BS EN 61340-5-1 | 2007 |
| Maximum Measurement | 2000 V |
| Full Scale Reading | 200 mV DC |
Key Features
- Compact DC voltmeter designed for easy installation in panels or instruments.
- Clear LCD display ensures easy reading with digit height of 12.5 mm.
- Accuracy of ±1 % for reliable voltage measurements up to 2000 V.

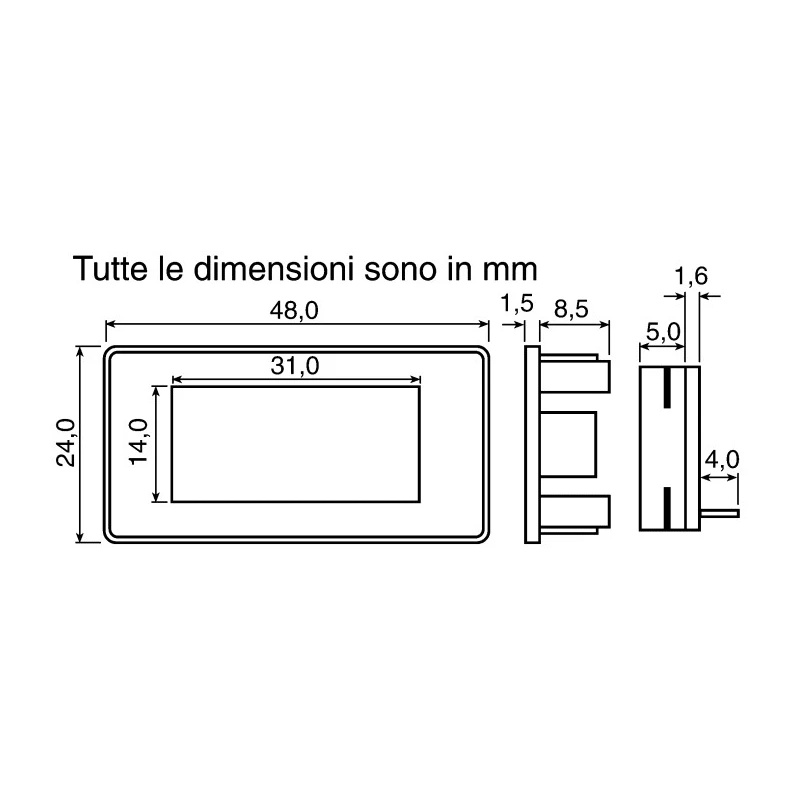

- Panel cutout dimensions are 22.2 mm by 45 mm, depth 9 mm for versatile integration.
- Operates within temperatures from 0°C to 50°C, suitable for varied environments.
- Logic selectable decimal points and auto-polarity increase usability.
- Low-power consumption supports portable and battery-operated equipment.
- Quick mode selection through on-card solder pads for minimal wiring complexity.
Product Description
The Lascar DPM 125 digital voltmeter is a compact instrument designed for precise monitoring of DC voltages in industrial and laboratory panel applications. Featuring an LCD display with 3.5-digit resolution and ±1 % accuracy, it provides clear readings up to 2000 V, making it suitable for both low and high-volume environments.
Its compact form factor, including panel cutout dimensions of 22.2 mm by 45 mm and a depth of 9 mm, allows for straightforward installation in standard SIL sockets or panel-mount setups. A robust snap-in bezel with a flat, reverse-printed window assures durability and prevents display damage from physical contact. Users benefit from a digit height of 12.5 mm for easy visibility.
With logic selectable decimal points, auto-zero, auto-polarity, and a full-scale reading capability of 200 mV DC, the DPM 125 offers advanced functionality while minimizing wiring requirements. Its very low power consumption enables extended battery operation and suitability in portable equipment.
The voltmeter supports a supply voltage range from 7.5 VDC to 14 VDC and functions reliably in ambient temperatures from 0°C to 50°C, adhering to demanding industrial and laboratory settings. The user-friendly solder pads expedite essential connectivity and fast mode selection.
Industrial use cases for the DPM 125 include integration in process control systems, instrumentation panels, laboratory measurement setups, and quality assurance stations. These features make it ideal for engineers, maintenance technicians, and manufacturers requiring direct, high-accuracy voltage monitoring within machines, control enclosures, or custom automation hardware.
Panel mounting convenience and miniature footprint maximize space efficiency. Reliable operation for portable instruments and permanent installations alike. Clear, large digits support rapid and accurate voltage confirmation.
Long battery life and low power draw enhance usability in battery-powered designs. Quick mode selection and integration with external logic increase flexibility for custom configurations.
Explore more Lascar digital voltmeter solutions in the Voltmeters category and benefit from precision measurement for industrial, laboratory, process control, and automation applications on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Lascar DPM 125 can measure voltages up to 2000 V DC, making it suitable for a wide range of applications.
This model features an accuracy of ±1 %, ensuring reliable voltage measurements.
The panel cutout dimensions required for installation are 22.2 mm in height and 45 mm in width.
The DPM 125 operates effectively within a temperature range of 0°C to 50°C.
It features an LCD display with a digit height of 12.5 mm for clear visibility of measurements.
This voltmeter operates with a supply voltage range from 7.5 VDC to 14 VDC.
The display provides a 3.5-digit resolution for precise voltage readings.
The DPM 125 includes features like logic selectable decimal points and auto-polarity to improve usability.
The depth of this voltmeter is 9 mm, allowing for compact installation.
The country of origin for this model is China.
The DPM 125 adheres to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards.
It is suitable for use in process control systems, instrumentation panels, and laboratory measurement setups.
