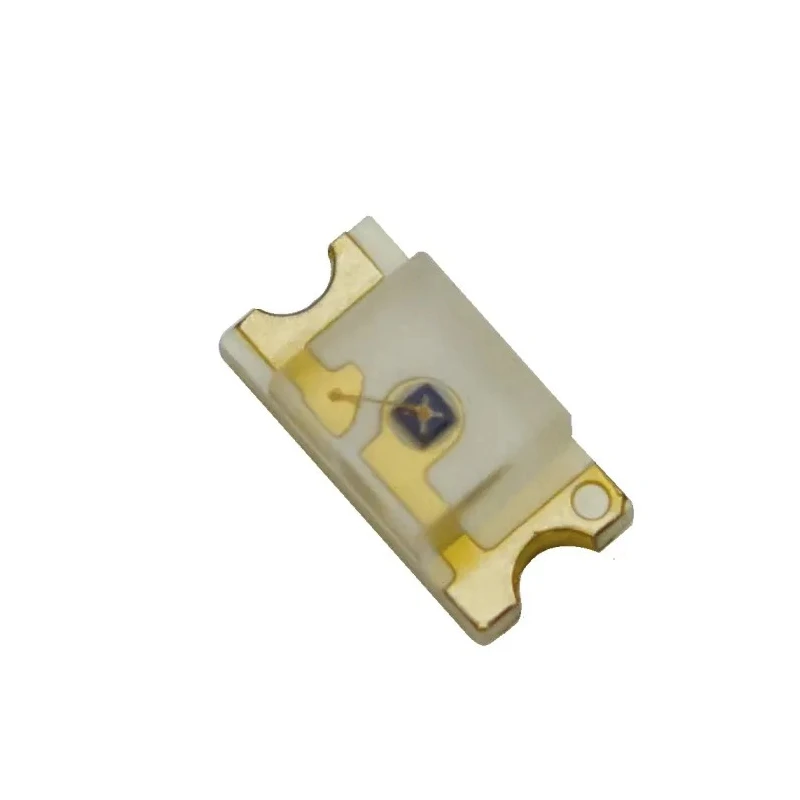

EPIGAP OSA Photonics Infrared LED 770 nm Radiant Intensity 2.8mW/sr 1206 Surface Mount Package OIS-150-770-X-T
Specifications
| Country of Origin | India |
|---|---|
| Size | 3.2mm x 1.6mm x 1.2mm |
| Brand | EPIGAP OSA Photonics |
| Model | OIS-150-770-X-T |
| Technology | GaP, AlInGaP, GaAlAs and InGaN |
| Packaging | Tape |
| Mount Type | Surface |
| Series | OIS-150 |
| Number Of Leds | 1 |
| Package Type | 1206 |
| Number of Pins | 2 |
| Lens Shape | Square |
| Maximum Supply Voltage | 2V |
| Peak Wavelength | 770nm |
| LED Material | InGaN, GaP, GaAlAs, AlInGaP |
| Radiant Intensity | 2.8mW/sr |
| view angle | 140° |
| soldering pads | gold plated |
| circuit substrate | glass laminated epoxy |
| Lead free solderable, soldering pads | gold plated |
| taping | face-up(TU) or face-down(TD) possible |
Key Features
- Operates with a maximum supply voltage of 2 V.
- Radiant intensity rated at 2.8 mW/sr for efficient light output.
- Compact size of 3.2 mm x 1.6 mm x 1.2 mm for versatile PCB mounting.
- Surface mount type with gold-plated soldering pads for reliability.
- Includes a square lens shape providing a 140° viewing angle.
- Constructed with LED materials InGaN, GaP, GaAlAs, and AlInGaP.
- Packaging in tape format suitable for automatic SMT assembly processes.
- Features a glass laminated epoxy circuit substrate.
Product Description
EPIGAP OSA Photonics OIS-150-770-X-T is a precision infrared LED designed for high brightness applications requiring a 770 nm peak wavelength. Packaged in an industry-standard 1206 surface mount format, this LED offers compact dimensions of 3.2 mm x 1.6 mm x 1.2 mm and includes gold-plated soldering pads to ensure excellent electrical and mechanical connections for reliable SMT assembly.
Delivering a radiant intensity of 2.8 mW/sr and featuring a broad 140° viewing angle enabled by its square lens shape, this LED is well suited for industrial, electronic, and optical applications including sensor systems and communication devices.
The device uses advanced semiconductor materials including InGaN, GaP, GaAlAs, and AlInGaP, mounted on a glass laminated epoxy substrate for durability and performance stability. The Infrared LED is packaged on tape for efficient deployment in automated manufacturing environments.
This IR LED operates at a maximum supply voltage of 2 V and meets automotive standards for quality assurance, although no specific third-party certifications are listed. It supports lead-free soldering processes with gold-plated pads compliant with environmental regulations.
Compact 1206 surface mount package for space-constrained PCB layouts. High reliability thanks to gold-plated soldering pads and glass laminated epoxy substrate. Broad 140° viewing angle from square lens design enhances optical performance.
Radiant intensity of 2.8 mW/sr enables effective infrared emission for sensing and illumination. Compatible with all SMT assembly methods including tape packaging.
This product suits industrial electronics, optical systems, and sensor applications requiring reliable infrared light sources with compact form factor and efficient electrical characteristics.
Browse additional infrared and LED components in the Electronics Components category at EnvMart to complement your design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The radiant intensity of this infrared LED is rated at 2.8 mW/sr, providing efficient light output for various applications.
The maximum supply voltage for the OIS-150-770-X-T is 2 V, making it suitable for low-voltage applications.
This infrared LED has compact dimensions of 3.2 mm x 1.6 mm x 1.2 mm, suitable for space-constrained PCB layouts.
The square lens shape of this model provides a broad viewing angle of 140°, enhancing its optical performance.
The OIS-150-770-X-T is constructed using advanced semiconductor materials, including InGaN, GaP, GaAlAs, and AlInGaP, mounted on a glass laminated epoxy substrate.
This infrared LED is packaged in tape format, which is suitable for automatic surface mount technology (SMT) assembly processes.
It is a surface mount type LED, designed for reliable PCB installation with gold-plated soldering pads.
This model features 2 pins, which are used for electrical connections during installation.
The lens shape of the OIS-150-770-X-T is square, which contributes to its wide viewing angle.
Yes, the soldering pads of this model are gold-plated and compliant with lead-free soldering processes.
This infrared LED belongs to the OIS-150 series, which includes various infrared LED components.
The country of origin for this infrared LED is India, indicating its manufacturing location.
