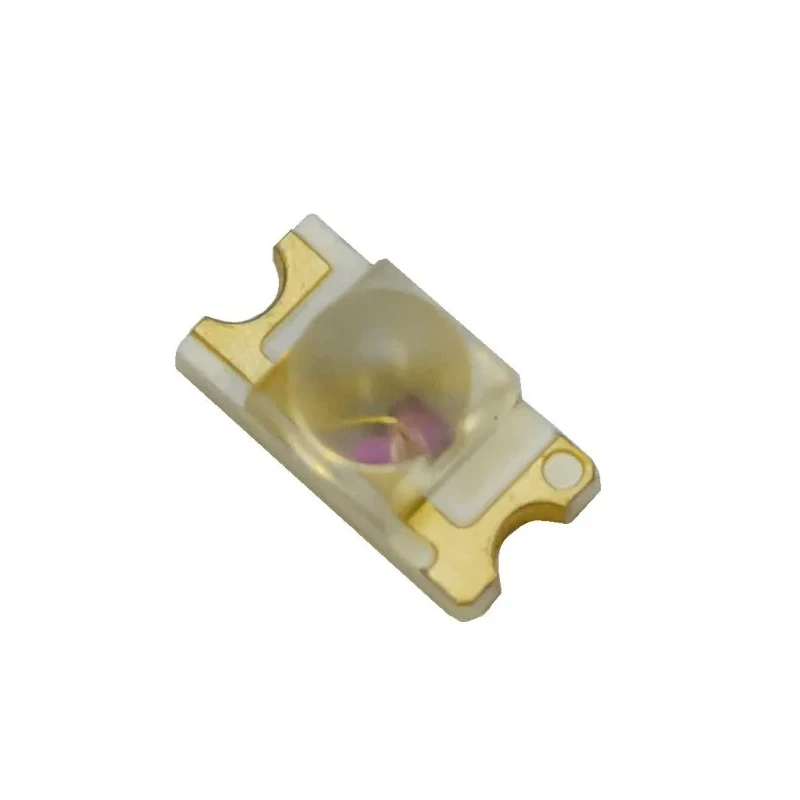

EPIGAP OSA Photonics High Brightness 940 nm IR LED 1206 Surface Mount Package OIS-330-IT940-X-TU
Specifications
| Country of Origin | India |
|---|---|
| Size | 3.2mm x 1.6mm x 1.9mm |
| Brand | EPIGAP OSA Photonics |
| Model | OIS-330-IT940-X-TU |
| Technology | GaP, AlInGaP, GaAlAs and InGaN |
| Packaging | Tape |
| Mount Type | Surface |
| Series | OIS-330 |
| Number Of Leds | 1 |
| Package Type | 1206 |
| Number of Pins | 2 |
| Lens Shape | Dome |
| Peak Wavelength | 940nm |
| Radiant Flux | 27mW |
| LED Material | AlInGaP, InGaN, GaP, GaAlAs |
| Radiant Intensity | 28mW/sr |
| view angle | 40° |
| soldering pads | gold plated |
Key Features
- This IR LED features a peak wavelength of 940 nm for efficient infrared light emission.
- The package dimension is 3.2 mm x 1.6 mm x 1.9 mm with a dome lens shape providing a 40° viewing angle.
- Radiant flux of 27 mW and radiant intensity of 28 mW/sr ensures strong light output.
- Constructed with AlInGaP, InGaN, GaP, and GaAlAs LED materials for reliable performance.
- The soldering pads are gold plated, enhancing connectivity and durability.
- Designed for surface mount applications with tape packaging on reels.
- Offers through-hole mountable support and is compatible with all SMT assembly methods.
- No automotive certifications or special standards are applicable to this model.
Product Description
EPIGAP OSA Photonics OIS-330-IT940-X-TU is a high brightness infrared LED emitting at a peak wavelength of 940 nm. Featuring a compact 1206 surface mount package measuring 3.2 mm x 1.6 mm x 1.9 mm, this component is designed for efficient infrared illumination in electronic applications.
The LED incorporates advanced LED materials such as AlInGaP, InGaN, GaP, and GaAlAs, which provide high radiant flux (27 mW) and radiant intensity (28 mW/sr) outputs. The dome-shaped lens optimizes the infrared light dispersion with a 40° viewing angle suitable for focused applications.
Manufactured with gold plated soldering pads, the OIS-330-IT940-X-TU ensures reliable solder joints and enhanced electrical connectivity. Its tape packaging and surface mount design enable seamless integration into automated SMT assembly lines.
This IR LED is ideal for use in electronic components including displays, optoelectronics, and power connectors where precise IR emission is required. The product is suitable for industrial, manufacturing, electronic assembly, and laboratory applications.
The OIS-330-IT940-X-TU model does not carry automotive-grade certifications and conforms to standard manufacturing specifications without additional approvals. Peak wavelength: 940 nm for infrared light emission. Package size: 3.2 mm x 1.6 mm x 1.9 mm in 1206 surface mount format.
Radiant flux of 27 mW and radiant intensity of 28 mW/sr for bright operation. Gold plated solder pads ensure reliability in soldering. Dome lens shape with 40° viewing angle. Suitable for all SMT assembly methods with tape packaging.
Explore the IR LED and electronic components category for compatible products and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak wavelength of this infrared LED is 940 nm, which is optimal for efficient infrared light emission.
The dimensions of the 1206 surface mount package are 3.2 mm x 1.6 mm x 1.9 mm.
The radiant flux output of the OIS-330-IT940-X-TU is 27 mW, ensuring strong light output.
The radiant intensity of this model is 28 mW/sr, providing effective illumination.
The dome lens shape provides a viewing angle of 40° for optimized infrared light dispersion.
This LED is constructed with AlInGaP, InGaN, GaP, and GaAlAs materials, which contribute to its performance.
This model features 2 pins for electrical connections.
The OIS-330-IT940-X-TU is packaged in tape, facilitating easy integration into automated SMT assembly lines.
Yes, it is designed for compatibility with all SMT assembly methods, making it suitable for various electronic applications.
This model is designed for surface mounting, allowing for easy integration into electronic devices.
No, the OIS-330-IT940-X-TU does not carry automotive-grade certifications or special standards.
This IR LED is suitable for use in electronic components, including displays, optoelectronics, and power connectors.
