EPIGAP OSA Photonics 770 nm IR LED 1206 Surface Package OIS-150-770-X-T

Free Delivery in India | Lowest Global Shipping Charges

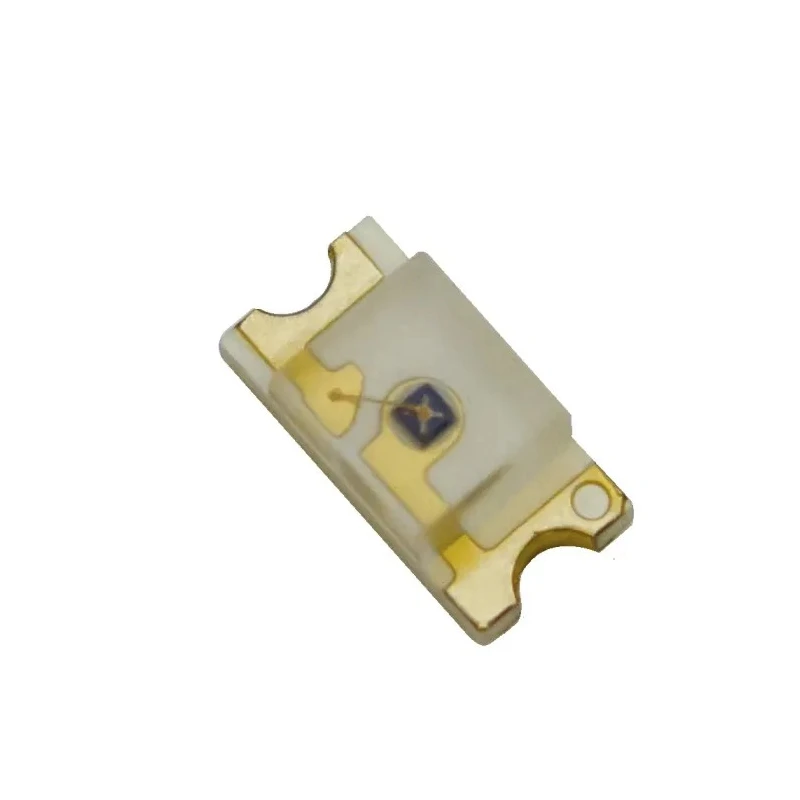

EPIGAP OSA Photonics 770 nm IR LED 1206 Surface Package OIS-150-770-X-T

Name: EPIGAP OSA Photonics 770 nm IR LED 1206 Surface Package OIS-150-770-X-T
Brand: EPIGAP OSA Photonics
SKU: 151278
Price: 1.17 USD
Availability: InStock



Category IR LED Brand EPIGAP OSA Photonics Condition New

Specifications

Country of Origin	India
Size	3.2mm x 1.6mm x 1.2mm
Brand	EPIGAP OSA Photonics
Model	OIS-150-770-X-T
Technology	GaP, AlInGaP, GaAlAs and InGaN
Packaging	Tape
Mount Type	Surface
Series	OIS-150
Number Of Leds	1
Package Type	1206
Number of Pins	2
Lens Shape	Square
Maximum Supply Voltage	2V
Peak Wavelength	770nm
LED Material	InGaN, GaP, GaAlAs, AlInGaP
Radiant Intensity	2.8mW/sr
view angle	140°
soldering pads	gold plated
circuit substrate	glass laminated epoxy
Lead free solderable, soldering pads	gold plated
taping	face-up(TU) or face-down(TD) possible

Key Features

The LED features a 1206 surface mount package with compact dimensions of 3.2 mm x 1.6 mm x 1.2 mm.
Peak wavelength emission is centered at 770 nm suitable for IR detection systems.
Radiant intensity is 2.8 mW/sr enabling efficient illumination.
The LED has gold-plated soldering pads compatible with all SMT assembly methods.
It includes a square lens shape with a 140° viewing angle for wide IR coverage.
Constructed with advanced materials including InGaN, GaP, GaAlAs, and AlInGaP for optimized performance.
Maximum supply voltage is 2 V with a surface-mounted design on glass laminated epoxy substrate.
Packaging is tape wound for automated assembly processes.

Product Description

The EPIGAP OSA Photonics OIS-150-770-X-T is a high brightness IR LED in a compact 1206 surface mount package, designed for precision infrared illumination applications across various industries including electronic components manufacturing, optical communication, and sensing technologies.

This infrared LED emits light at a peak wavelength of 770 nm, delivering a radiant intensity of 2.8 mW/sr. Its square lens shape combined with a 140° viewing angle ensures broad and effective IR light distribution, which is essential for many sensing and illumination tasks.

Manufactured with advanced semiconductor materials such as InGaN, GaP, GaAlAs, and AlInGaP, the OIS-150 series offers superior reliability and performance. The device employs a glass laminated epoxy circuit substrate and gold-plated soldering pads for excellent thermal and electrical conduction, making it suitable for all standard surface mount technology (SMT) assembly processes.

The LED module measures 3.2 mm x 1.6 mm x 1.2 mm, making it a compact solution suitable for densely packed PCBs. It is packaged in tape suitable for automated placement in manufacturing lines, with cathode orientation optimized for efficient assembly.

This IR LED is lead-free solderable and complies with environmental requirements, supporting sustainable manufacturing needs. It does not feature automotive or other specific standard approvals, focusing on general industrial and laboratory IR illumination requirements.

The LED’s wide viewing angle of 140° provides enhanced IR emission coverage. Its soldering pads are gold-plated to ensure durability and robust mechanical connection. The 2 V maximum supply voltage provides safe and efficient operation.

Tape packaging facilitates automated assembly and reduces handling errors. The device’s construction and materials yield high brightness and long operational life.

Suitable for use in electronic devices, optical equipment, sensor technology, and communication systems, the EPIGAP OSA Photonics OIS-150-770-X-T IR LED is a dependable component for designers requiring consistent IR performance. Browse more high-performance LEDs and optoelectronic components at EnvMart for your industrial and commercial needs.
