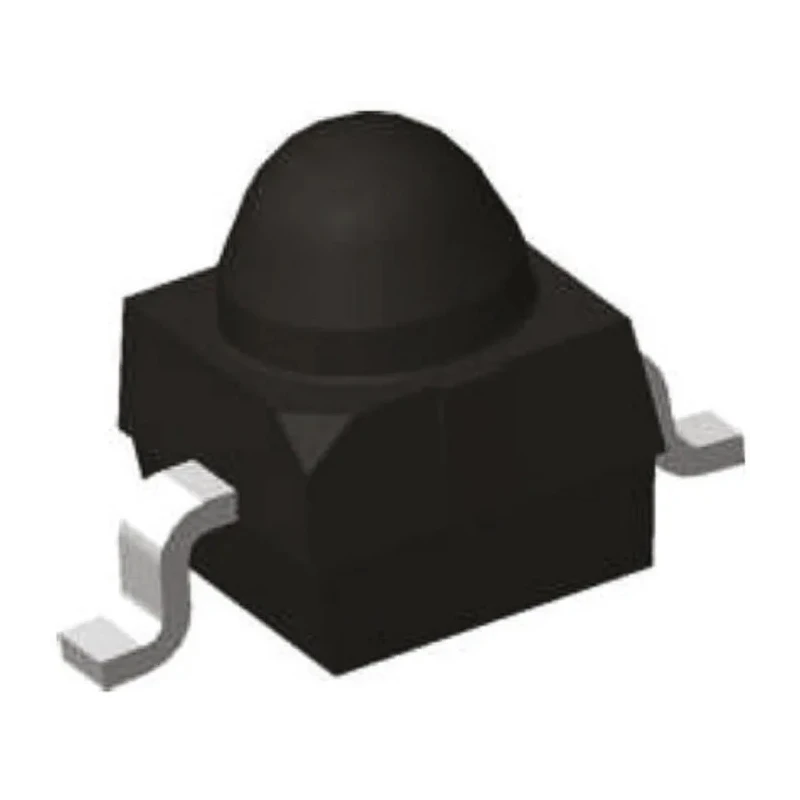

Vishay 950 nm High Radiant Flux IR LED Subminiature Surface Mount 2 Pins Dome Lens TSML1020

Free Delivery in India | Lowest Global Shipping Charges

Vishay 950 nm High Radiant Flux IR LED Subminiature Surface Mount 2 Pins Dome Lens TSML1020

Name: Vishay 950 nm High Radiant Flux IR LED Subminiature Surface Mount 2 Pins Dome Lens TSML1020
Brand: Vishay
SKU: 218105
Price: 0.48 USD
Availability: InStock



Category IR LED Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Dimensions	2.5 x 2 x 2.7 mm
Model	TSML1020
Packaging	Bulk
Mount Type	Surface
Beam angle	24°
Number Of Leds	1
Package Type	Subminiature
Standards/Approvals	JEDEC
Number of Pins	2
Lens Shape	Dome
Peak Wavelength	950nm
Radiant Flux	35mW
LED Material	GaAlAs
Angle of half intensity	12°
Radiant Intensity	7mW/sr
ams OSRAM Chip LED 860 nm IR LED 0402 Surface packageBrand	ams OSRAM

Key Features

Peak wavelength emission at 950 nm suitable for IR applications.
High radiant flux output of 35 mW with radiant intensity of 7 mW/sr.
Compact subminiature package measuring 2.5 x 2 x 2.7 mm with dome-shaped lens.
Surface mount device with gull-wing leads and 2 pins for efficient PCB mounting.
Specialized GaAlAs LED material providing stable infrared emission.
Beam angle of 24° and half intensity angle of 12° for focused IR output.
Complies with JEDEC standards ensuring quality and reliability.
Packaged in bulk for high volume manufacturing process integration.

Product Description

Vishay TSML1020 is a high power Infrared Light Emitting Diode (IR LED) designed for precision applications requiring a peak wavelength of 950 nm. This component is housed in a subminiature surface mount package with a clear dome lens made of GaAlAs material, offering excellent infrared emission properties with a radiant flux of 35 mW and radiant intensity of 7 mW/sr.

The LED features gull-wing mounting leads with 2 pins, measuring a compact 2.5 x 2 x 2.7 mm, making it suitable for densely packed PCB designs. Its focused beam angle of 24° and 12° half intensity angle provide targeted IR illumination, enhancing device efficiency.

Manufactured according to JEDEC standards, this IR LED ensures consistent performance and reliability in industrial and commercial electronic assemblies. It is supplied in bulk packaging, enabling efficient handling and integration in automated manufacturing.

Typical applications include remote control transmitters, punched tape readers, photointerrupters, and encoders used in both consumer electronics and industrial measurement systems. The TSML1020’s robust design and focused emission make it ideal for precise infrared sensing and signaling tasks.

Peak wavelength emission at 950 nm suitable for IR applications. High radiant flux output of 35 mW with radiant intensity of 7 mW/sr. Compact subminiature package measuring 2.5 x 2 x 2.7 mm with dome-shaped lens. Surface mount device with gull-wing leads and 2 pins for efficient PCB mounting.

Specialized GaAlAs LED material providing stable infrared emission. Beam angle of 24° and half intensity angle of 12° for focused IR output. Complies with JEDEC standards ensuring quality and reliability. Packaged in bulk for high volume manufacturing process integration.

Ideal for remote control systems, encoders, photointerrupters and punched tape readers. Explore more Vishay IR LEDs and other electronic components at EnvMart for your industrial and electronic applications.
