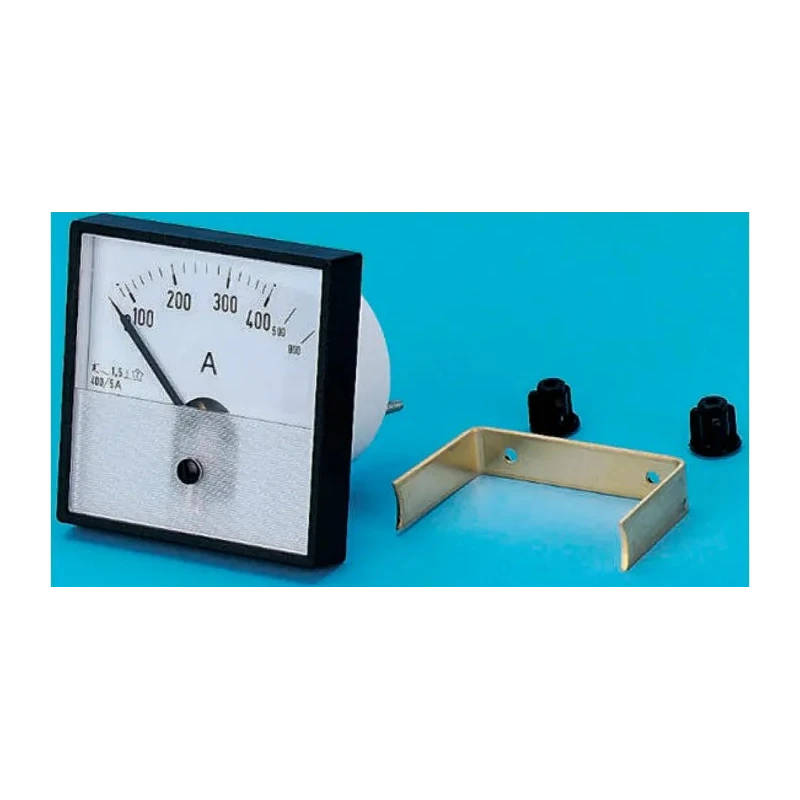

HOBUT Analogue Panel Ammeter 400 A AC Moving Iron, 72 mm x 72 mm PD72MIS5A2/2-001 0/200/400A
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | HOBUT |
| Model | PD72MIS5A2/2-001 0/200/400A |
| Depth | 30.5mm |
| Maximum Operating Temperature | 40°C |
| Current Type | AC |
| Minimum Operating Temperature | -25°C |
| Standards/Approvals | BS 89 IEC 51, UL 94 V-0 |
| Cutout Height | 72mm |
| Cutout Width | 72mm |
| Maximum Measurement | 400 A |
| Moving Element | Moving Iron |
| Maximum Ampere Value | 400 A |
| HOBUT CT153 Series Straight Through Current Transformer, 200 | 5, 26mm BoreBrand: HOBUT |
Key Features
- Designed for precise AC current measurement with a maximum range of 400 amperes.
- Features a moving iron mechanism for reliable analogue indication.
- Compact DIN size allows easy panel mounting with 72 mm by 72 mm cutout dimensions.
- Flame retardant case compliant with UL 94 V-0 for enhanced safety.
- Protection class IP52 on the front to safeguard against dust and dripping water.
- Single hole fixing with U clamp and anti-rotation pin ensures secure installation.
- Operates reliably within temperature range from -25°C to 40°C.
- Complies with BS 89 IEC 51 standards ensuring quality and accuracy class 1.5.
Product Description
HOBUT PD72MIS5A2/2-001 0/200/400A analogue panel ammeter provides accurate AC current measurement up to 400 amperes using a moving iron element within a compact 72 mm x 72 mm enclosure. This panel meter is widely used in industrial automation, process control, and panel building for monitoring electrical current safely and precisely.
The instrument features a horizontal 90° scale calibrated for direct connection up to 40 A, with overload capacity up to twice the rated current shown on the scale. Its flame retardant case meets UL 94 V-0 standards, offering enhanced safety in electrical panel environments. The front panel is protected by IP52 classification, guarding against dust entry and vertical water drips.
Installation is simplified via a single hole mounting using a U clamp and anti-rotation pin, complemented by supplied mounting brackets, ensuring stability and ease of use. The ammeter is designed to operate reliably within a temperature range from -25°C to 40°C, making it suitable for varied industrial environments.
This device complies with BS 89 IEC 51 standards and maintains an accuracy class of 1.5, providing trustworthy measurements in critical control and monitoring tasks. Its compact size and robust design make it an ideal choice for electrical distribution panels, control cabinets, and other industrial automation setups where monitoring AC current is essential.
Designed for precise AC current measurement with a maximum range of 400 amperes. Features a moving iron mechanism for reliable analogue indication. Compact DIN size allows easy panel mounting with 72 mm by 72 mm cutout dimensions.
Flame retardant case compliant with UL 94 V-0 for enhanced safety. Protection class IP52 on the front to safeguard against dust and dripping water. Single hole fixing with U clamp and anti-rotation pin ensures secure installation.
Operates reliably within temperature range from -25°C to 40°C. Complies with BS 89 IEC 51 standards ensuring quality and accuracy class 1.5. Supplied with mounting brackets included for convenience. Ideal for industrial automation and process control panel applications.
Explore more Panel Meters and instrumentation solutions at EnvMart for your industrial measurement needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can measure AC current up to a maximum of 400 amperes.
The cutout dimensions required for mounting this unit are 72 mm by 72 mm.
It utilizes a moving iron mechanism for reliable analogue indication of current.
The front panel has a protection class of IP52, which safeguards against dust and vertical water drips.
This unit operates reliably within a temperature range from -25°C to 40°C.
It complies with BS 89 IEC 51 standards and has a flame retardant case that meets UL 94 V-0 standards.
Installation is simplified with a single hole fixing using a U clamp and anti-rotation pin, along with supplied mounting brackets.
The depth of this model is 30.5 mm.
It maintains an accuracy class of 1.5, ensuring trustworthy measurements.
This ammeter is designed for measuring alternating current (AC).
It is widely used in industrial automation, process control, and panel building for monitoring electrical current.
The country of origin for this model is the United Kingdom.
