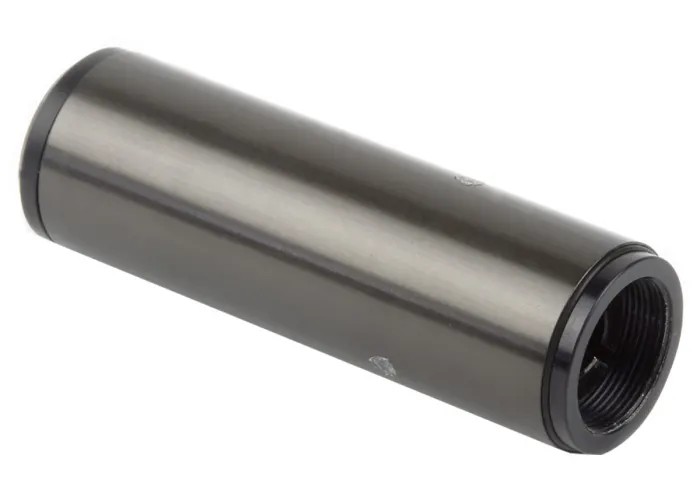

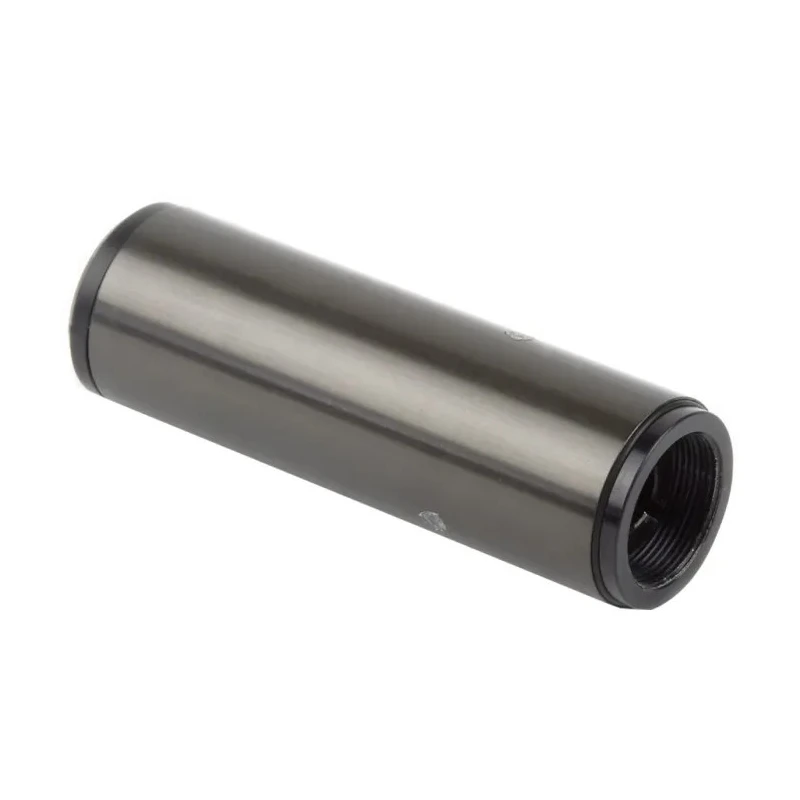

Global Laser High Visibility 520 nm Green Laser Module 35 mW PWM Control Modulating Dot Pattern 10V-30V 1421-92-000

Global Laser 1421-92-000 is a high-precision green laser module emitting at 520 nm wavelength with an optical output power of 35 mW. This modulating laser module supports pulse-width modulation (PWM) control, allowing precise intensity adjustments via a TTL control signal. It includes an enable signal for easy on/off switching, making it suitable for various industrial and scientific applications.

The module is designed with internal driver circuitry and protection features such as reverse polarity protection and an electrically isolated case, ensuring safety and reliability during operation. It features a dot emission pattern and achieves high bore sight accuracy with less than 1 milliradian deviation, facilitating accurate beam alignment.

Compact in form with dimensions of 47 mm length and 15 mm diameter, this laser module operates effectively within a supply voltage range of 10V to 30V and a supply current of 200 mA. Its operating temperature range of -10°C to 45°C ensures stable performance under various environmental conditions.

Classified as a Class 3B laser, it demands careful handling and adherence to safety guidelines, as specified by BS (EN) 60825 standards.

The Global Laser 1421-92-000 offers excellent beam quality, efficiency, and long operational lifetime. Its green laser output is highly visible, making it ideal for applications that require clear visual indication or precise targeting. The product’s standard of manufacture ensures quick and accurate initial setup.

Features a modulating laser with a precise dot emission pattern. Supports PWM intensity control via TTL input and enable signal. Equipped with an electrically isolated case and reverse polarity protection. Compact design with 47 mm length and 15 mm diameter.

High bore sight accuracy under 1 mRad facilitates precise alignment. Operating temperature range from -10°C to 45°C. Operates on a supply voltage range of 10 V to 30 V with 200 mA current. Class 3B laser classification with associated safety considerations.

Reliable performance suitable for industrial, laboratory, and scientific use. Explore more precision Laser Modules and optoelectronics components in the Electronics Components category available at EnvMart.
