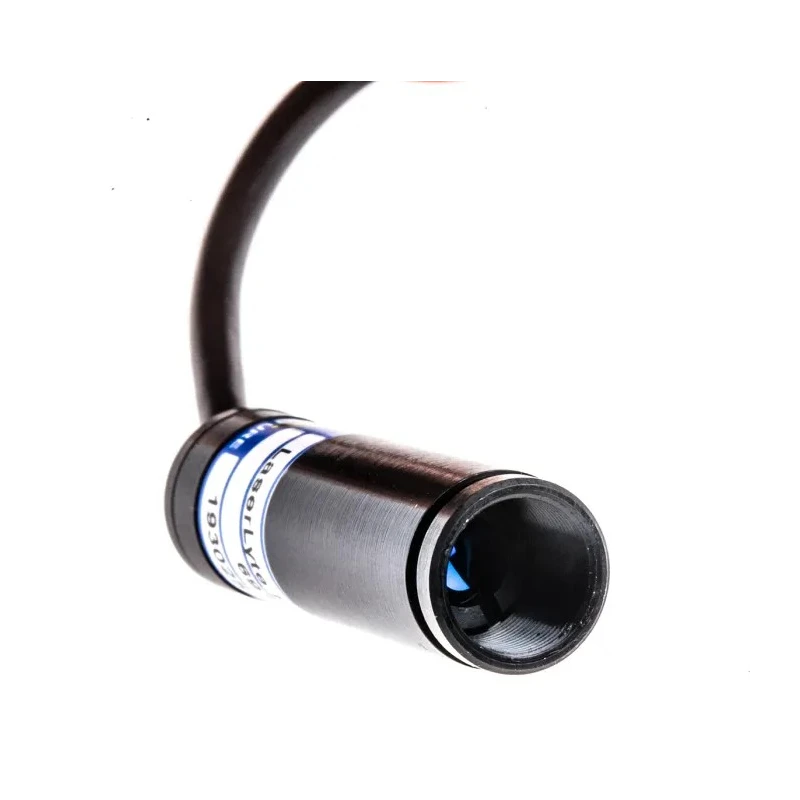

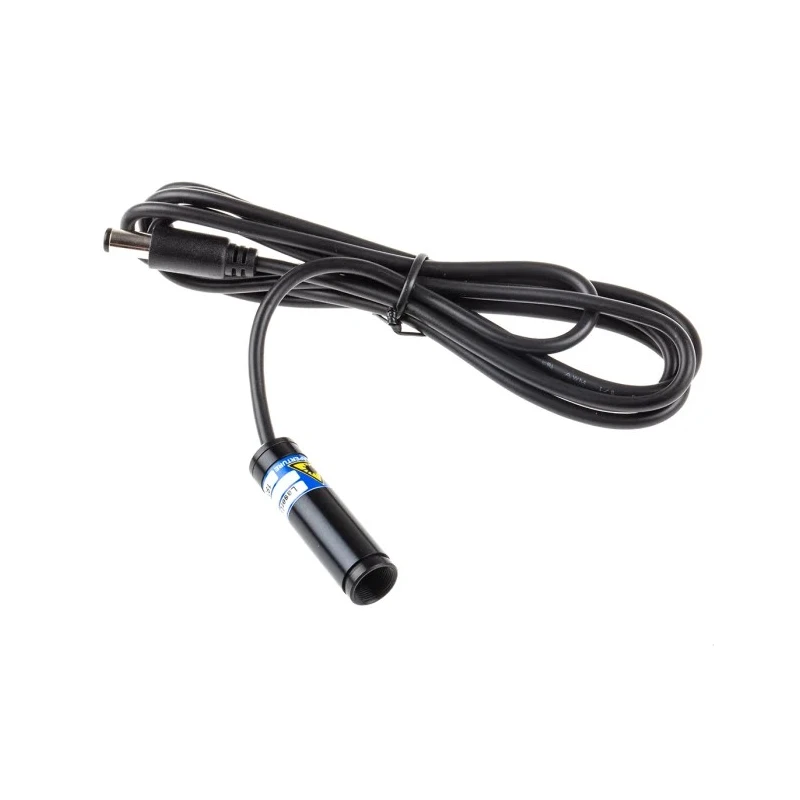

Global Laser 3117-10-000 Laser Module 635 nm 5 mW Continuous Wave Dot Pattern 5V

Global Laser 3117-10-000 Laser Module 635 nm 5 mW is a high-quality laser module designed for precise industrial and manufacturing uses. It features a continuous wave laser type with a red optical output at 635 nm wavelength, emitting a clear dot pattern ideal for accurate positioning and alignment tasks.

Housed in a black anodised aluminium body, the laser module offers durability and long service life. The unit operates on a maximum supply voltage of 5V and requires a supply current of 60 mA, ensuring efficient energy use.

The laser module is user-adjustable with a focus range from 6 mm to infinity, enhancing versatility for different application needs. It features a 1.5 m cable length to facilitate safe and tidy cable management within industrial setups. The operating temperature range from -10°C to 85°C allows it to perform reliably across a range of environments.

Classified as a Laser Class 3R device, it meets safety standards for low risk of eye damage when used properly. This module is part of the LaserLyte-Flex series and is manufactured in the United Kingdom, ensuring high quality and compliance with industrial standards.

Common applications include precision alignment on production lines, cutting guidance, positioning, and use in laboratory instrumentation. It is well-suited for sectors such as industrial manufacturing, laboratory research, robotics, and quality control processes.

Powered by a 5V supply for reliable operation. Uses a continuous wave laser type for consistent output. Delivers a powerful 5 mW optical output with a 635 nm red wavelength. Features a user-adjustable focus ranging from 6 mm to infinity.

Constructed with a black anodised aluminium body for durability. Compact 11 mm diameter and 42 mm length housing. Operates safely within a temperature range of -10°C to 85°C. Emits a dot pattern laser compliant with Class 3R safety standards.

Includes a 1.5 m cable for neat and safe cable management. Suitable for industrial, laboratory, manufacturing, and production line alignment applications. Explore more Laser Modules and components for your precision needs on EnvMart.
