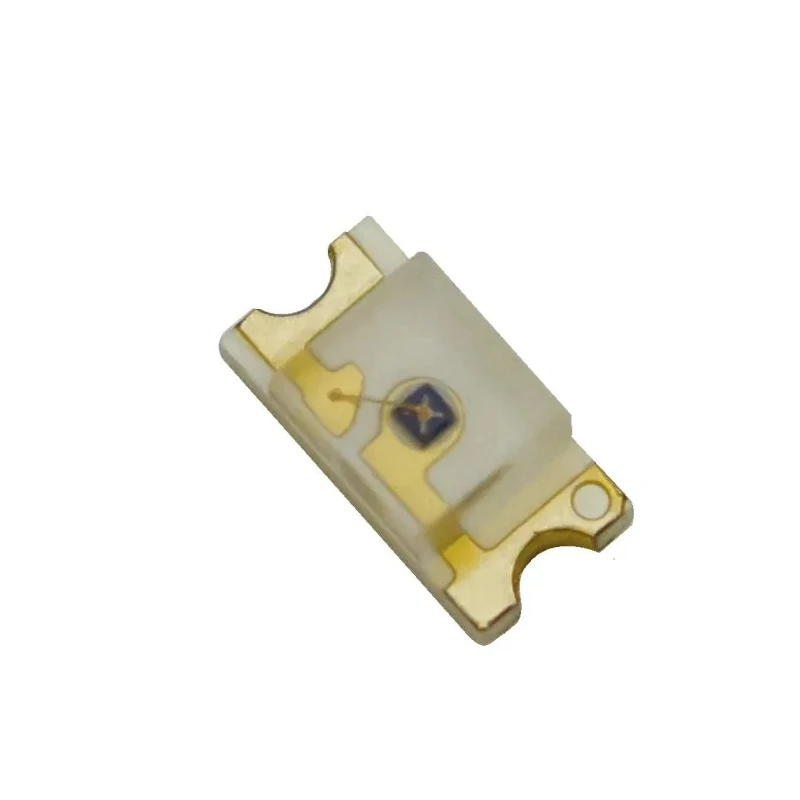

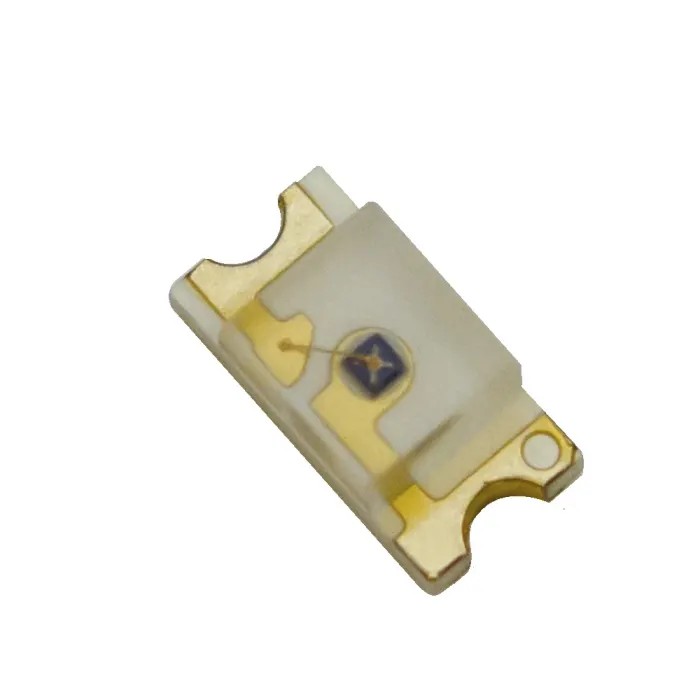

EPIGAP OSA Photonics 1550 nm IR LED Surface Mount 1206 Package OIS-150-1550p-X-T
Specifications
| Country of Origin | India |
|---|---|
| Size | 3.2mm x 1.6mm x 1.2mm |
| Brand | EPIGAP OSA Photonics |
| Model | OIS-150-1550p-X-T |
| Technology | GaP, AlInGaP, GaAlAs and InGaN |
| Packaging | Taped in 8 mm Blister Tape |
| Mount Type | Surface |
| Series | OIS-150 |
| Number Of Leds | 1 |
| Package Type | 1206 |
| Standards/Approvals | RoHs and Reach |
| Number of Pins | 2 |
| Lens Shape | Square |
| Peak Wavelength | 1550nm |
| LED Material | InGaN, GaAlAs, GaP, AlInGaP |
| Radiant Intensity | 0.27mW/sr |
| view angle | 140° |
| soldering pads | gold plated |
| circuit substrate | glass laminated epoxy |
| Lead free solderable, soldering pads | gold plated |
| taping | face-up(TU) or face-down(TD) possible |
Key Features
- Peak wavelength of 1550 nm suitable for IR applications.
- Packaged in a 1206 size surface mount form factor measuring 3.2 mm x 1.6 mm x 1.2 mm.
- Radiant intensity rated at 0.27 mW/sr for precise light emission.
- Features a square lens shape with a wide 140° viewing angle.
- Incorporates LED materials including InGaN, GaAlAs, GaP, and AlInGaP technology.
- Gold-plated soldering pads ensure reliable soldering and lead-free compliance.
- Mounted on a glass laminated epoxy circuit substrate compatible with SMT methods.
- Supplied taped in 8 mm blister tape for automated manufacturing processes.
Product Description
EPIGAP OSA Photonics OIS-150-1550p-X-T is a specialized infrared LED operating at a peak wavelength of 1550 nm. Packaged in the standard 1206 surface mount design measuring 3.2 mm length, 1.6 mm width, and 1.2 mm height, it is optimized for various electronic and photonics applications requiring near-infrared light emission.
This IR LED delivers a radiant intensity of 0.27 mW/sr and features a square lens shape with a wide 140° viewing angle, enabling efficient light dispersion and stable output performance. The device incorporates a combination of advanced LED materials such as InGaN, GaAlAs, GaP, and AlInGaP, providing high brightness and spectral accuracy for precision sensing and illumination.
The robust design includes gold-plated soldering pads that facilitate lead-free soldering and ensure strong mechanical and electrical connections on glass laminated epoxy circuit substrates. Its packaging on 8 mm blister tapes supports compatibility with automated SMT assembly lines, enhancing production efficiency and reducing handling risks.
It is not certified for automotive standards but is suitable for a wide range of commercial and manufacturing uses. High brightness infrared LED emitting at 1550 nm wavelength. Standard 1206 surface mount package suitable for SMT production.
Wide 140° viewing angle for broad light dispersion. Gold-plated, lead-free soldering pads for reliable mounting. Glass laminated epoxy substrate enhances durability and performance. Taped packaging compatible with automated assembly lines.
Multi-material LED composition for enhanced light output. Complies with environmental safety standards RoHS and REACH.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak wavelength of this infrared LED is 1550 nm, making it suitable for various IR applications.
This model has dimensions of 3.2 mm in length, 1.6 mm in width, and 1.2 mm in height, packaged in a 1206 surface mount design.
The radiant intensity of this infrared LED is rated at 0.27 mW/sr, which contributes to its effective light emission.
It features a wide viewing angle of 140°, allowing for broad light dispersion.
The LED incorporates a combination of materials including InGaN, GaAlAs, GaP, and AlInGaP for enhanced light output.
It is supplied taped in 8 mm blister tape, which is compatible with automated SMT assembly processes.
This model has 2 pins, which are gold-plated to ensure reliable soldering.
It is mounted on a glass laminated epoxy circuit substrate, which enhances durability and performance.
Yes, it complies with environmental safety standards RoHS and REACH, ensuring it meets regulatory requirements.
The mount type for this model is surface mount, which is suitable for SMT production methods.
The LED features a square lens shape, which aids in efficient light dispersion.
This infrared LED is part of the OIS-150 series, designed for various electronic and photonics applications.
