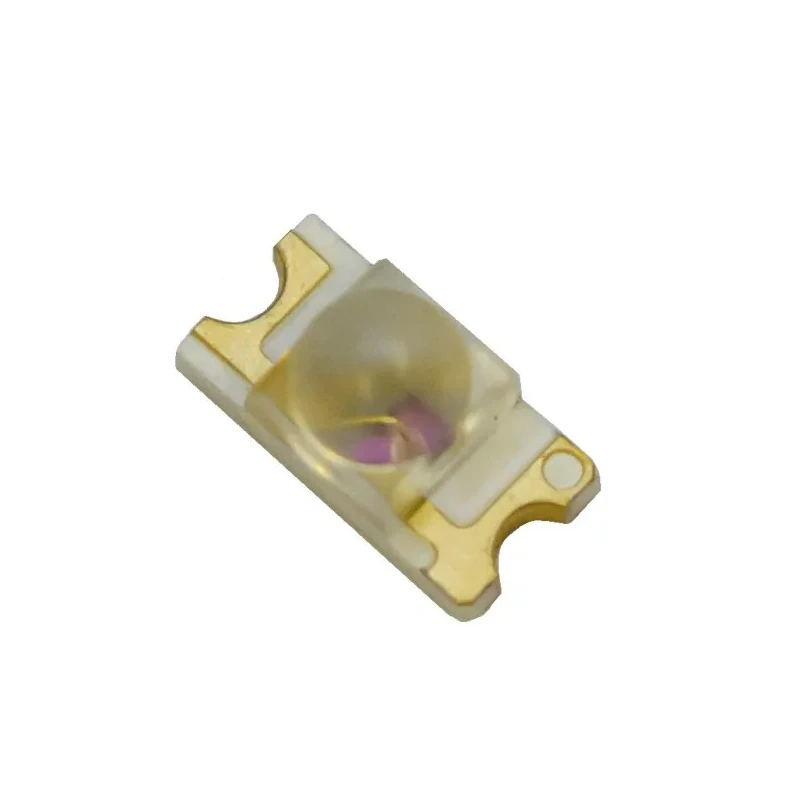

EPIGAP OSA Photonics IR LED 740 nm 1206 Surface Package OIS-330-740-X-TU

EPIGAP OSA Photonics OIS-330-740-X-TU is a high performance infrared (IR) LED with a peak wavelength of 740 nm designed for precision applications requiring reliable infrared illumination. Housed in a standard 1206 surface mount package, this LED is engineered using advanced semiconductor materials including AlInGaP, GaP, GaAlAs, and InGaN, delivering high radiant intensity of 8 mW/sr with stable output.

The device features a dome-shaped lens which provides a 40° viewing angle, allowing effective directional infrared light suitable for sensing, communication, and detection systems in electronics and optoelectronics industries. Operating at a maximum supply voltage of 2 volts, it maintains low power consumption, ideal for battery-powered and energy-conscious designs.

The LED is equipped with gold plated solder pads and a glass laminated epoxy circuit substrate to ensure excellent solderability and mechanical robustness for sophisticated surface mount technology (SMT) assembly methods. This product includes one LED, two pins, and is tape-packaged for efficient automated manufacturing workflows.

This IR LED is widely applicable in electronic components, power and connectors, displays, and optoelectronics sectors, serving industrial, laboratory, and communication applications requiring precise infrared light emission with compact form factor.

This IR LED has a radiant intensity of 8mW/sr providing strong infrared illumination. It uses a dome-shaped lens with a 40° viewing angle for focused light output. Operates at a maximum supply voltage of 2V ensuring low power consumption.

Constructed with gold plated soldering pads for reliable surface mounting. The compact 1206 package measures 3.2 mm x 1.6 mm x 1.9 mm, suitable for various SMT assemblies. Contains one LED per device with two electrical pins for connectivity.

Uses a glass laminated epoxy circuit substrate enhancing durability. Packaging includes tape with cathode orientation to transporting perforation optimized for automated assembly.

Choose EPIGAP OSA Photonics IR LEDs for dependable, high-quality infrared lighting components. Explore our catalog for a complete range of electronic LEDs and optoelectronic components.
