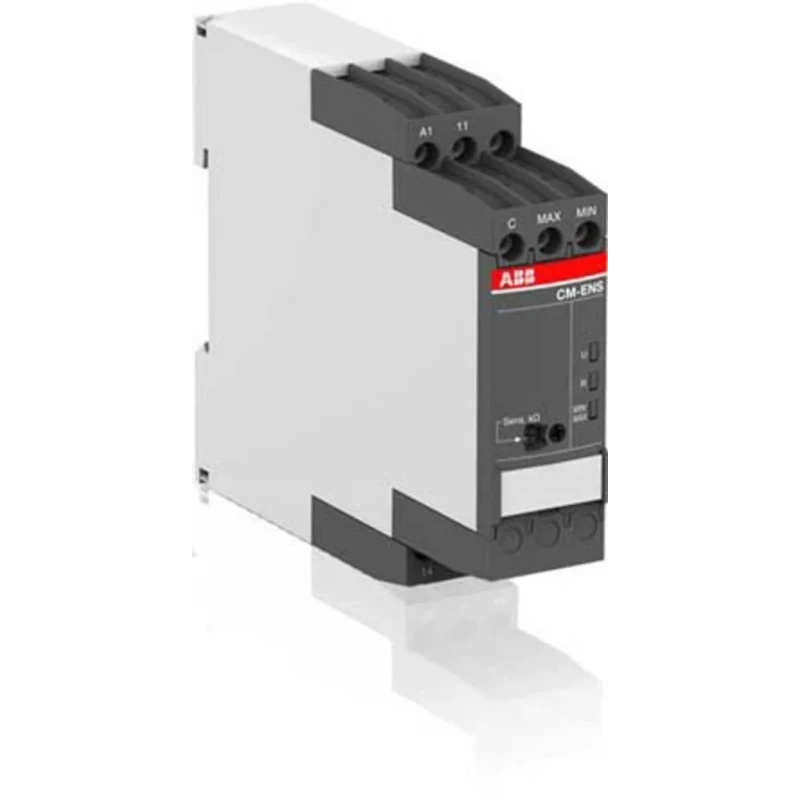

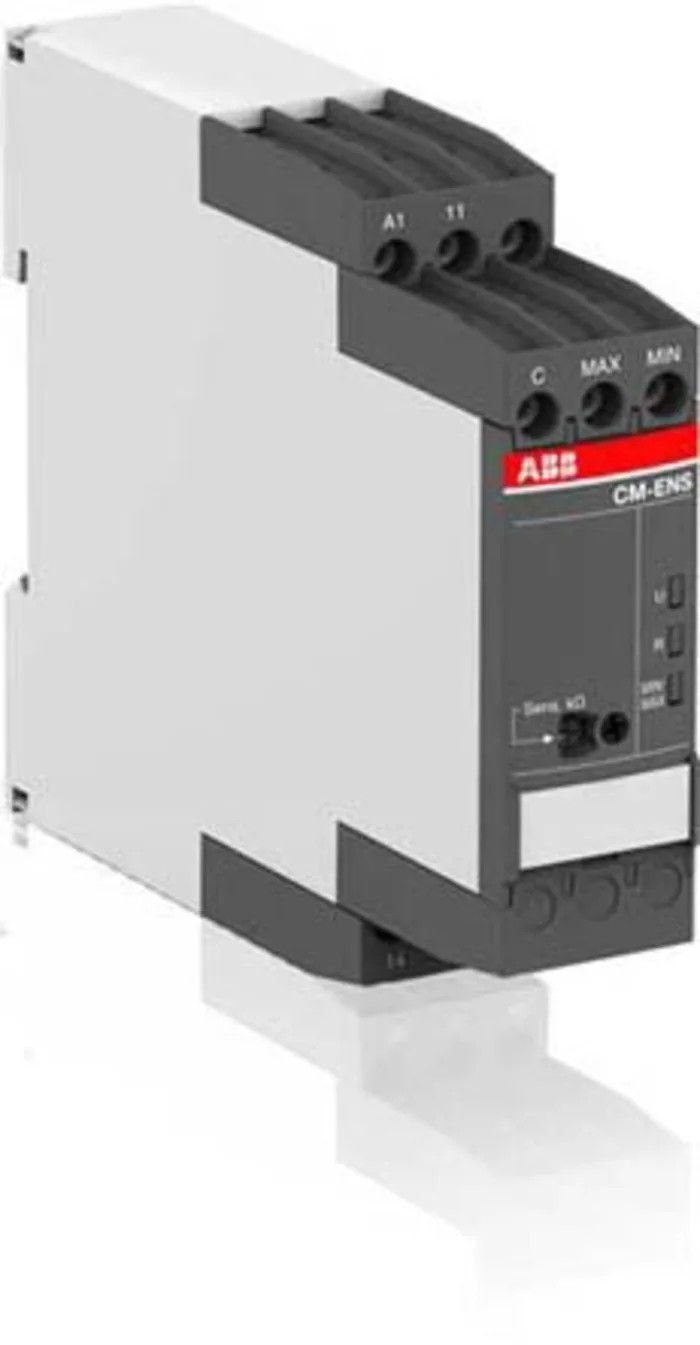

ABB CM-ENS Series Liquid Level Relay 1 Input 24V Probe Voltage DIN Rail Mount 240V AC Input 1 1SVR740850R2100 CM-ENS.13P

ABB 1SVR740850R2100 CM-ENS.13P Liquid Level Relay is engineered for precise control and monitoring of conductive liquid levels in industrial and commercial applications. It features a DIN Rail mount for convenient and tool-free installation, making it suitable for control panels where space efficiency is essential. The relay is powered by a 240V AC input and supports 1 input with a 24V probe voltage. It outputs through a single pole double throw (SPDT) relay contact rated at 8.5 mA, enabling reliable switching operations.

Constructed with environmentally friendly materials and designed to provide the highest fire protection, this relay meets rigorous international standards such as CAN/CSA C22.2 No.14, IEC/EN 60255-27, IEC/EN 60947-5-1, and UL 508, ensuring safe and dependable operation. The device is equipped with push-in terminals for quick wiring and front panel adjustments for easy sensitivity calibration. Its compact form factor with a width of 22.5 mm allows efficient use of panel space.

The relay operates reliably over a temperature range from -25°C to 60°C and carries an IP20 and IP50 rating, protecting it against solid foreign objects and limited dust ingress. These attributes make it ideal for applications such as dry running pump protection, overflow prevention, and precise liquid level monitoring in water treatment, chemical processing, and industrial manufacturing environments.

This product is manufactured in Germany, reflecting the high-quality standards associated with ABB's CM-ENS series liquid level control relays. The compact, versatile, and configurable design simplifies installation and operation for a variety of industrial control tasks.

Designed for conductive liquid level control with high fire protection and eco-friendly materials. Tool-free DIN Rail mounting with screw or push-in terminals for fast installation. Compact 22.5 mm housing width saves control panel space.

Adjustable sensitivity and front panel controls for tailored operation. Single SPDT output contact for dependable switching. Wide operating temperature range from -25°C to 60°C. IP20 and IP50 protection ratings for solid and dust ingress.

Complies with major international safety and quality standards. Applications include overflow protection, dry running pump safeguarding, and liquid level monitoring. Manufactured in Germany ensuring premium product quality.
