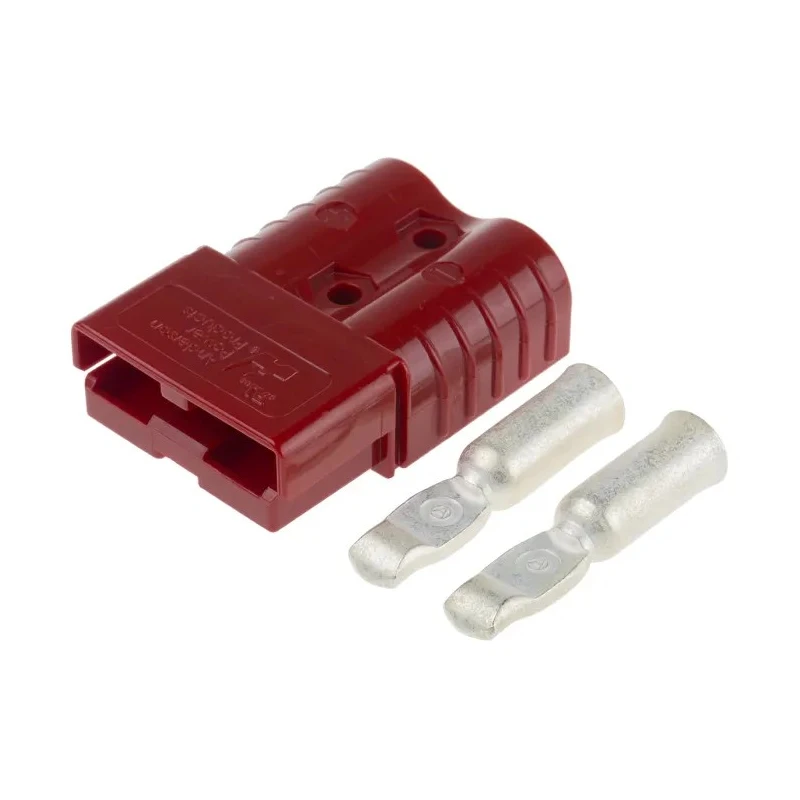

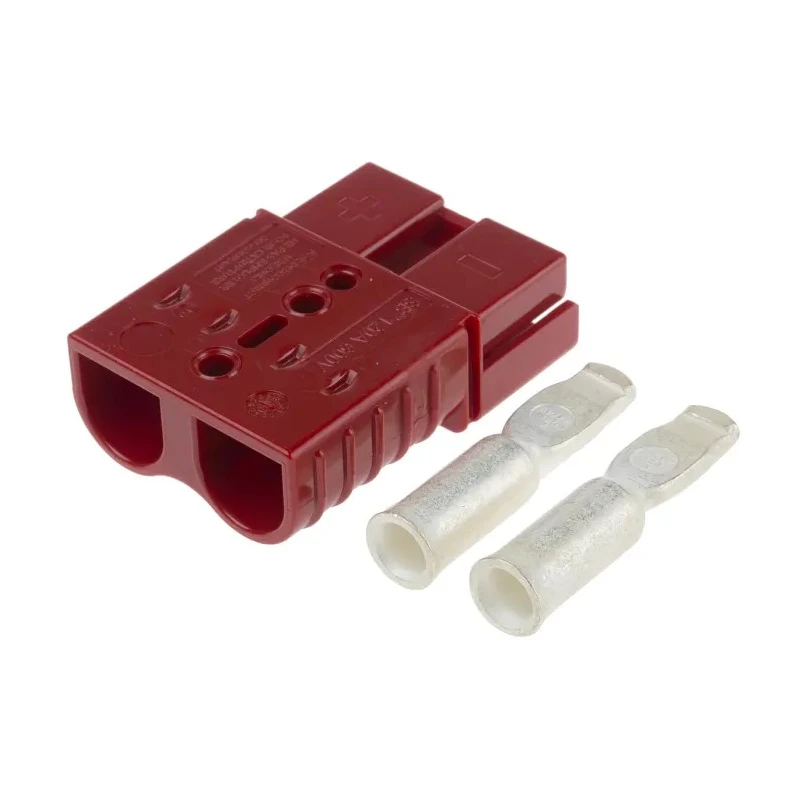

Anderson Power Products SB120 Series 2 Way Male Battery Connector, Straight, Cable Mount, 600V, 120A SB120

Anderson Power Products SB120 Series 2 Way Male Battery Connector SB120 is a high-quality battery connector designed for robust and reliable power delivery in electrical and industrial applications. It supports cable mounting with a straight orientation, rated at 600 volts and 120 amps, suited for both commercial and industrial sectors.

The connector features a durable polycarbonate housing that provides mechanical strength and resistance to environmental factors, ensuring longevity and stability in demanding conditions. The copper alloy contacts plated with silver deliver excellent electrical conductivity and corrosion resistance, critical for maintaining efficient power transfer.

This 2-contact male connector is part of the SB120 series that includes color-coded, mechanically keyed housings to prevent cross-mating with incompatible connections and help differentiate circuits easily, enhancing safety and operational reliability.

The device supports wire sizes ranging from #10 AWG (5.3 mm²) up to #1 AWG (42.4 mm²), making it versatile for various installation requirements. Its operating temperature range from -20°C to 105°C allows usage in challenging environments, including industrial, power distribution, and renewable energy sectors.

The connector uses solder termination, offering strong, durable electrical connections optimized for cable mounting applications. The SB120 series has recently been re-tested under UL standards and upgraded to support currents up to 240A, though the housing will temporarily still display the 120A rating until further notice.

The connector features a durable polycarbonate housing for enhanced protection. Utilizes copper alloy contacts plated with silver for excellent conductivity. Designed as a 2 contact male battery connector for secure connections.

Supports wire sizes from #10 (5.3 mm²) to #1 (42.4 mm²) to accommodate various cables. Operates reliably within a temperature range of -20°C to 105°C. Termination type is solder, ensuring stable and reliable connections.

Mechanically keyed to prevent incorrect mating and separate different circuits effectively. Tested under UL standards and upgraded to a 240A rating, while still marked as 120A.

This Battery Connector is ideal for industrial power systems, renewable energy installations, electric vehicles, and other applications requiring high current and voltage connections with reliable mechanical and electrical performance. Its UK origin guarantees compliance with stringent manufacturing standards.
