EMERSON ? ASCO Solenoid Valve 2 Port NC Brass Body 24V DC 10 Bar Max Pressure SCG238A046.24/DC

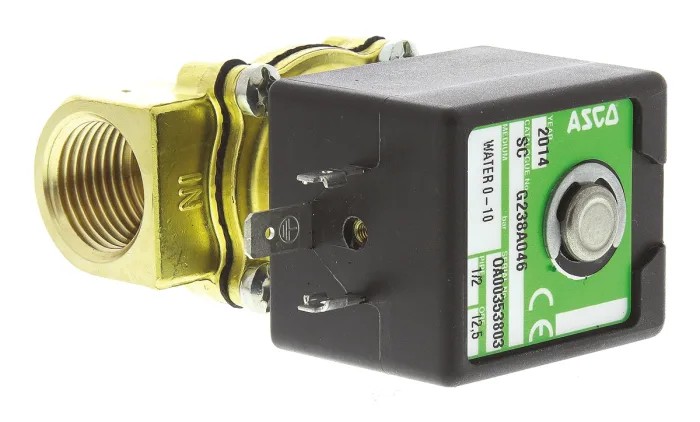

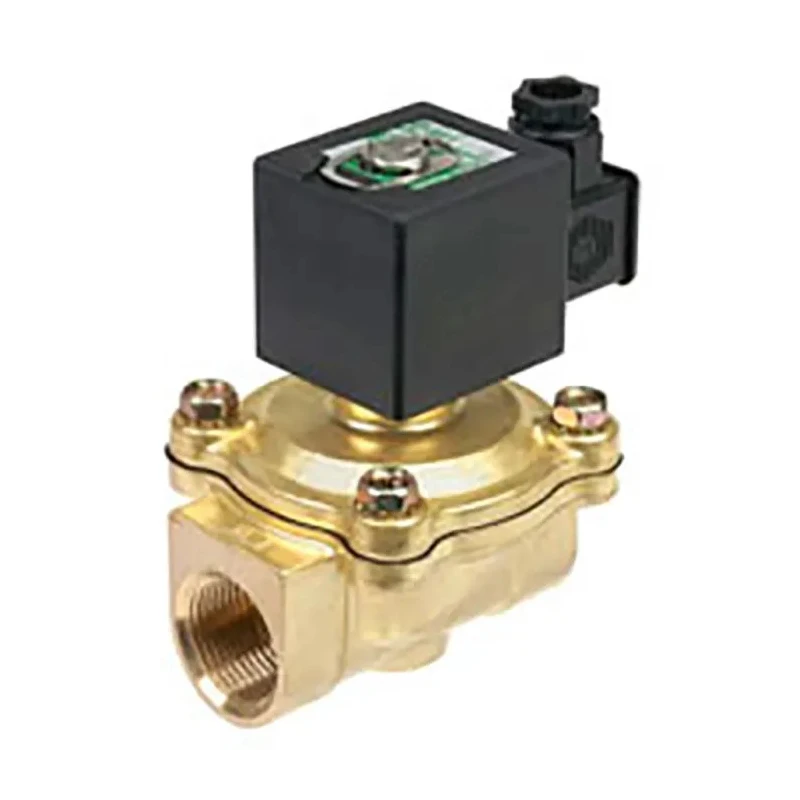

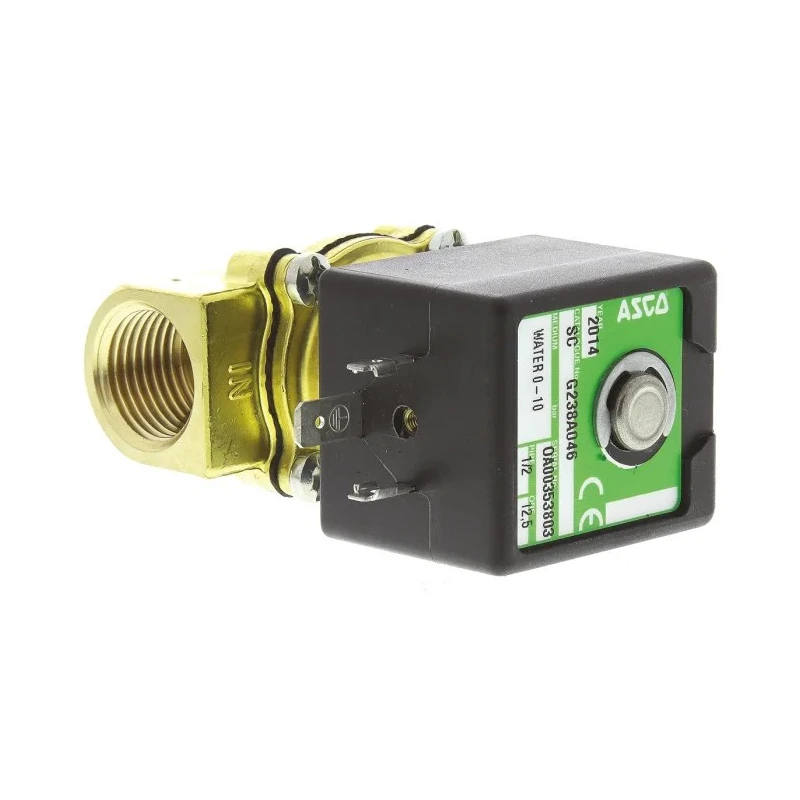

EMERSON ASCO SCG238A046.24/DC solenoid valve is a 2 port, normally closed (NC) valve featuring a durable brass body. It operates on a supply voltage of 24V DC and is capable of handling a maximum operating pressure of 10 bar, making it well-suited for water and fluid control applications in industrial and commercial settings.

This valve is part of the 238 series and includes power-assisted control technology with a floating diaphragm, which ensures reliable valve operation without the need for minimum control pressure. Its orifice diameter is 12.5 mm, providing efficient flow control with a flow factor Kv of 2.1 m³/h.

Its inlet connection follows the threaded standard G ISO 228/1, ensuring compatibility with common pipeline fittings. The valve supports a wide temperature operation range from -20°C to 85°C, allowing use in varied environmental conditions.

Certifications and standards compliance are comprehensive, including ISO 4400, EN 175301-803, IEC 335, FCI-82-1, WRAS approval, and EN 60730-2-8 (CENELEC), which guarantee quality and safety. Additionally, the valve holds EC and ATEX hazardous area certifications, confirming its suitability for use in potentially explosive atmospheres.

This solenoid valve is engineered to reduce water hammer effects when the water supply is turned off, improving system longevity and reducing noise. Its compact brass body combined with robust electrical and mechanical features makes it ideal for industrial automation, HVAC systems, water treatment, and other fluid control applications.

This valve has a 2-port design and is normally closed for controlled fluid flow. Operating voltage is 24V DC with power-assisted floating diaphragm technology. Maximum operating pressure is 10 bar suitable for industrial water systems.

Operates within a temperature range of -20°C to 85°C. Includes certifications: ISO 4400, EN 175301-803, IEC 335, FCI-82-1, WRAS, EN 60730-2-8, ATEX, and EC. Brass body material ensures durability and corrosion resistance.

Threaded G ISO 228/1 inlet connections for compatibility with standard fittings. Explore the extensive range of Solenoid Valves and industrial valves available at EnvMart for your industrial fluid control needs.
